High performance milling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2012
Grant Date -
Apr 8, 2010
app pub date -
Oct 7, 2009
filing date -
Oct 7, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

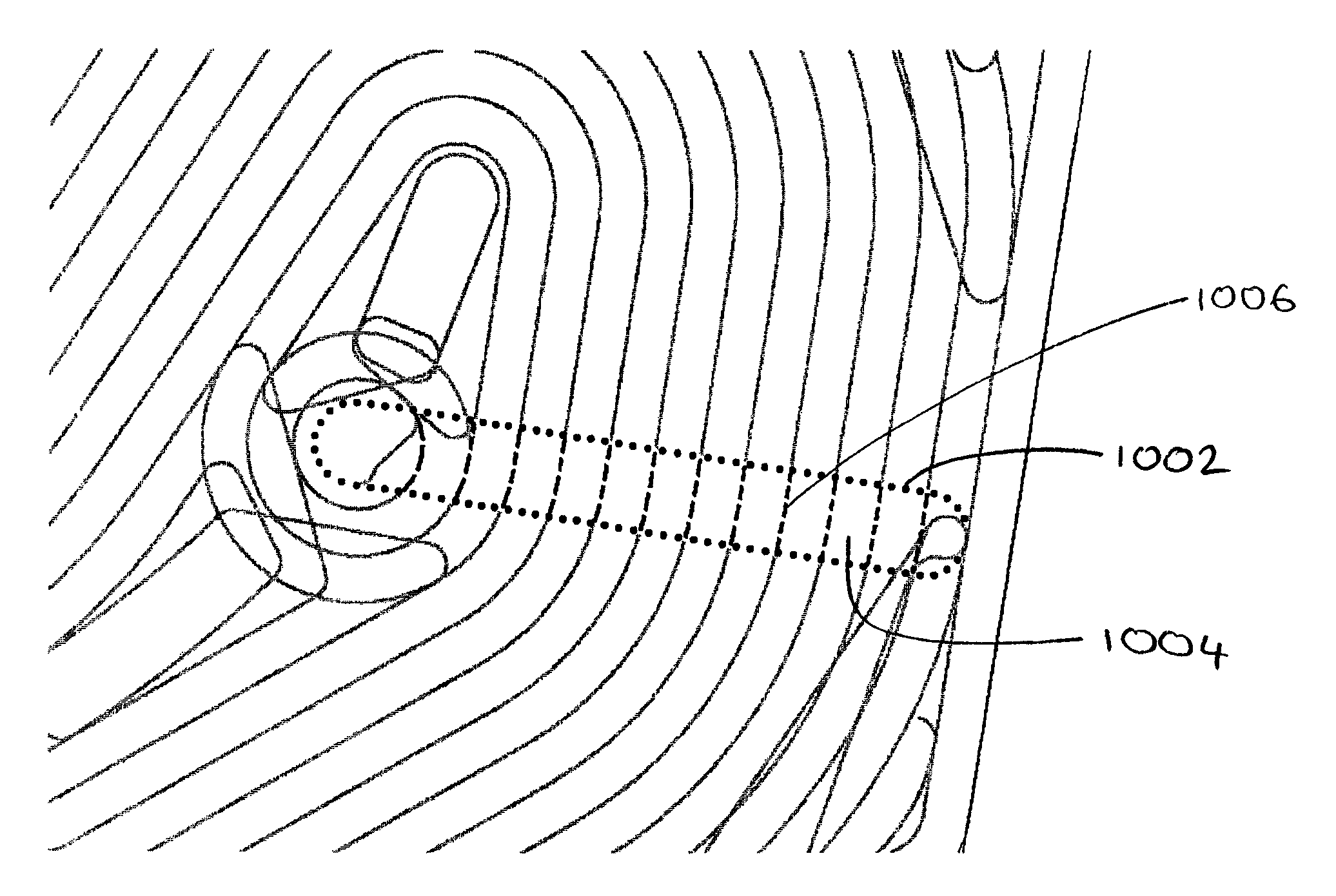

Technology for milling selected portions of a workpiece by a cutting tool of a numerical control machine is described. The described technology can receive a main toolpath, the main toolpath comprising one or more cuts; compute one or more transition toolpaths, each transition toolpath defining a transition area intersecting one or more of the cuts of the main toolpath; trim one or more cuts of the main toolpath near two or more points of intersection between the main toolpath and the transition toolpaths; connect the trimmed portions of the main toolpath with one or more connecting moves such that each connecting move is mostly inside one or more of the transition areas; and mill the selected portions of the workpiece by moving the cutting tool in accordance with the cuts, transition toolpaths, trimmed cuts, and connecting moves.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 29 Citation Count
- G05B Class
- 76.75 % this patent is cited more than
- 13 Age
