Color filter with optical transmissive step-forming layer and its manufacturing method, and a liquid crystal display device using the color filter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2012
Grant Date -
Feb 7, 2008
app pub date -
Jul 14, 2005
filing date -
Jul 16, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

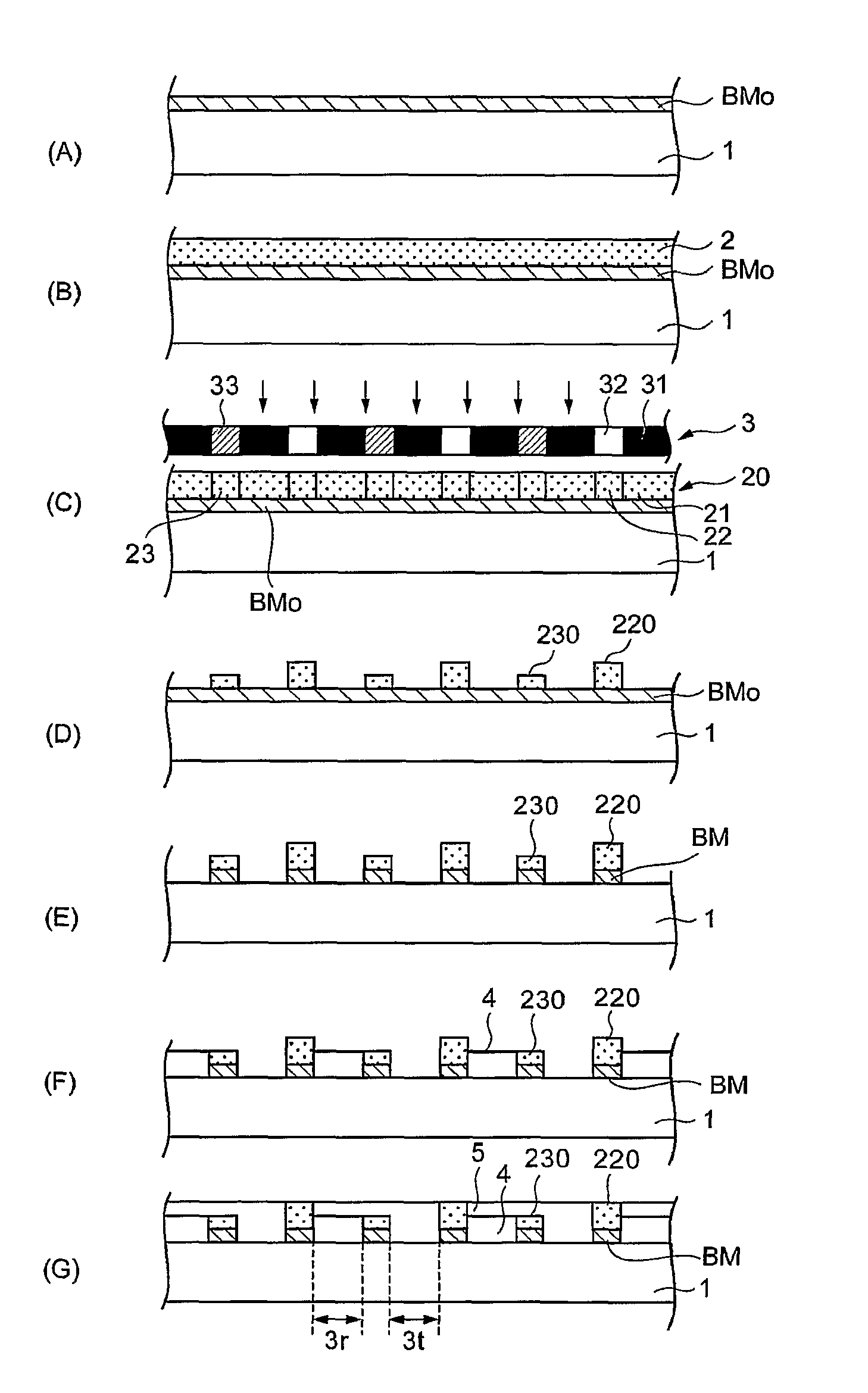

An object of the invention is to accurately and easily manufacture a color filter. A method of manufacturing a color filter comprises: a first step of forming a first rib (220) forming a light shield layer and a second rib (230) having a smaller height than the first rib (220) in pattern on a base layer (1) by means of a photolithography method; a second step of forming a step-forming layer (4) by dripping an optical transmissive material into an area defined by the first and second ribs (220, 230) by means of ink-jet technique; and a third step of forming a coloring layer by dripping an optical coloring material (5) into an area defined by the first rib (220) by means of ink-jet technique after forming the step-forming layer (4).
