Parallel processing of object subtrees for multiprocessor systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2012
Grant Date -
N/A
app pub date -
Apr 14, 2008
filing date -
Mar 31, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

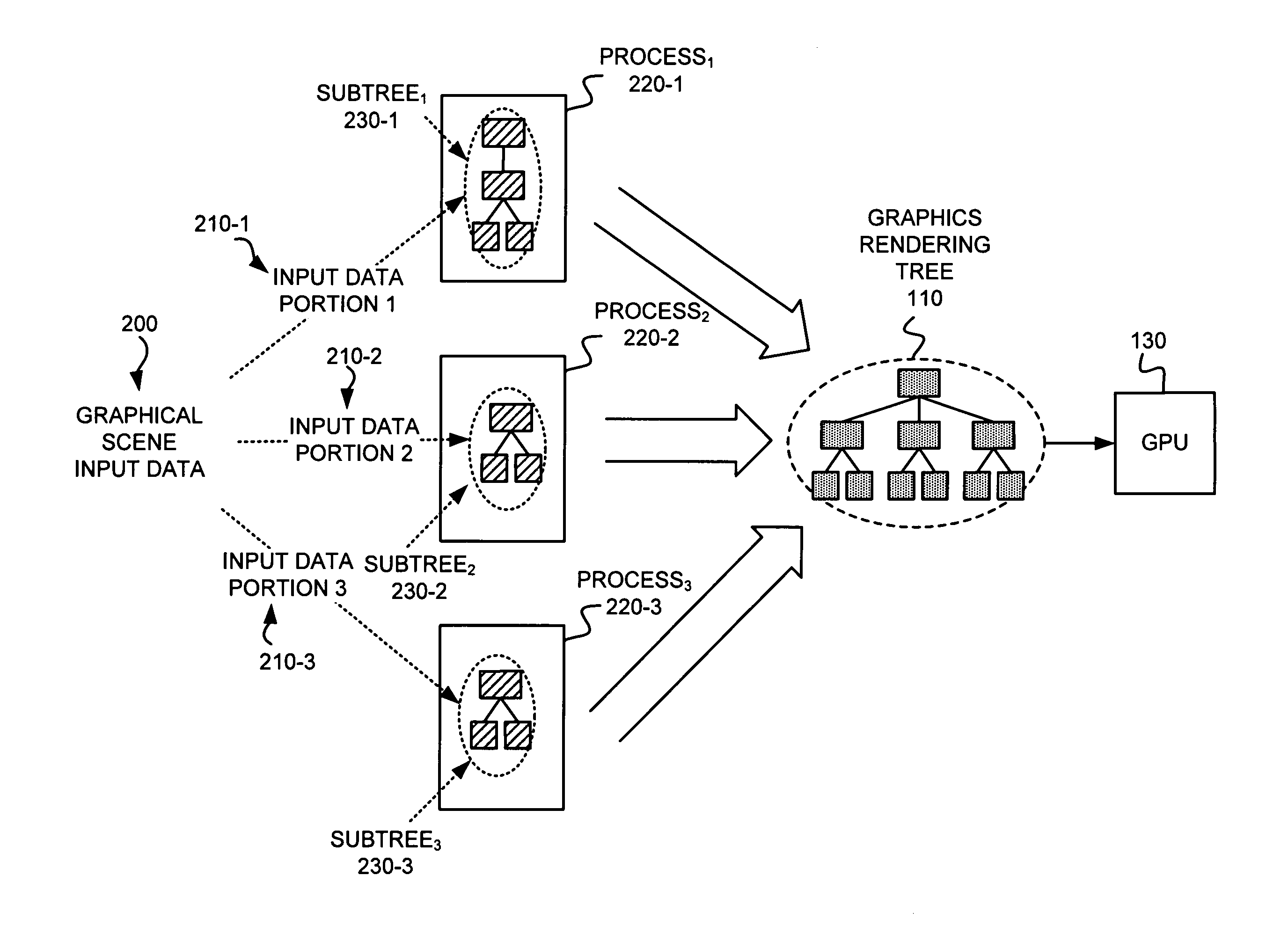

A method implemented by one or more computers may include receiving data for graphical rendering and distributing a first portion of the data to a first computation process. The method may further include distributing a second portion of the data to a second computation process, where the second computation process is different than the first computation process, creating a first object subtree via the first computation process based on the first portion of the data, and creating a second object subtree via the second computation process based on the second portion of the data. The method may further also include assembling an object tree via a third computation process based on the first object subtree and the second object subtree and rendering a graphical scene based on the assembled object tree.
First Claim
Other Claims data not available
