Large-sized bismuth-zinc-borate nonlinear optical crystal and preparation methods and applications thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2012
Grant Date -
Oct 22, 2009
app pub date -
Apr 8, 2009
filing date -
Apr 17, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

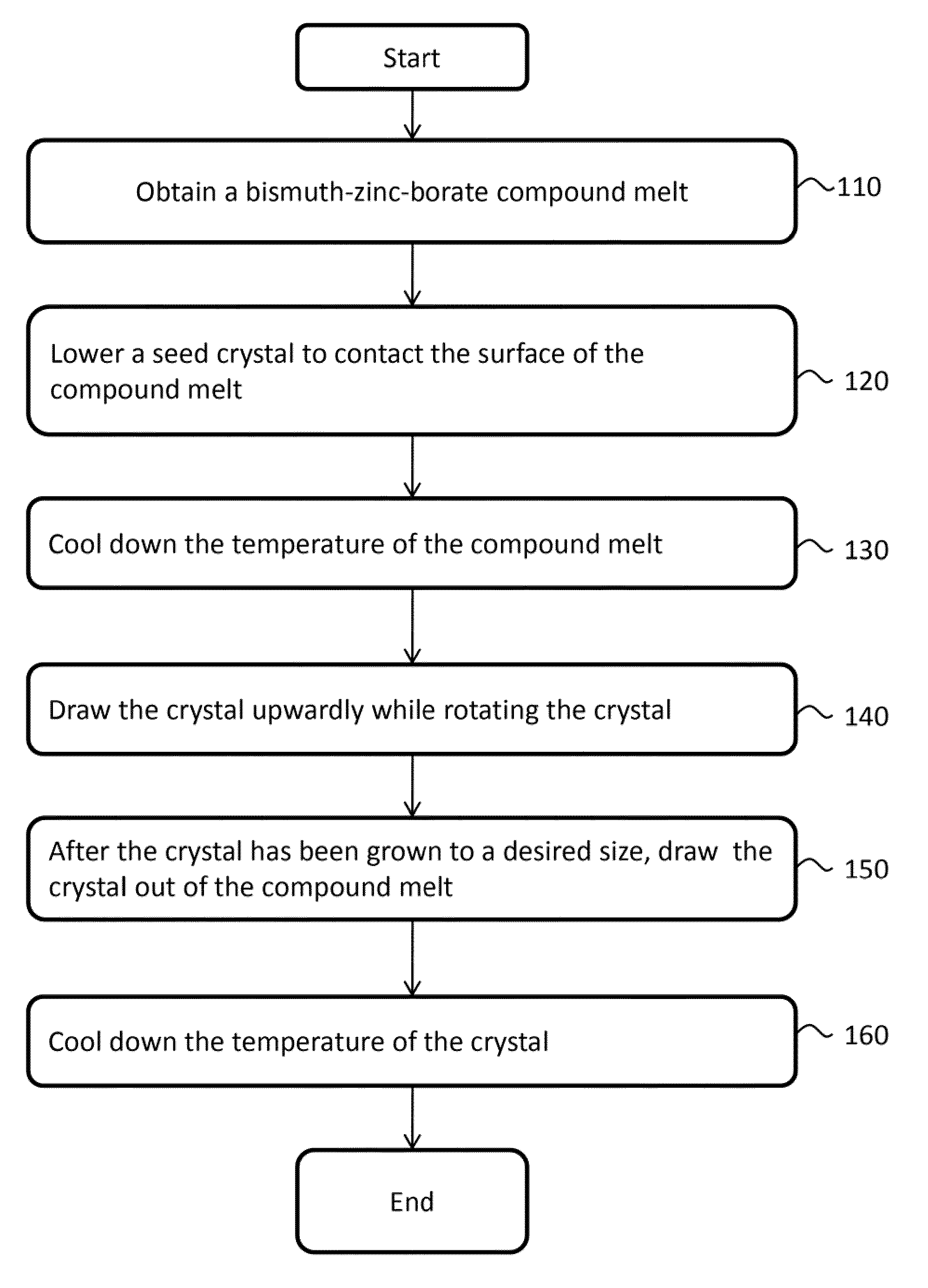

The present invention relates to a large-sized and high-quality bismuth-zinc-borate (Bi.sub.2 ZnB.sub.2 O.sub.7) single crystal, preparation methods and applications thereof. The crystal has cross-sectional dimensions greater than one centimeter, a nonlinear optical effect of about 3-4 times that of KH.sub.2 PO.sub.4 (KDP), and an optical transmission wavelength range of 330-3300 nm. The crystal can be grown from a compound melt by a Czochralski method, a Kyropoulos method or a Bridgman method with the raw material being the synthetic compound Bi.sub.2 ZnB.sub.2 O.sub.7. Alternatively, the crystal may be grown from a high-temperature solution method by using Bi.sub.2 O.sub.3 as a flux. The crystal may be applied in nonlinear optical devices such as frequency doubling generators, frequency upconverters or downconverters, and optical parametric oscillators.
First Claim
Other Claims data not available
