Shower saddle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2012
Grant Date -
Mar 17, 2011
app pub date -
Sep 16, 2009
filing date -
Sep 16, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

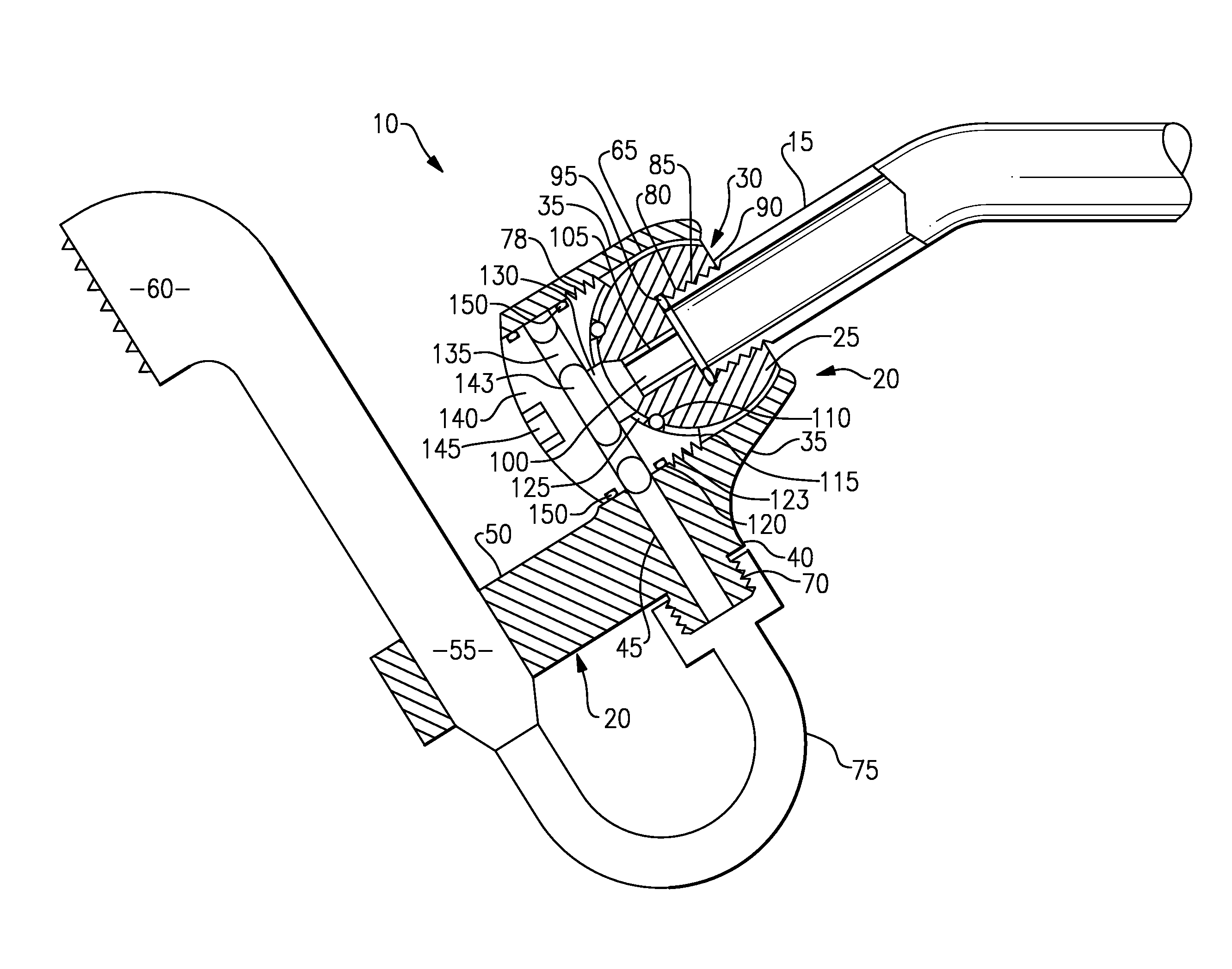

The present invention is an adjustable shower saddle that connects a water supply to a shower. The saddle has: an anchor for attaching to the water supply, the anchor having an inner contour for attaching to the water supply and an outer contour that corresponds to a multi-dimensional range of motion that may be taken by the saddle, and a conduit for conducting fluid; a bracket that has an outlet, a second conduit attaching to the outlet and, an interior surface conforming to the shape of the outer contour of the anchor; and, a lock member having a third conduit for conducting fluid from the first conduit to the second conduit, wherein the lock member attaches the bracket to the anchor.
First Claim
Other Claims data not available
