Apparatus for microwave heating of planar products
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2012
Grant Date -
Mar 11, 2010
app pub date -
Sep 4, 2009
filing date -
Sep 11, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

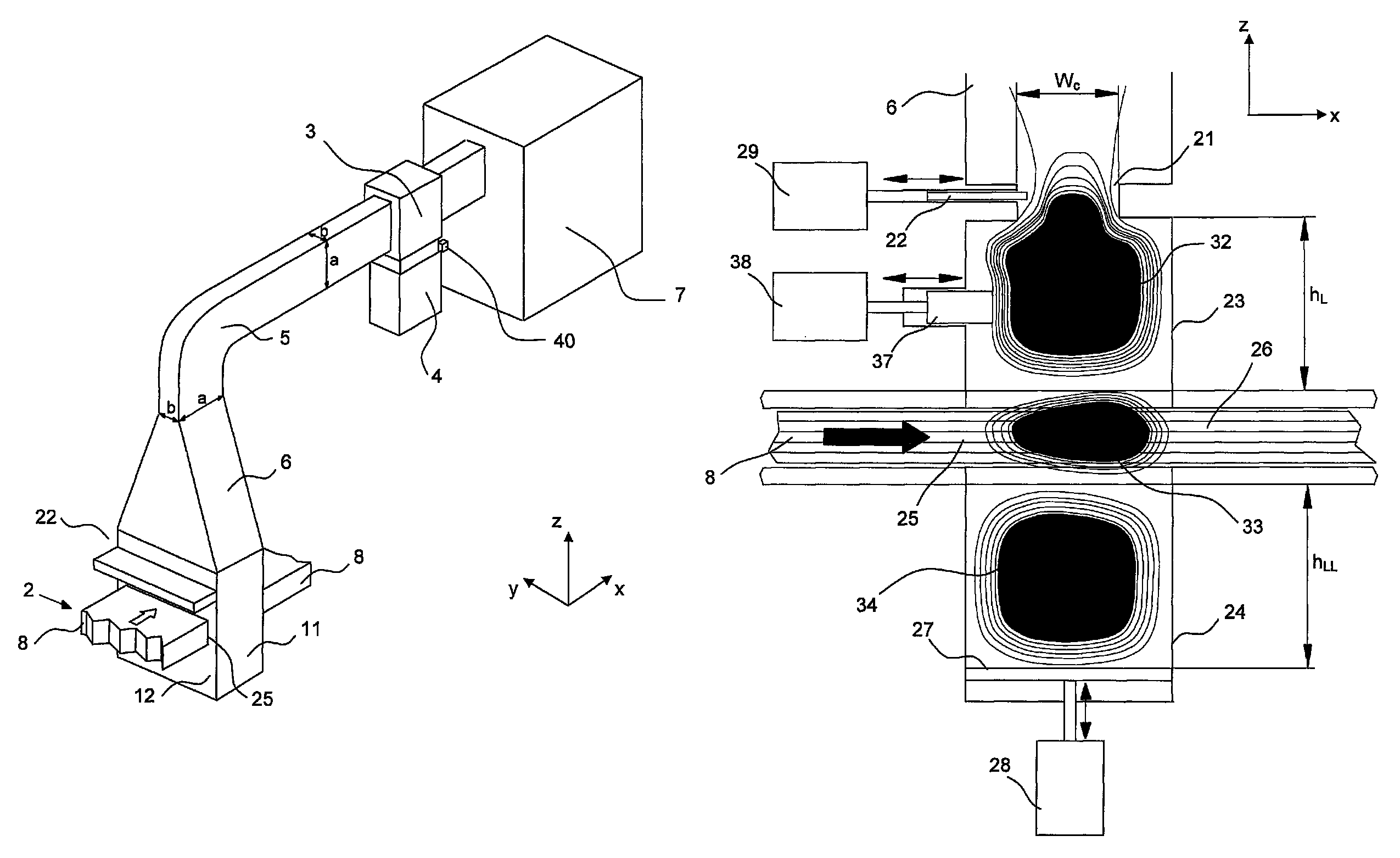

In a microwave heating apparatus, the fundamental TE10 mode of the standard waveguide (5) having a standard rectangular cross-section is fed into an elongated heating cavity (2) having an enlarged rectangular cross-section in which the shorter side of the standard waveguide is enlarged to a length which can accommodate the desired width of a board (8) to be heated. A pair of lateral slots (25) is provided parallel in the opposite enlarged walls (11) of the heating cavity (2) to form a track for the board (8) to travel across the cavity. As the initially longer sidewall (11) of the standard waveguide is unchanged, the fundamental mode is not affected but the electric field is uniformly distributed along the width of the board (8) traversing the electric field and the cavity. As a result, wider products can be heated and a more uniform heating pattern can be achieved.
