Articulated combine with unloading and rear bogey steering architecture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2012
Grant Date -
Jun 18, 2009
app pub date -
Dec 18, 2007
filing date -
Dec 18, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

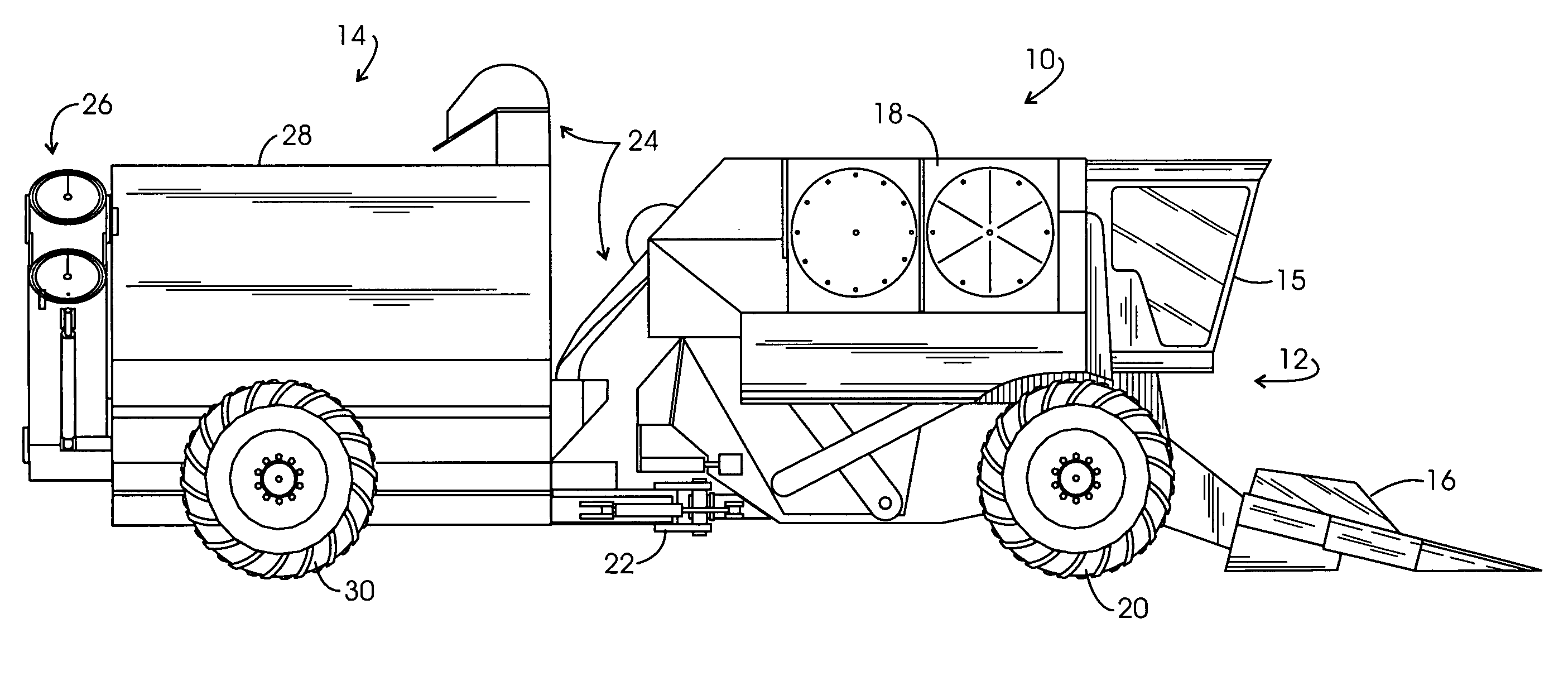

An articulated harvester is composed of a forward bogey having an operator's cab, an engine, a grain harvesting assembly, a grain transfer assembly, but being devoid of an on-board grain bin. A rearward bogey is attached by a joint to the forward bogey and has a powered wheel assembly, an on-board grain bin for receiving grain from the forward bogey grain transfer assembly, and a grain off-loading assembly. The improvement includes the rearward bogey having a powered wheel assembly of a powered stiff axle wheel assembly pivotable for steering the articulated harvester when the joint has articulated by a defined number of degrees. The joint may be connected to the rearward bogey powered stiff axle wheel assembly by a beam that has a second joint disposed ahead of the stiff axle and actuatable to crab the articulated harvester for grain unloading.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B62D Class
- 3.08 % this patent is cited more than
- 13 Age
