Compressor and/or expander device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2012
Grant Date -
Mar 17, 2011
app pub date -
May 21, 2010
filing date -
May 22, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

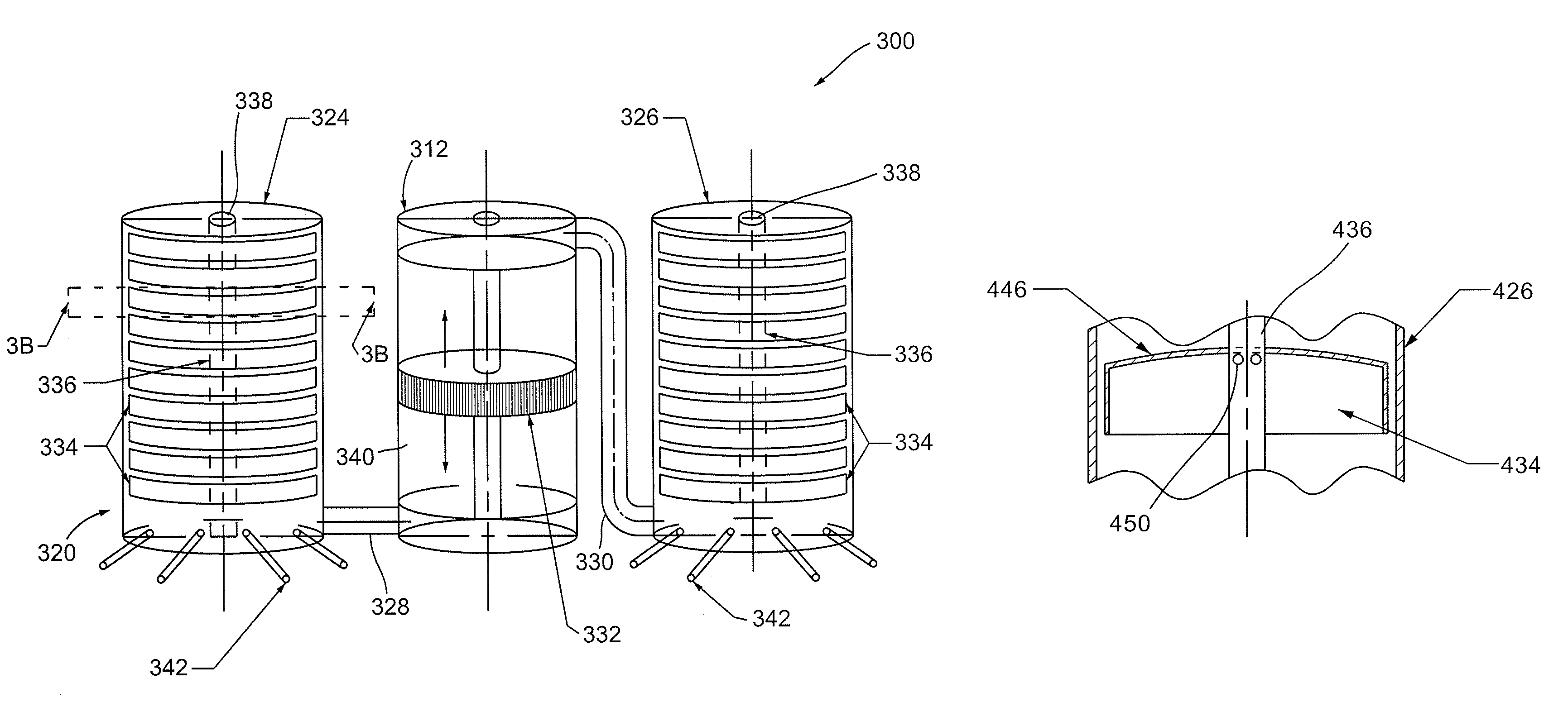

Systems and methods for operating a hydraulically actuated device/system are described herein. For example, systems and methods for the compression and/or expansion of gas can include at least one pressure vessel defining an interior region for retaining at least one of a volume of liquid or a volume of gas and an actuator coupled to and in fluid communication with the pressure vessel. The actuator can have a first mode of operation in which a volume of liquid disposed within the pressure vessel is moved to compress and move gas out of the pressure vessel. The actuator can have a second mode of operation in which a volume of liquid disposed within the pressure vessel is moved by an expanding gas entering the pressure vessel. The system can further include a heat transfer device configured to transfer heat to or from the at least one of a volume of liquid or a volume of gas retained by the pressure vessel.
First Claim
Other Claims data not available
