Device for actuating a locking member
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 9, 2012
Grant Date -
May 26, 2011
app pub date -
Jul 10, 2009
filing date -
Jul 11, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

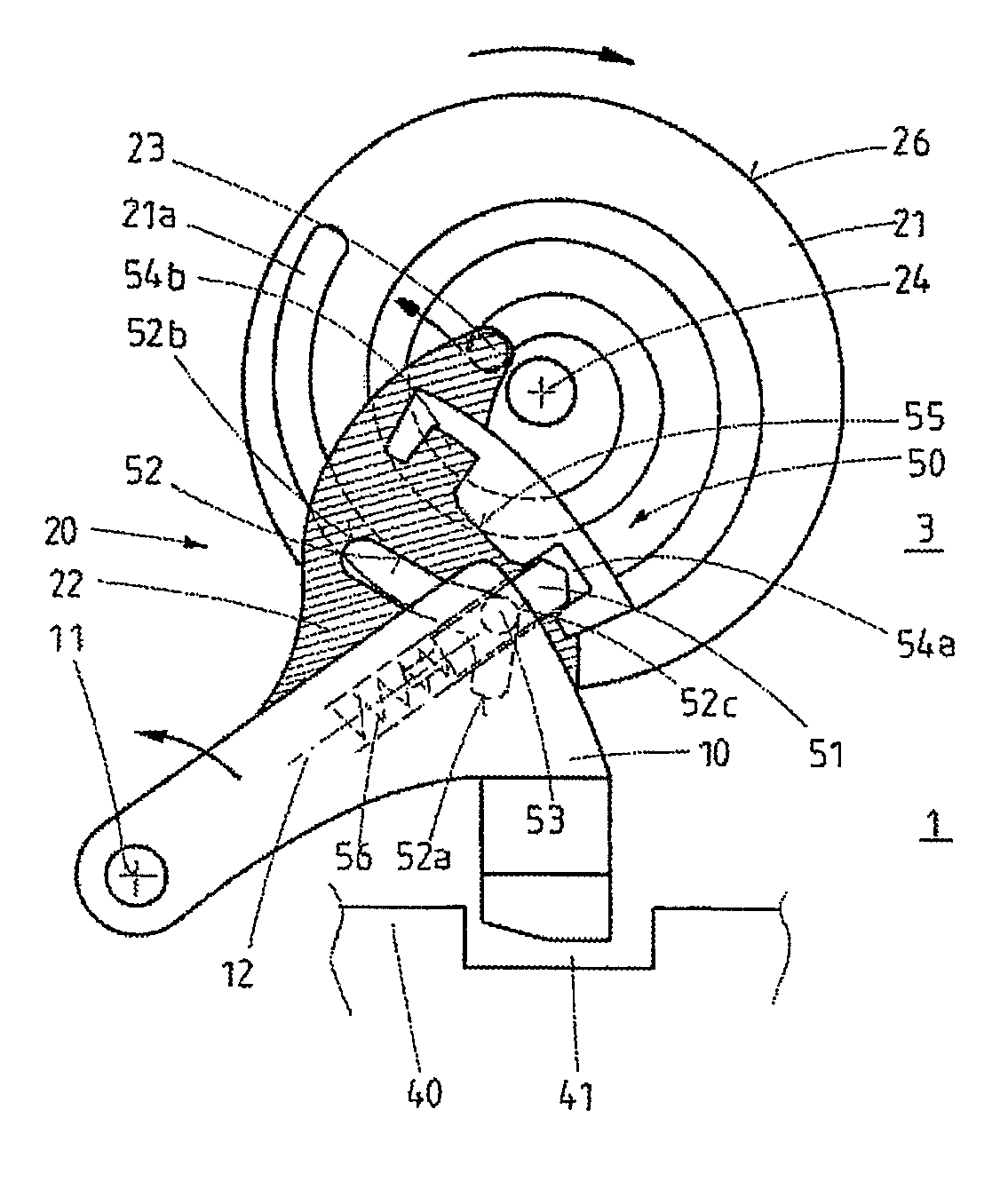

The invention relates to a device for actuating a locking member (10) of a functionally essential component (40), particularly a steering column (40) of a motor vehicle, having a gear box (20), being operatively connected to the locking member (10), wherein the locking member (10) can be moved into a locked position (1) and into a released position (2), and vice versa, wherein the locking member (10) engages into the functionally essential component (40) in the locked position (1), the locking member (10) is released from the functionally essential component (40) in the released position (2), an actuation device (30) is provided that can be accessed by a user, said actuation device being signal-connected to the gear box (20) during normal operation, by means of which an electronic actuation of the gear box (20) can be effected via an intentional actuation of the actuation device (30), said gear box moving the locking member (10) into the respective position (1, 2) thereof.
First Claim
Other Claims data not available
