Hinge for doors, windows, or the like
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 9, 2012
Grant Date -
Jun 10, 2010
app pub date -
Nov 24, 2009
filing date -
Dec 5, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

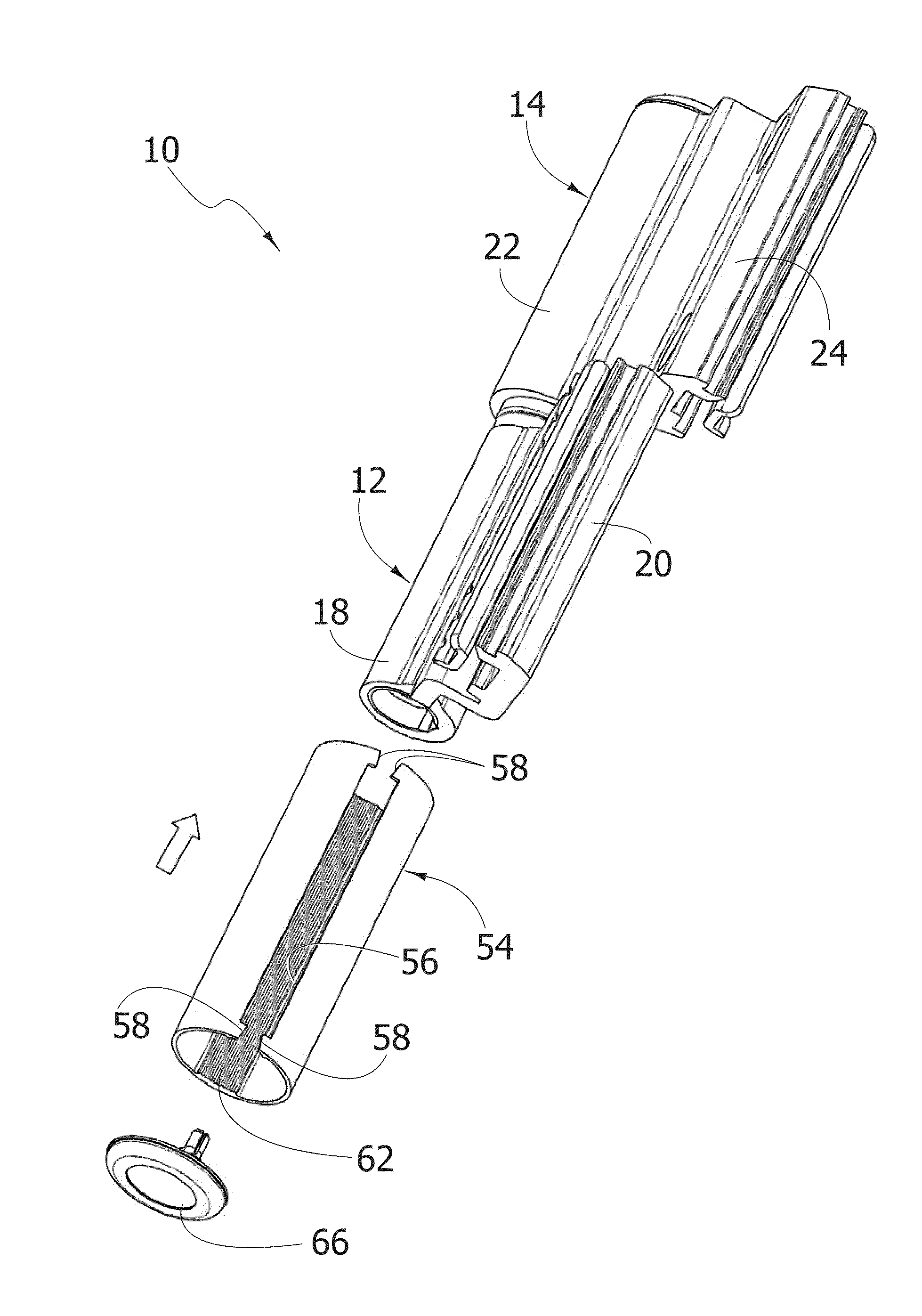

A hinge for doors, windows, or the like, comprising, a first hinge element and a second hinge element, which have, respectively, a first cylindrical articulation portion and a second cylindrical articulation portion, wherein the first articulation portion has an external diameter smaller than the external diameter of the second articulation portion; a hingepin, which defines a hinge axis; an adjustment device, which is associated to one of said articulation portions and can be actuated for displacing said hinge elements with respect to one another in a direction substantially transverse to said hinge axis; and a covering sleeve, provided externally to the first articulation portion and having an external diameter equal to the external diameter of said second articulation portion, wherein the covering sleeve is mounted so that it can turn with respect to the first articulation portion about an axis that is eccentric with respect to said hinge axis and can be displaced with respect to the first articulation portion in a direction substantially transverse to the hinge axis, the covering sleeve and the first hinge element being provided with toothings kept elastically in a condition of mutual engagement.
First Claim
Other Claims data not available
