Geographical data collecting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2012
Grant Date -
Sep 3, 2009
app pub date -
Feb 25, 2009
filing date -
Mar 3, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

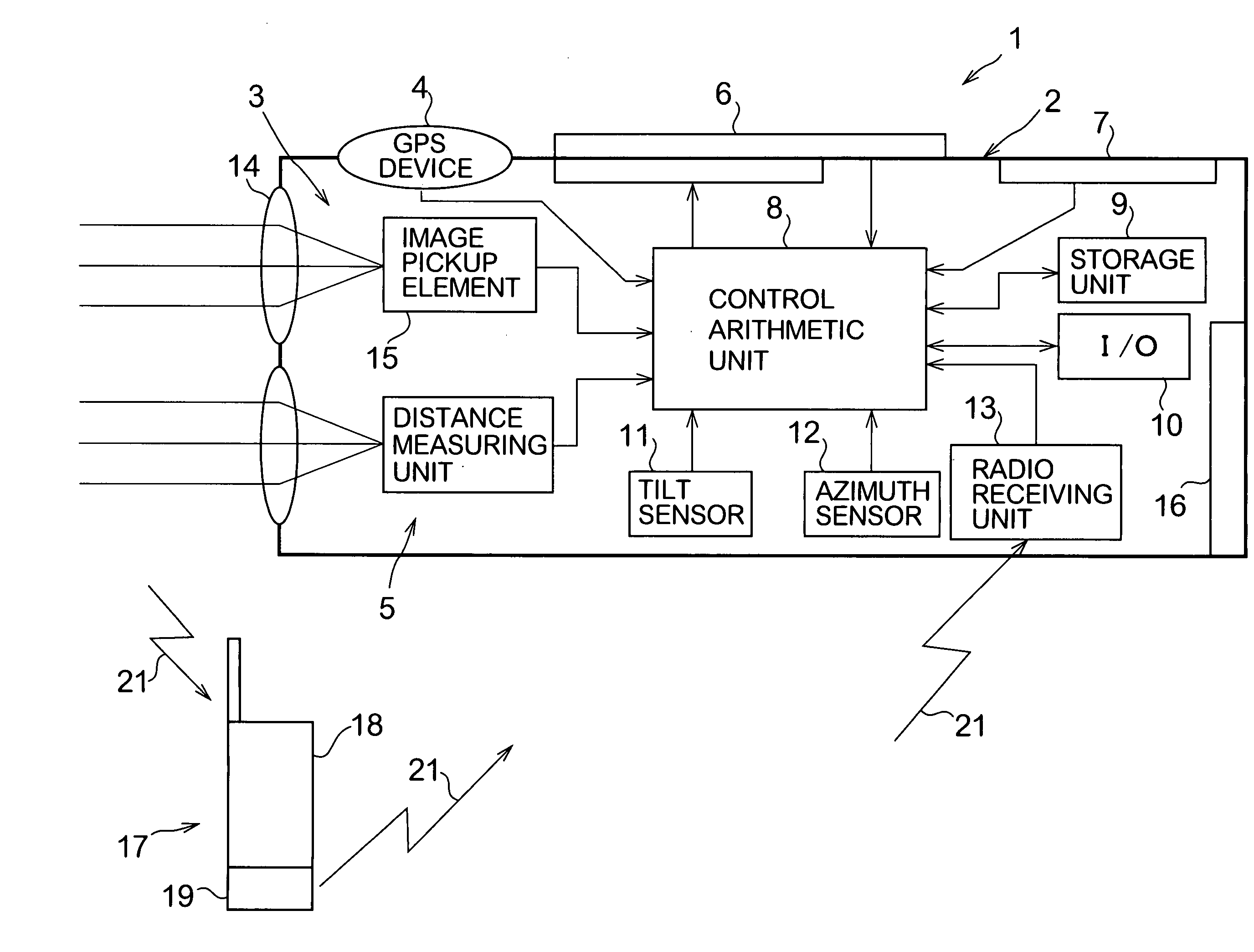

The present invention provides a geographical data collecting device, including a distance measuring unit 5 for projecting a distance measuring light and for measuring a distance to an object to be measured, an image pickup unit 3 for taking an image in a measuring direction, a display unit 6 for displaying an image picked up, a touch panel installed to match a position of screen of the display unit, a tilt sensor 11 for detecting a tilting in a measuring direction, an azimuth sensor 12 for detecting a horizontal angle in the measuring direction, and a control arithmetic unit 8, wherein the control arithmetic unit displays a scale to indicate horizontal and vertical lines on the display unit and controls the scale display so that the scale always indicates the horizontal and the vertical lines in the image based on a result of detection of tilting from the tilt sensor.
