Anode for an electrolytic capacitor that contains individual components connected by a refractory metal paste
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2012
Grant Date -
Dec 2, 2010
app pub date -
May 29, 2009
filing date -
May 29, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

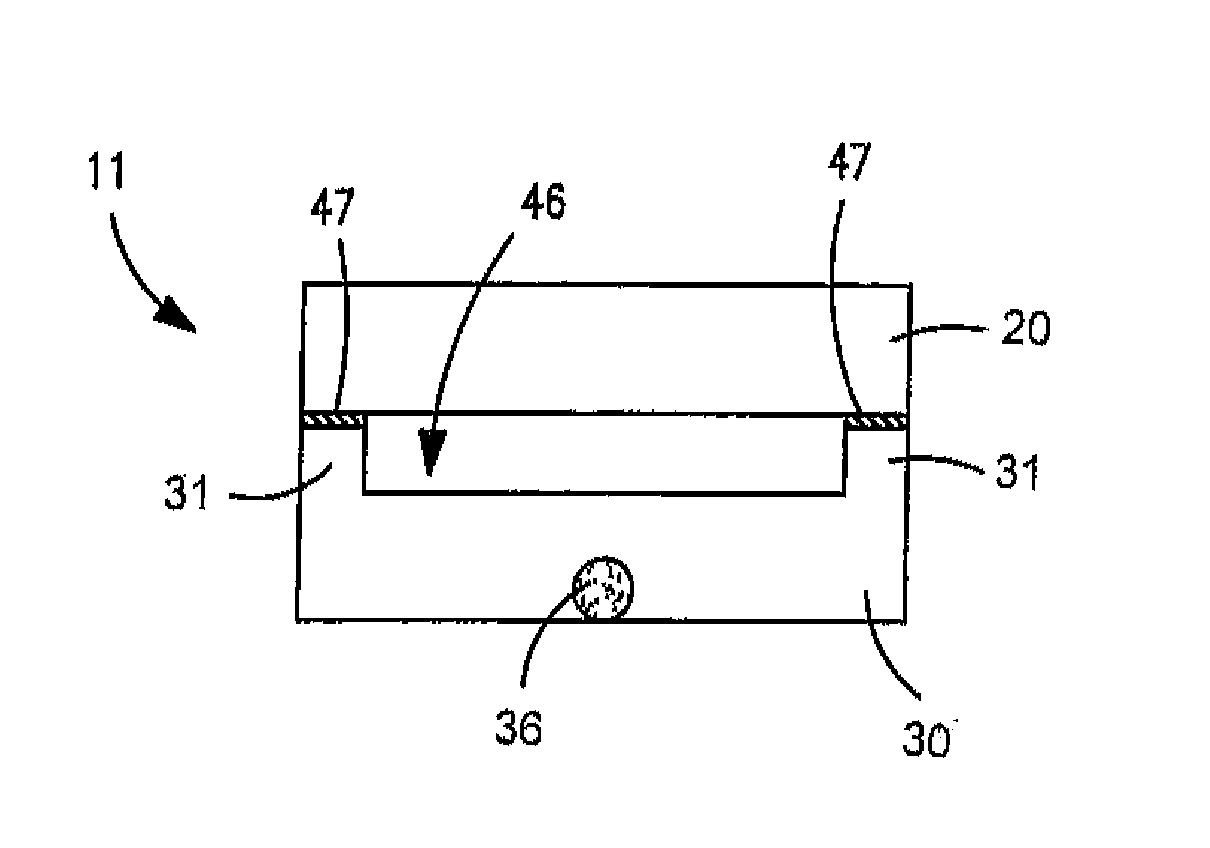

A solid electrolytic capacitor containing a capacitor element that includes an anode, dielectric layer, and solid electrolyte is provided. The anode is formed from a plurality (e.g., two or more) of separate components, which allows the properties of each component (e.g., density, quality, etc.) to be more readily controlled during manufacturing. The components are electrically connected using a refractory metal paste (e.g., tantalum paste) that sinter bonds to the components to form a strong and reliable connection. The ability to reliably bond together separate components enables the use of a wide degree of possible cross-sectional profiles for each individual component. For example, the components may posses a relatively complex profile that contains one or more indentations and/or projections for increasing surface area. Despite the complex profile, the components may be readily connected to each other in accordance with the present invention to form the anode.
First Claim
Other Claims data not available
