Front-depression stapling device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2012
Grant Date -
Apr 21, 2011
app pub date -
May 3, 2010
filing date -
Oct 21, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

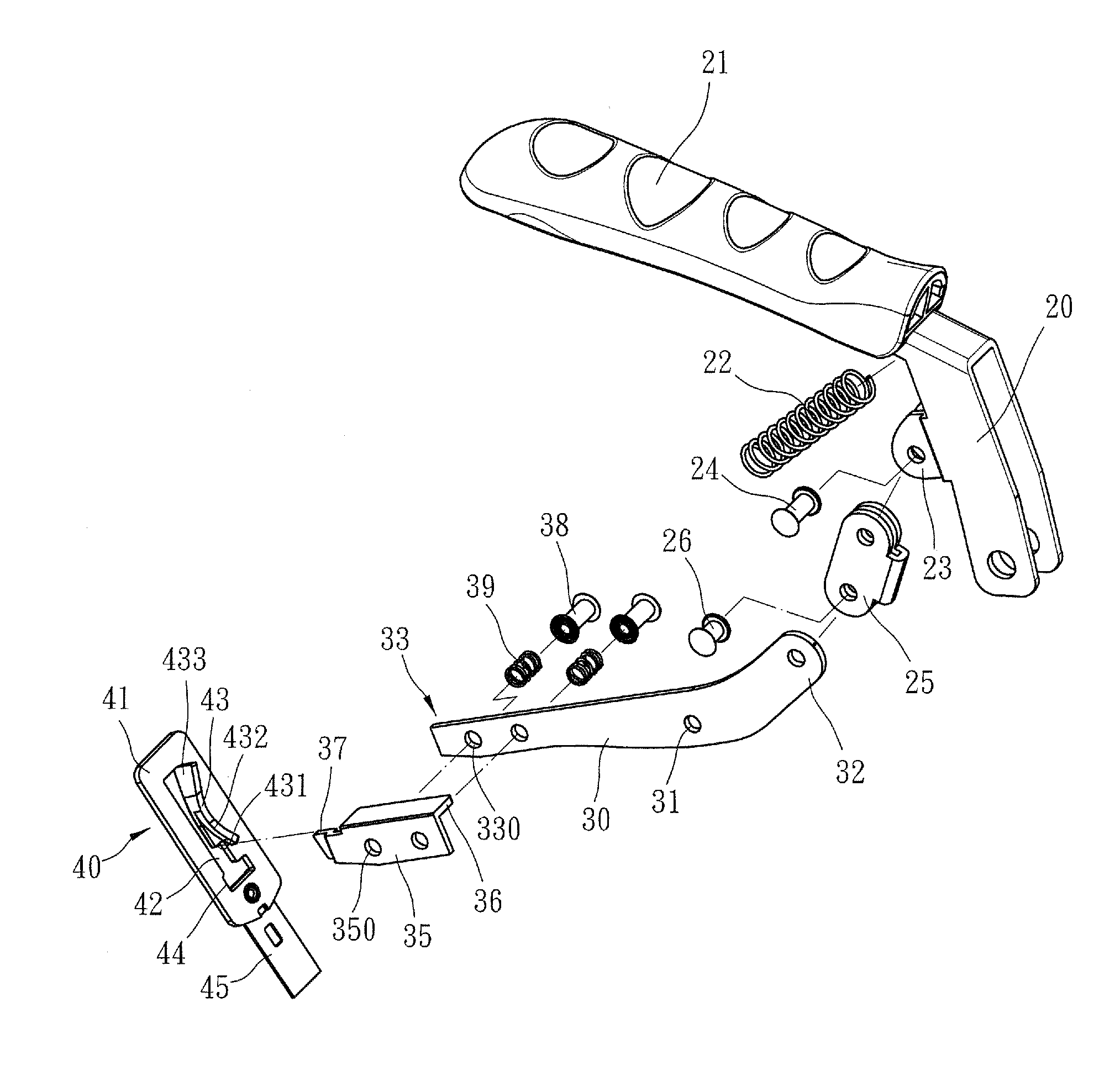

A stapling device includes a device body to which a depressing bar is pivotally mounted. Through a link plate, the depressing bar selectively drives a staple striking assembly downward for striking out staples. The depressing bar has a depressing end that is located at the same side as the portion of the device body where the staple striking assembly is mounted. The link plate has an end to which a lifting member that selectively engages and lifts the staple striking assembly is mounted. . . . The staple striking assembly includes a guide board that can be set in engagement with and thus driven by the lifting member. The staple striking assembly, when lifted to a predetermined height level, is released to strike out staples and the lifting member is caused to transversely shift to allow for the instantaneous downward movement of the staple striking assembly for striking out staples.
First Claim
Other Claims data not available
