Miter saw with cutting alignment device on a dust chute
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 25, 2012
Grant Date -
Oct 28, 2010
app pub date -
Apr 28, 2009
filing date -
Apr 28, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

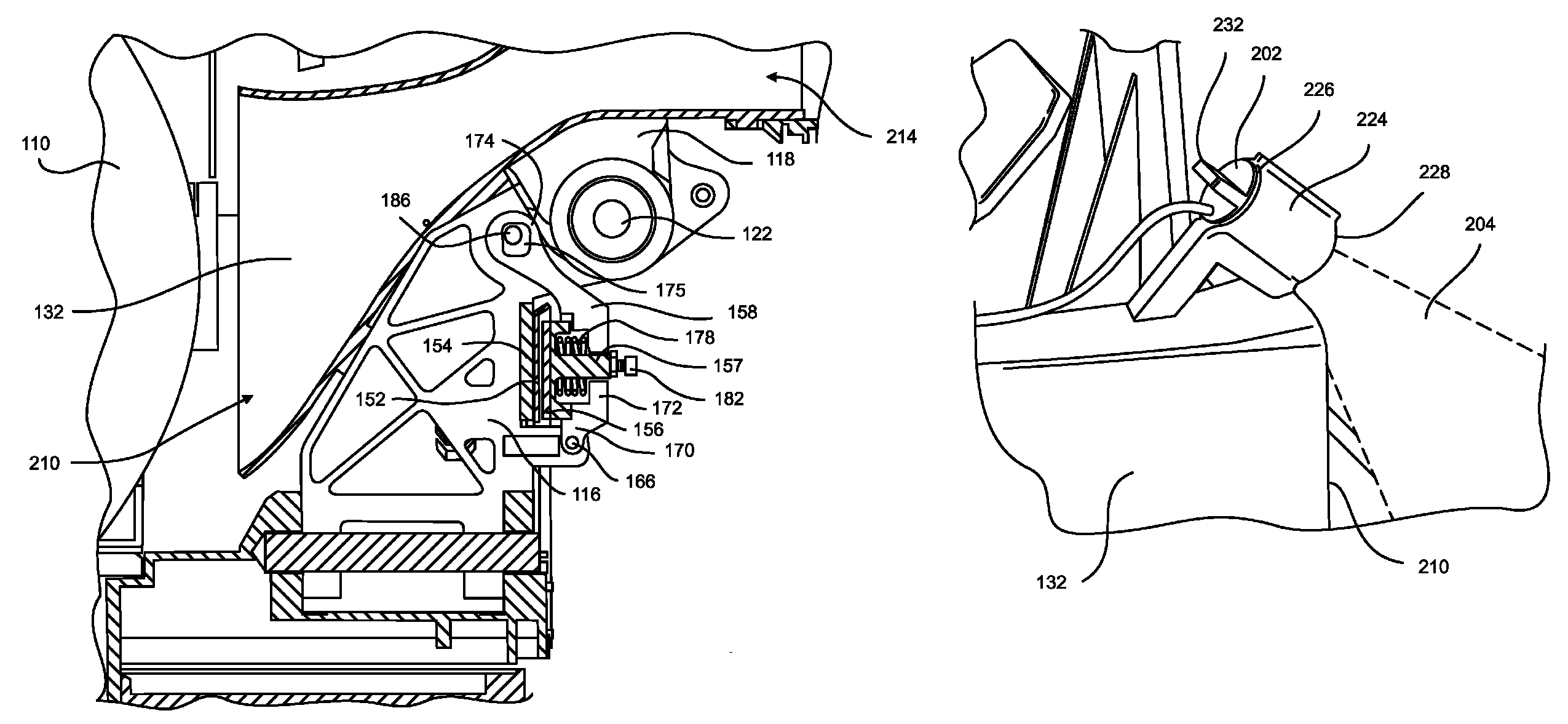

A miter saw with a cutting alignment device includes a base with a work surface provided thereon. A bevel support is pivotable with respect to the base and a cutting blade is supported by the bevel support. A dust chute is adjustably secured to the bevel support and pivots with respect to the base when the bevel support pivots. The dust chute includes mounts that allow lateral adjustment of the dust chute with respect to the bevel support. A laser alignment device is positioned on the dust chute and configured to emit a beam of light toward the work surface. The dust chute includes a receptacle designed and dimensioned to releasably hold the laser alignment device. Because the laser alignment device is retained on the dust chute, adjustment of the dust chute also results in adjustment of a beam of light emitted from the laser alignment device.
