Control valve assembly for load carrying vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 18, 2012
Grant Date -
Oct 13, 2011
app pub date -
Jun 10, 2011
filing date -
Dec 3, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

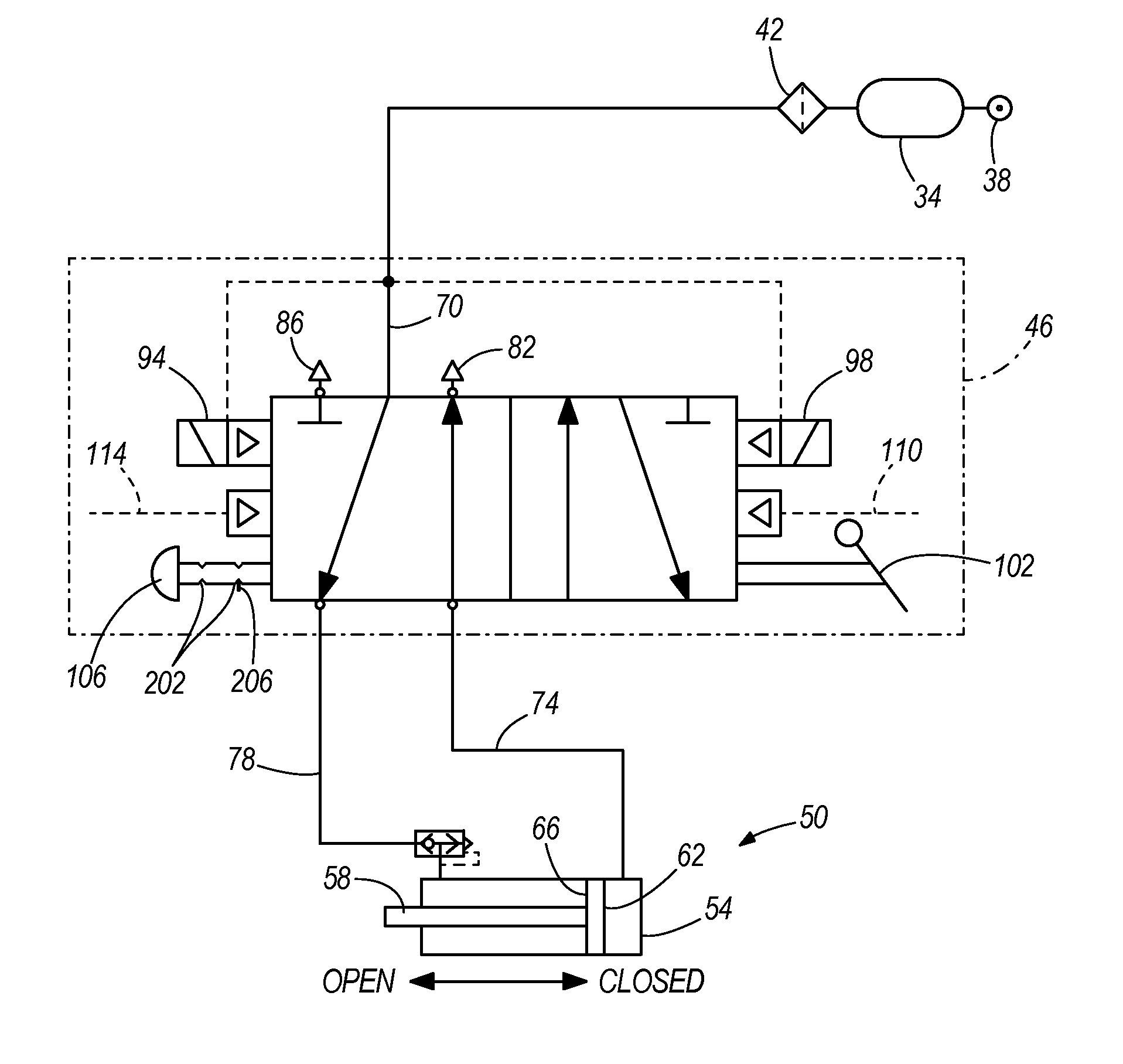

A control valve assembly is provided for a load carrying vehicle that includes a storage space and a dumping mechanism. The control valve assembly includes a housing and a sliding valve positioned within the housing and movable between a first position, and a second position. The sliding valve includes a first piston that defines a first piston first surface and a first piston second surface, and a second piston that defines a second piston first surface and a second piston second surface. The first piston second surface faces the second piston first surface. A pilot system includes a first pilot passage in fluid communication with the first piston second surface to selectively actuate the sliding valve toward the first position, and a second pilot passage in fluid communication with the second piston first surface to selectively actuate the sliding valve toward the second position.
