Cable radius anchor for wire mesh basket tray
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 11, 2012
Grant Date -
Jul 8, 2010
app pub date -
Jan 5, 2010
filing date -
Jan 5, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

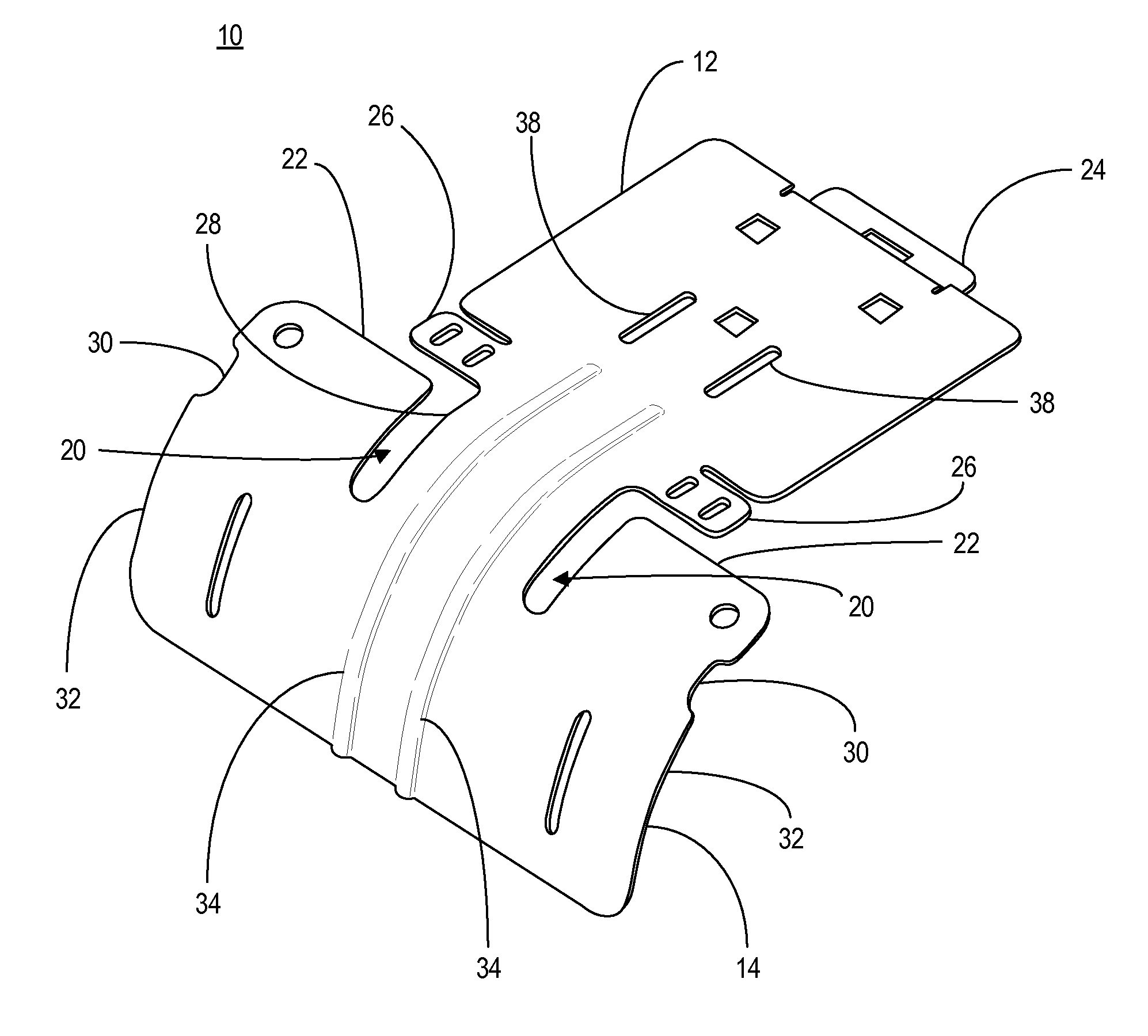

A cable radius anchor for providing cable transition to and from a wire mesh basket tray includes a mounting portion and a drop portion. The mounting portion has an undercut tab at an outer edge thereof for adjoining placement relative to a first wire of the wire mesh basket tray, and the drop portion extends from the mounting portion and is configured to curve away from the mounting portion. The drop portion includes drop ears at each side thereof for adjoining placement relative to at least one additional wire of the wire mesh basket tray that is transverse to the first wire. The drop portion has a width greater than a width of the mounting portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 23 Citation Count
- H02G Class
- 81.32 % this patent is cited more than
- 13 Age
