Connector for connecting outer plate of side panels and outer corner post of container body and container body of refrigerated and thermal vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 11, 2012
Grant Date -
Aug 26, 2010
app pub date -
Oct 13, 2009
filing date -
Feb 20, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

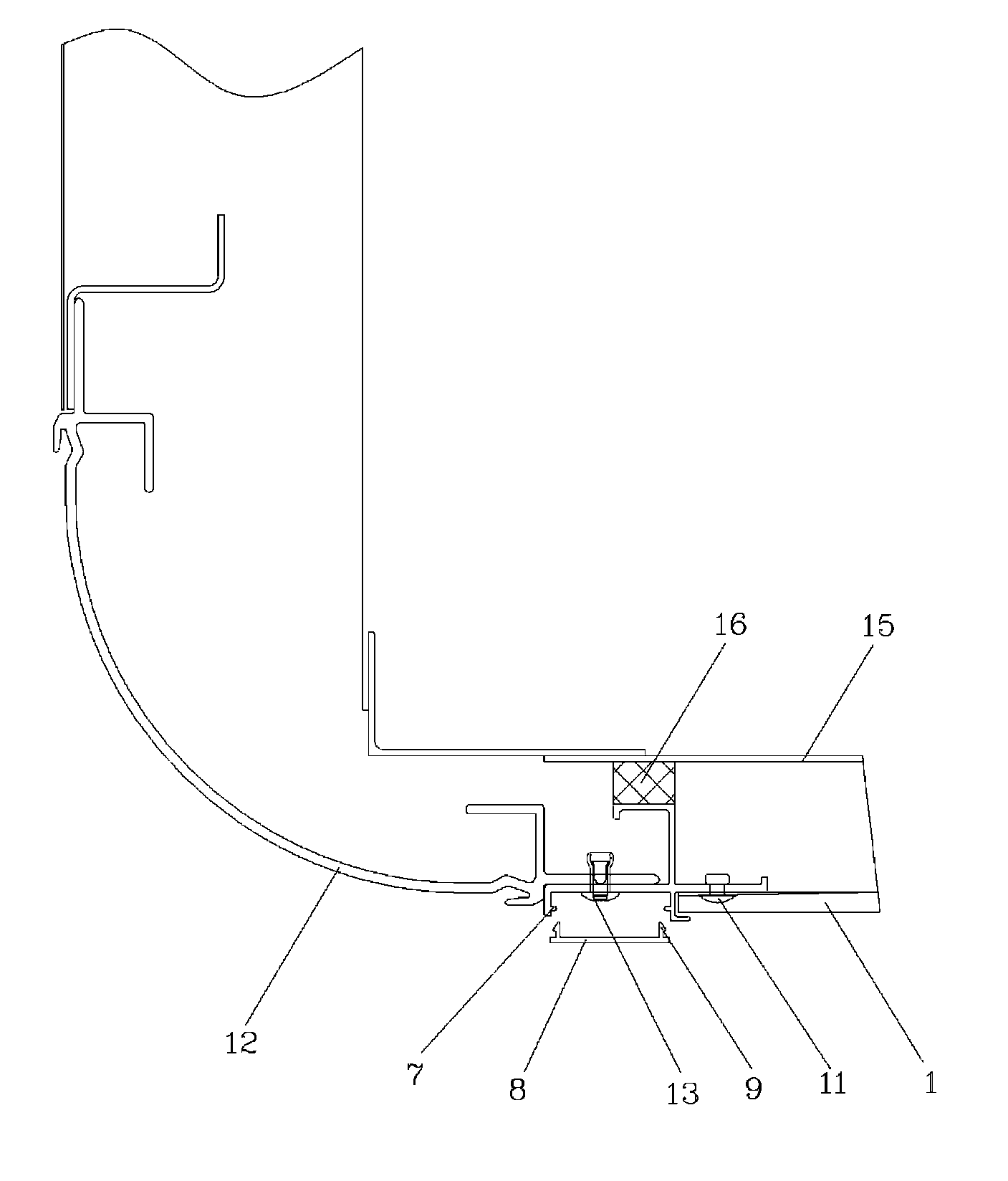

A connector for connecting an outer plate of side panels and an outer corner post of a container body comprises a connecting plate for connecting the outer plate and the outer corner post of the container body and a cover plate. The connecting plate is perpendicularly provided with a strengthening stop plate at an inner side of a middle portion thereof and a stop groove for receiving the outer plate at an outer side of the middle portion thereof, and provided with a seat plate parallel to a base plate of the stop groove at an end thereof connecting the outer corner post. Two clipping strips are symmetrically provided on opposite sides of the seat plate and the base plate of the stop groove. The cover plate is provided with two elastic clipping strips which respectively engage with the two clipping strips and have a hook-shape cross section.
First Claim
Other Claims data not available
Family
International Classification(s)
- F16B:DEVICES FOR FASTENING OR SECURING CONSTRUCTIONAL E....
- B62D:MOTOR VEHICLES; TRAILERS
- E04B:GENERAL BUILDING CONSTRUCTIONS; WALLS, e.g. PARTIT....
- B60P:VEHICLES ADAPTED FOR LOAD TRANSPORTATION OR TO TRA....
- E04C:STRUCTURAL ELEMENTS; BUILDING MATERIALS
- F25D:REFRIGERATORS; COLD ROOMS; ICE-BOXES; COOLING OR F....
- B25G:HANDLES FOR HAND IMPLEMENTS
- 2009 Application Filing Year
- F16B Class
- 601 Applications Filed
- 334 Patents Issued To-Date
- 55.58 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16B Class
- 5.22 % this patent is cited more than
- 13 Age
