Internal structural mullion for standing seam panel system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 4, 2012
Issued Date -
N/A
app pub date -
Nov 25, 2009
filing date -
Dec 1, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

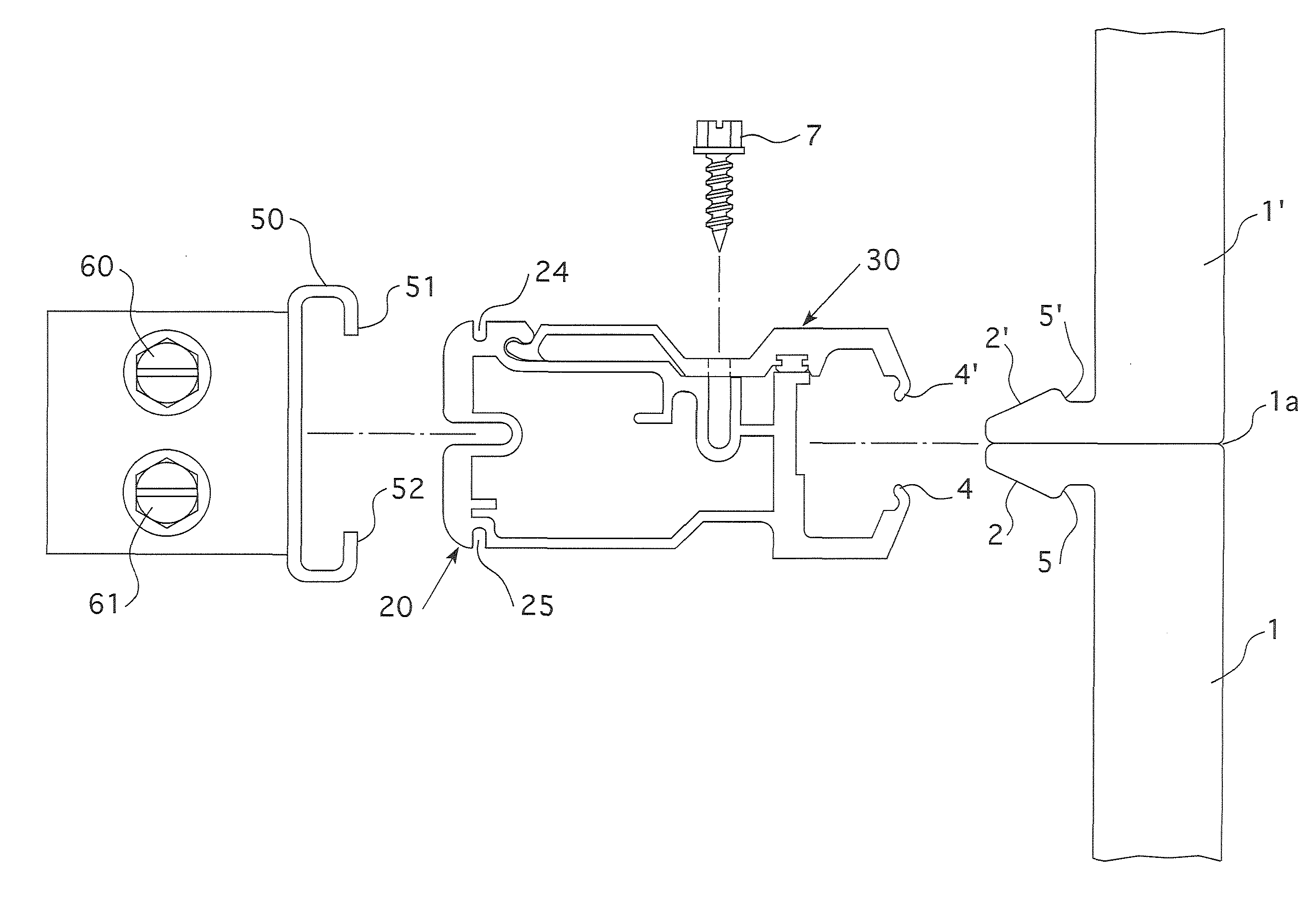

Provided is an internal structural mullion for a standing seam panel system. A two-piece assembly includes a man extrusion having one hooked portion and a secondary extrusion having an opposing hooked portion. A cavity is defined on the main extrusion, and the secondary extrusion includes a foot wherein upon insertion of the foot into the cavity, the foot forms a fulcrum about which the secondary extrusion can bend away from the main extrusion and be tightened or loosened by the tightening or loosing of a screw, as a result forming a clamp for engaging panels of the panel system with variable pressure. Further, when clamped a continuous gasket seal occurs at a level just inside the panels so as to form a barrier against the intrusion of water.
First Claim
Other Claims data not available
