Cryostat having a magnet coil system, which comprises an under-cooled LTS section and an HTS section arranged in a separate helium tank
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 28, 2012
Grant Date -
Nov 26, 2009
app pub date -
Mar 7, 2007
filing date -
Mar 18, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

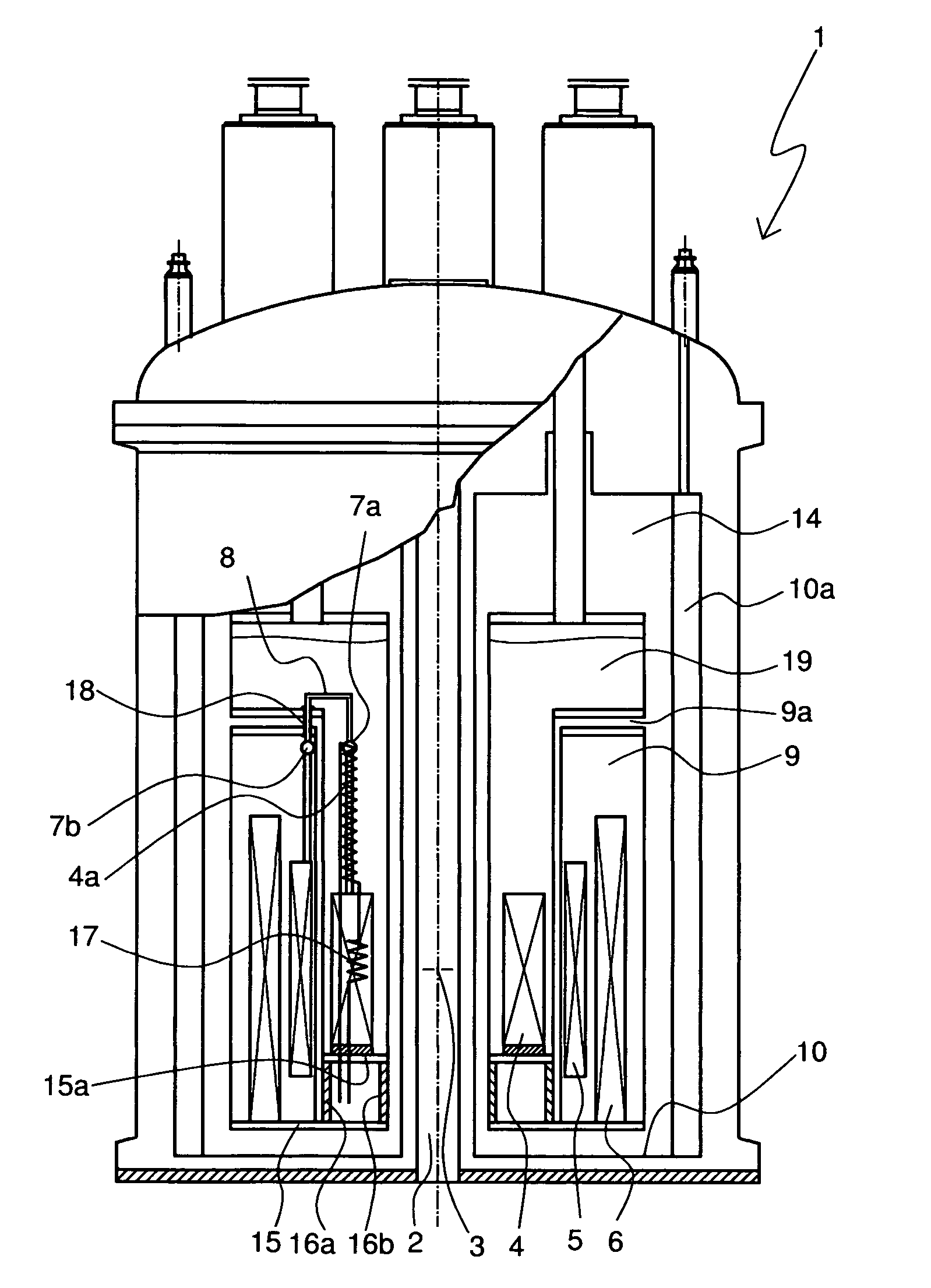

A cryostat (1) with a magnet coil system including superconductors for the production of a magnet field B0 in a measuring volume (3) has a plurality of radially nested solenoid-shaped coil sections (4, 5, 6) which are electrically connected in series, at least one of which being an LTS section (5, 6) with a conventional low temperature superconductor (LTS) and at least one of which being an HTS section (4) including a high temperature superconductor (HTS), wherein the LTS section (5, 6) is located in a first helium tank (9) of the cryostat (1) along with liquid helium at a helium temperature TL<4 K. The apparatus is characterized in that the HTS section (4) is disposed radially within the LTS section (5, 6) in a separate helium tank (19) of the cryostat (1) having normal liquid helium and is separated from the LTS section (5, 6) by means of at least one wall disposed between the two helium tanks. An HTS coil section can be maintained in the cryostat in accordance with the invention over a long period of time and in a reliable fashion.
First Claim
Other Claims data not available
