Method for fabricating an actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 28, 2012
Grant Date -
Jul 7, 2011
app pub date -
Feb 14, 2011
filing date -
Sep 20, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

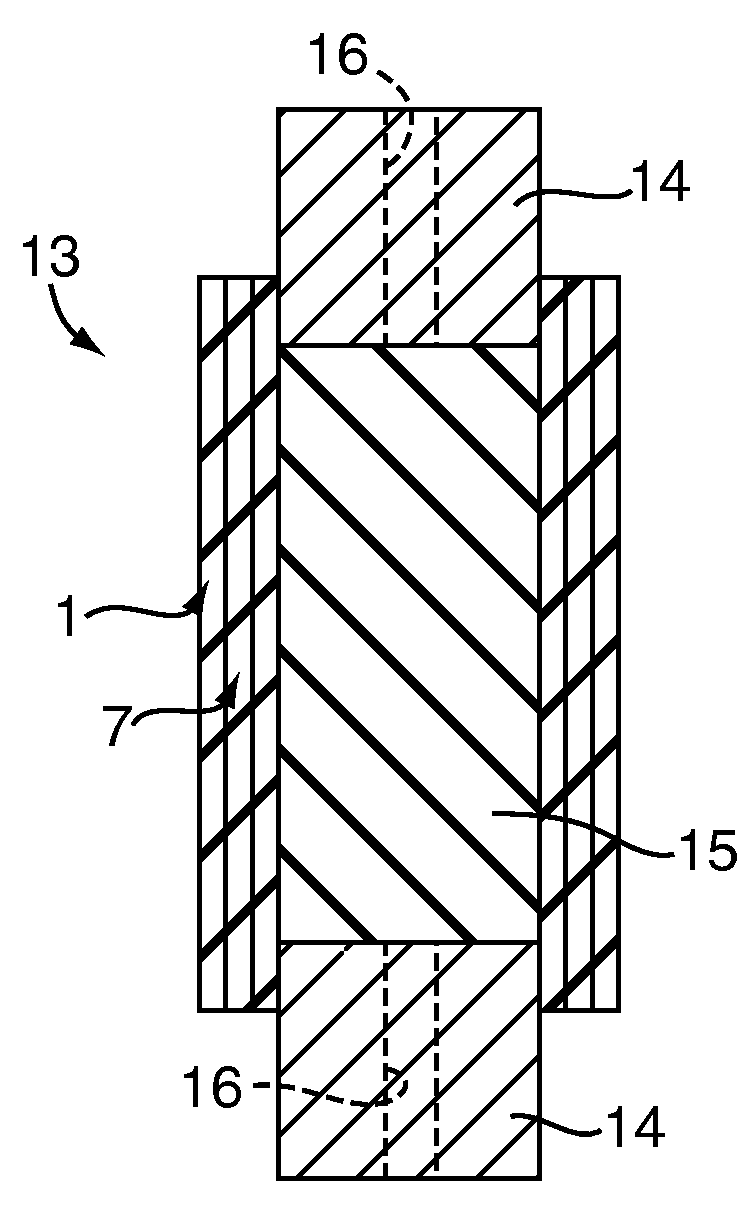

A tubular elastomer actuator with a shape in a cross-sectional view which shape exposes at most one single axis of symmetry of a specific length, e.g., an oval shape. The actuator could be made from a sheet made from a plurality of plate shaped elements which are laminated together and rolled. Each plate shaped element may have a corrugation that gives the element an anisotropic structure, and contains an electrode on only one surface. The actuator displacement is the result of shrinkage displacement of the plate shaped elements upon the application of electrical field across their thickness.
First Claim
Other Claims data not available
