Maintenance of sulfur concentration in Kraft pulp processes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 21, 2012
Grant Date -
Mar 24, 2011
app pub date -
Sep 24, 2010
filing date -
Sep 24, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

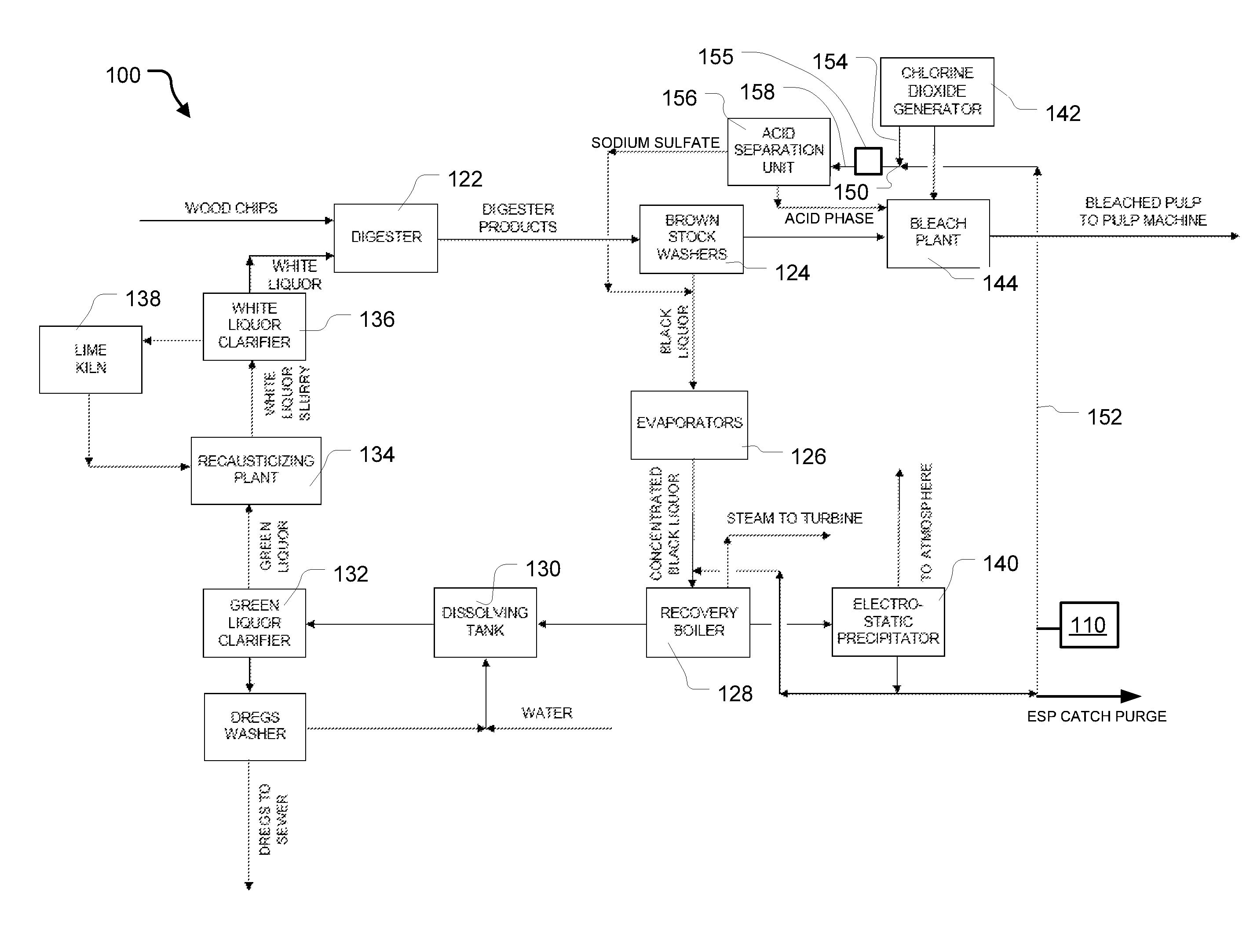

Methods and apparatus for maintaining sulfur concentration in the chemical recovery cycle of a Kraft pulping process. A portion of the recovery boiler ash is dissolved, treated to remove solids, and combined with an acid to provide a solution. The recovery boiler ash may be dissolved directly in the acid. The acid may be effluent from a chlorine dioxide generator. The resulting solution is maintained in a fully dissolved state and subjected to an acid separation step to provide a sodium sulfate enriched phase, which may be used to maintain sulfur concentration in the Kraft pulping process, and a sulfuric acid phase. Chlorine ions can be separated with the sulfuric acid phase. The sulfuric acid phase can be recycled to the chlorine dioxide generator.
