Assist grip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 21, 2012
Grant Date -
Jul 15, 2010
app pub date -
Nov 17, 2009
filing date -
Jan 9, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

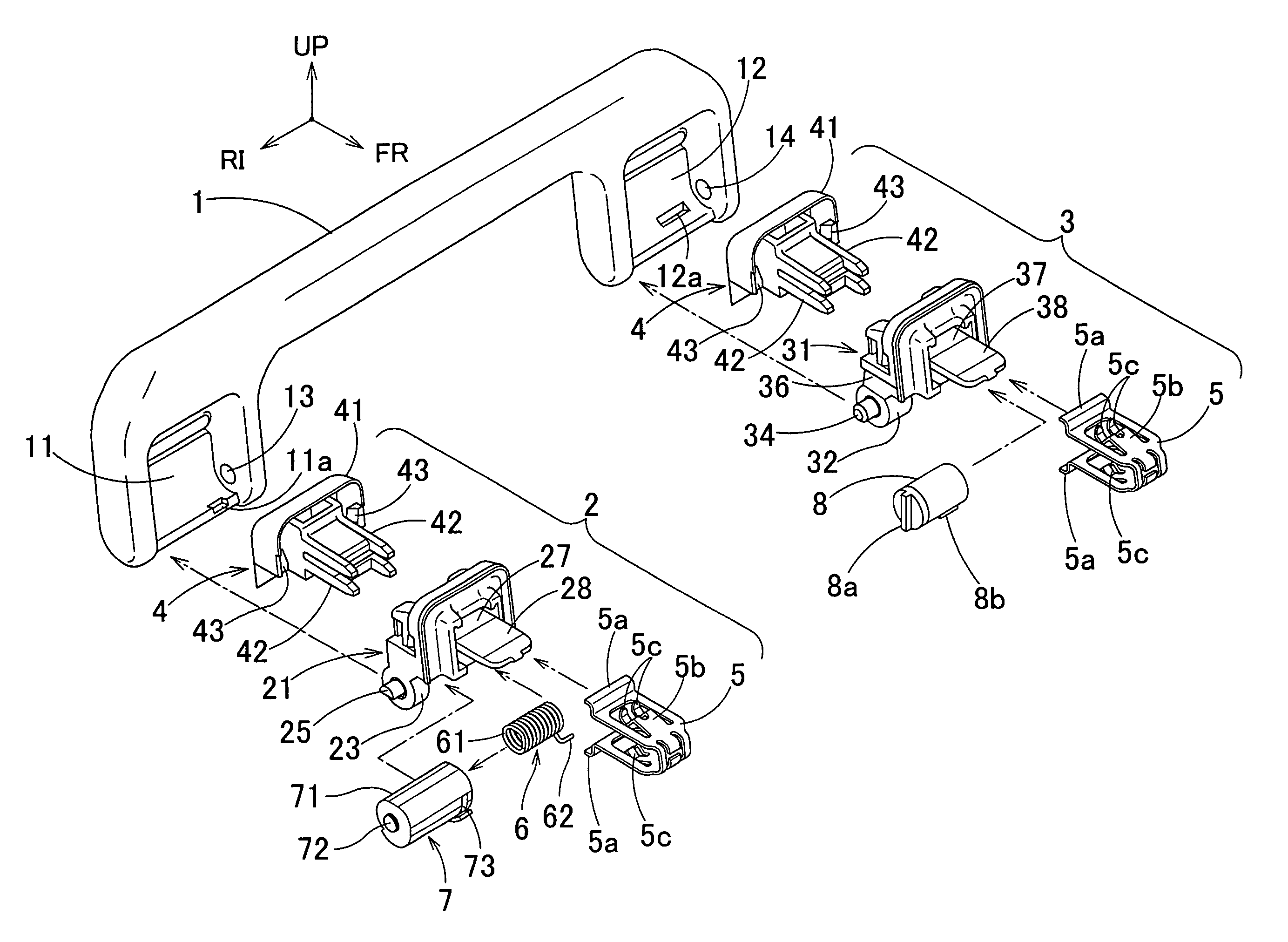

An assist grip of the present invention includes a grip body provided at both side base portions thereof with hinge recess portions and a hinge portion rotatably and pivotally supported in each of the hinge recess portions of both sides, and is fixed via the hinge portion to a to-be-fixed portion in an automobile. In a pivot support portion of the hinge portion, an outer support piece and an inner support piece are provided at a distance from each other, and between the inner support piece and the outer support piece, a torsion coil spring stored in a spring case is inserted. One end portion of the torsion coil spring is locked to an inside of the spring case, and the other end portion of the torsion coil spring projects from the spring case and is locked to a part of the grip body.
