Device for takedown of the article being formed, for circular knitting machines
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 14, 2012
Grant Date -
Mar 29, 2012
app pub date -
Apr 9, 2010
filing date -
Jun 8, 2009
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

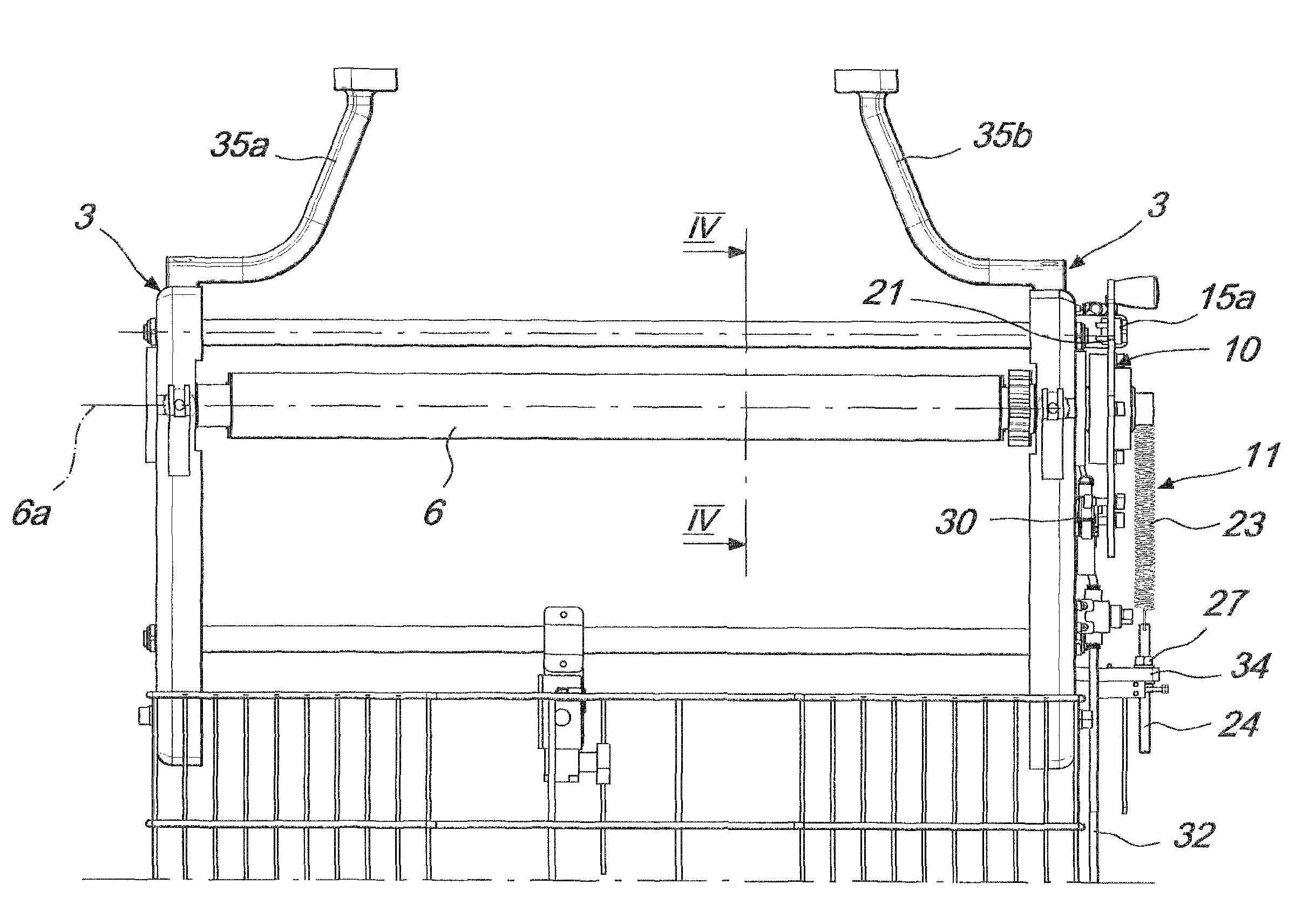

A device for takedown of the article being formed, for circular knitting machines, comprising at least one takedown roller, which is supported, so that it can rotate about its own axis, by a supporting structure and can engage, by means of its lateral surface, the article to be taken down. There are reloading means, which operate on a motor element to cause its rotation about a main axis in a second direction of rotation that is opposite to the first direction of rotation. The reloading means comprise a fluid-operated reloading cylinder, which is supported by the supporting structure and operates with the stem of its piston on the motor element with a reloading force that is oriented along a direction spaced from the main axis for applying to the motor element a reloading torque that is oriented concordantly with the second direction of rotation.
First Claim
Other Claims data not available
