Light string system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 7, 2012
Grant Date -
Jun 9, 2011
app pub date -
Dec 3, 2010
filing date -
Dec 9, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

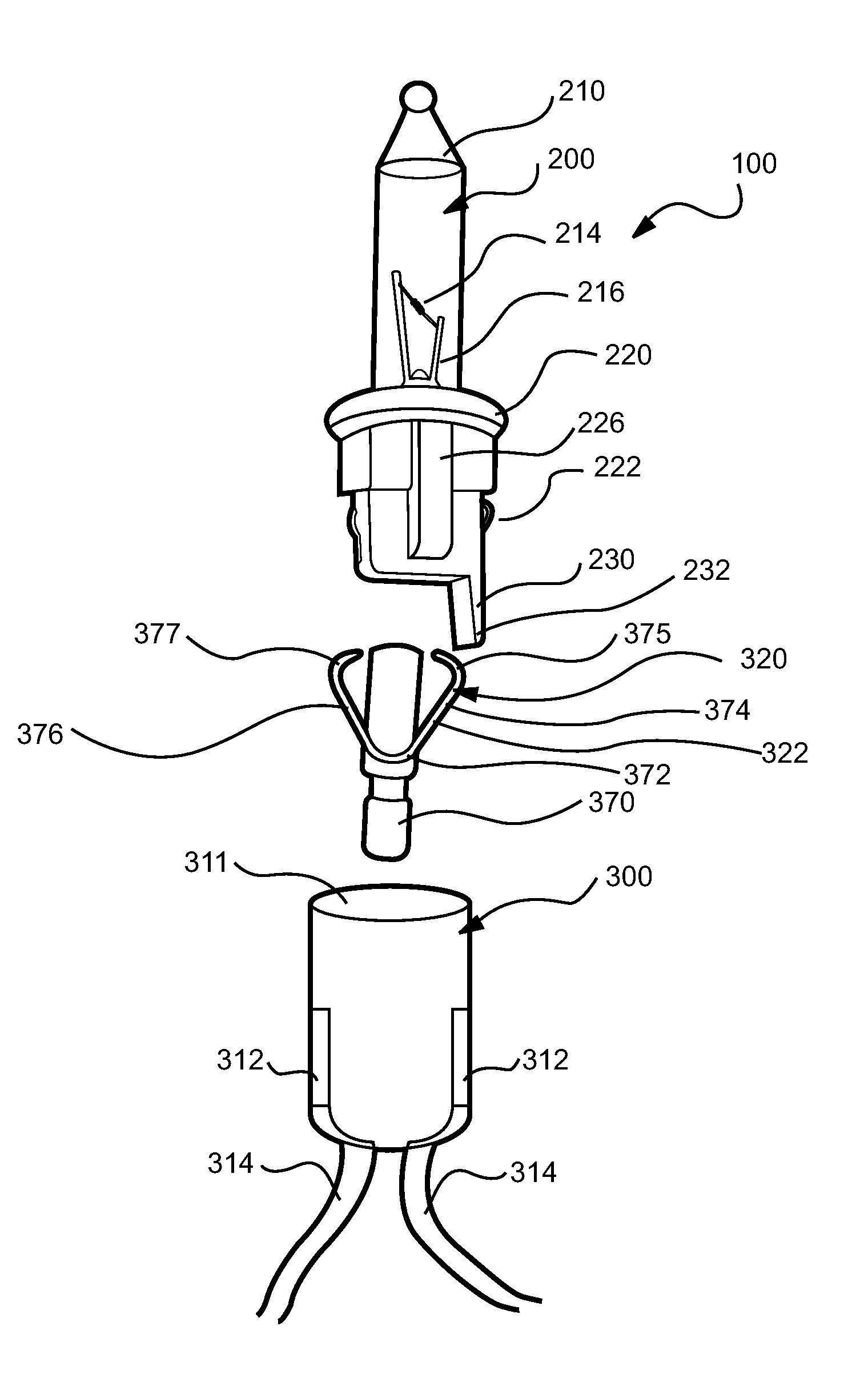

A lamp system used in a light string system comprises a light assembly and a socket assembly. The light assembly comprises a light source, a base in communication with the light source, and a bypass activating system. The socket assembly comprises a socket adapted to receive the light assembly and a bypass mechanism having a first position and a second position. The bypass mechanism is in the first position when the light assembly is not seated in the socket assembly. When the bypass mechanism in the first position, current flows across the bypass mechanism. When the light assembly is inserted into the socket assembly, the bypass activating system of the light assembly moves the bypass mechanism into the second position, and current flows through the light source instead of the bypass mechanism.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 33 Citation Count
- H01R Class
- 92.13 % this patent is cited more than
- 13 Age
