Multi-cylinder reciprocating rotary engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 31, 2012
Grant Date -
Jun 9, 2011
app pub date -
Jul 27, 2009
filing date -
Jul 27, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

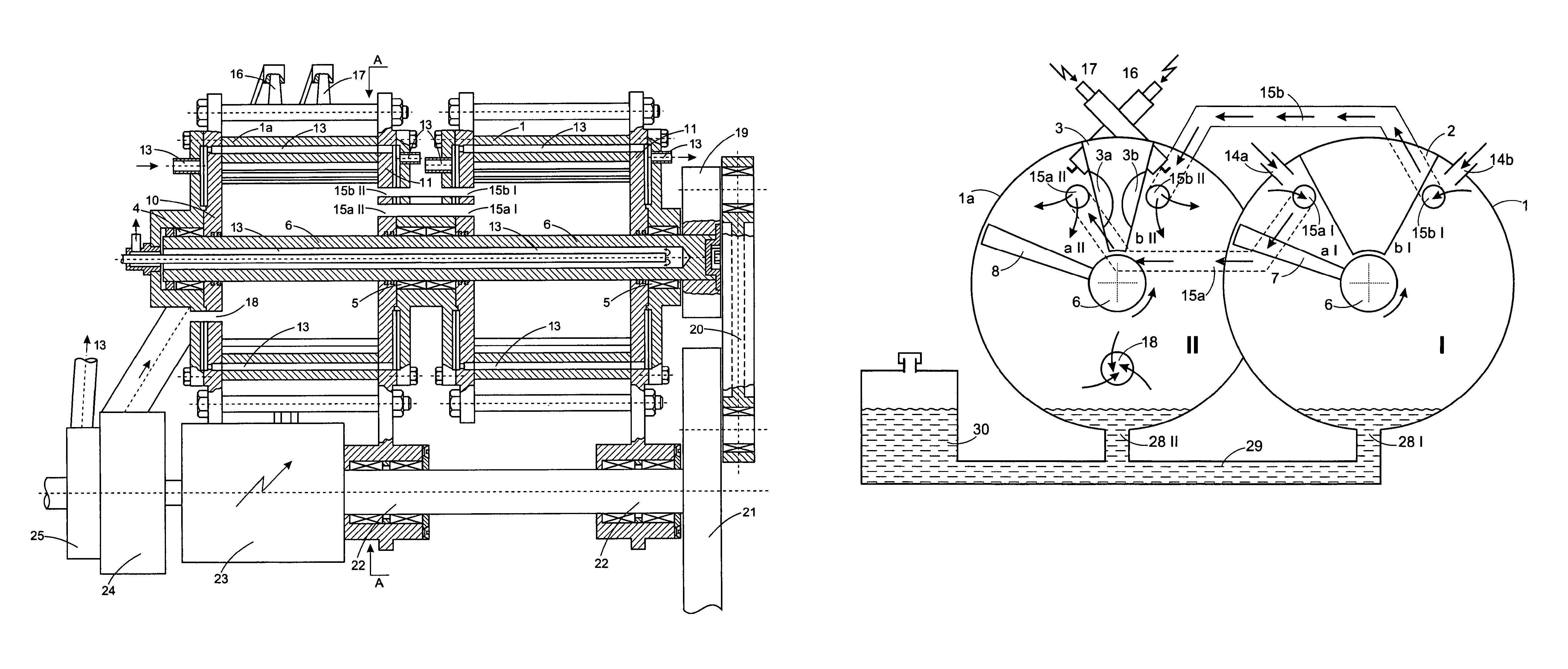

A highly efficient, low weight-to-power ratio and adjustable high compression, gasoline or diesel internal combustion engine consisting of a multitude of cylindrical casings parallel to each other or aligned sequentially on one axle. Each casing having one radially extending vane affixed to a shaft rotatably mounted within the casing upon two end plates and one longitudinally extending wall affixed on the inside of the casing. The casing and/or the end plates equipped with plurality of ports and conduits which enable communication between interior chambers of the cylinders, allowing for intake of combustible air-fuel mixture and exhaust thereafter. Ignition means delivering a spark at the end of each working cycle. An extendable and adjustable connecting rod assembly converting the oscillating bi-directional rotary motion of the power output shaft into a continuous unidirectional motion of the main shaft. A self lubricating mechanism incorporated into the engine.
First Claim
Other Claims data not available
