Dimensional detection system calibration method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 24, 2012
Grant Date -
Apr 5, 2012
app pub date -
Dec 13, 2011
filing date -
May 21, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

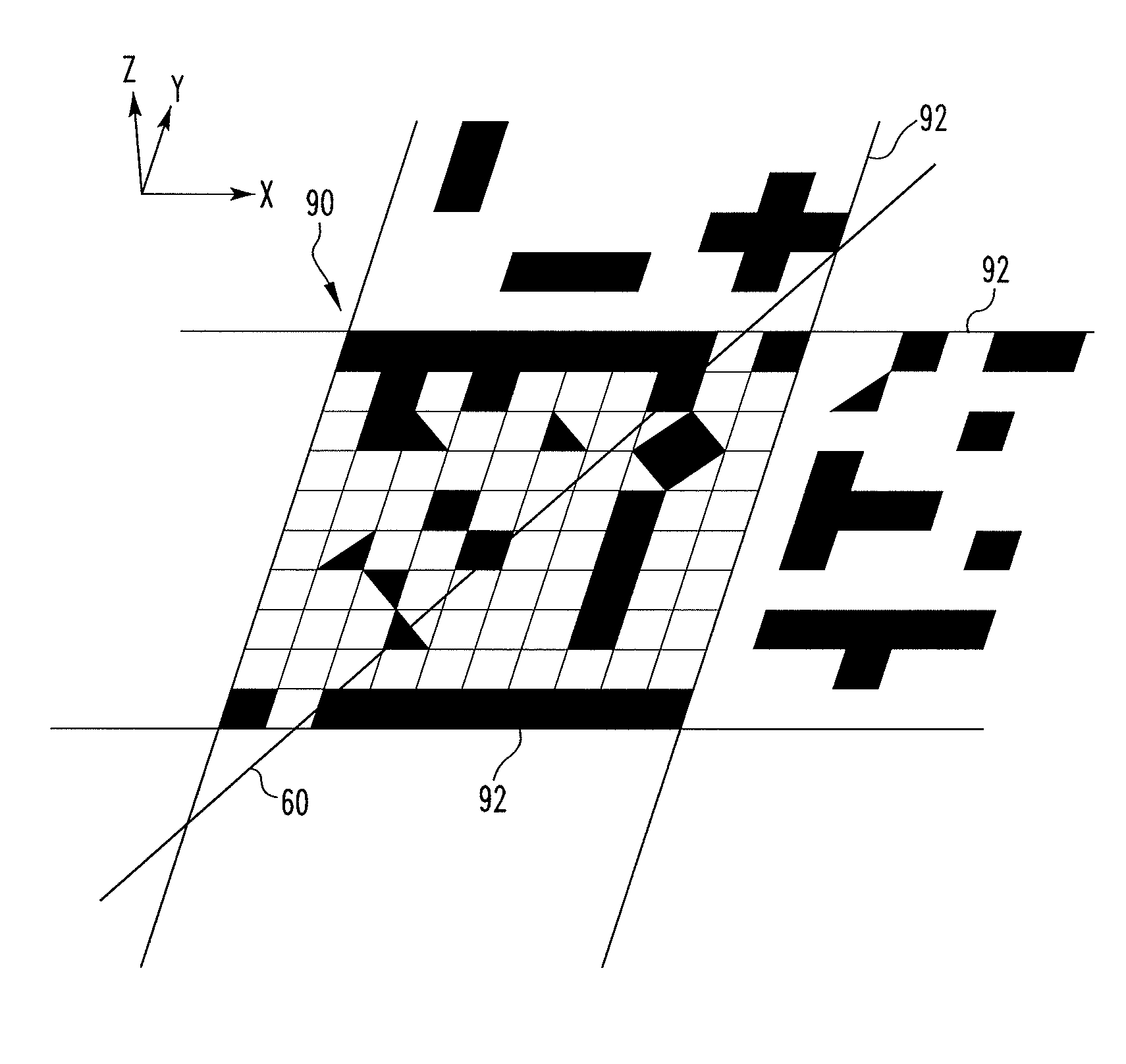

An improved dimensional detection system is portable and can be used to characterize a workpiece. The dimensional detection system employs as few as a single focused light source and as few as a single camera along with a calibration data set to convert the illuminated pixels of an image of a beam on the workpiece into a cloud of real world points in space on an outer surface of the workpiece. The cloud of points can be processed to characterize the workpiece, such as by determining the right hexahedron that would encompass all of the real world points in space and which could be used to determine a dimensional weight of the workpiece.
First Claim
Other Claims data not available
