Installation/uninstallation structure for tooling disk of a grinding tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 10, 2012
Grant Date -
Sep 22, 2011
app pub date -
Mar 16, 2010
filing date -
Mar 16, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

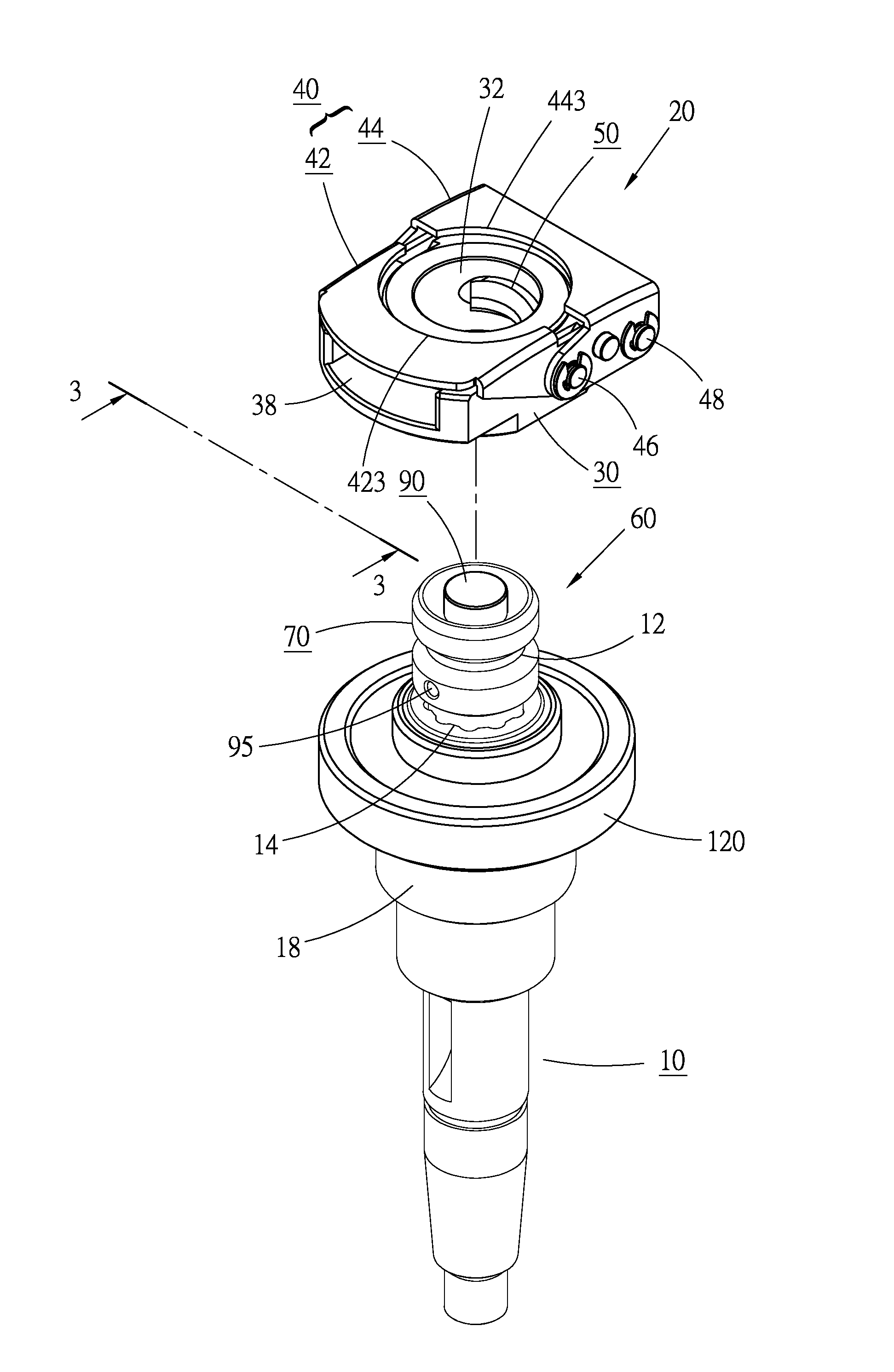

An installation/uninstallation structure for tooling disk of a grinding tool includes a rotary shaft mounted in the grinding tool and a securing assembly including a securing seat, a shift plate and a securing member. The securing member is movably mounted in the securing seat. The shift plate is pivotally disposed on the securing seat for driving the securing member. In use, the securing assembly is fitted around a rear end of the rotary shaft, when the shift plate is shifted to a locking position, the securing member is latched with the rotary shaft to secure the securing assembly to the rotary shaft for fixing the tooling disk. When the shift plate is shifted to an unlocking position, the securing member is unlatched from the rotary shaft, permitting a user to detach the securing assembly from the rotary shaft for taking off the tooling disk without using any tool.
First Claim
Other Claims data not available
