Transducer array arrangement and operation for sodar applications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 3, 2012
Grant Date -
Nov 10, 2011
app pub date -
Jul 7, 2011
filing date -
Nov 6, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

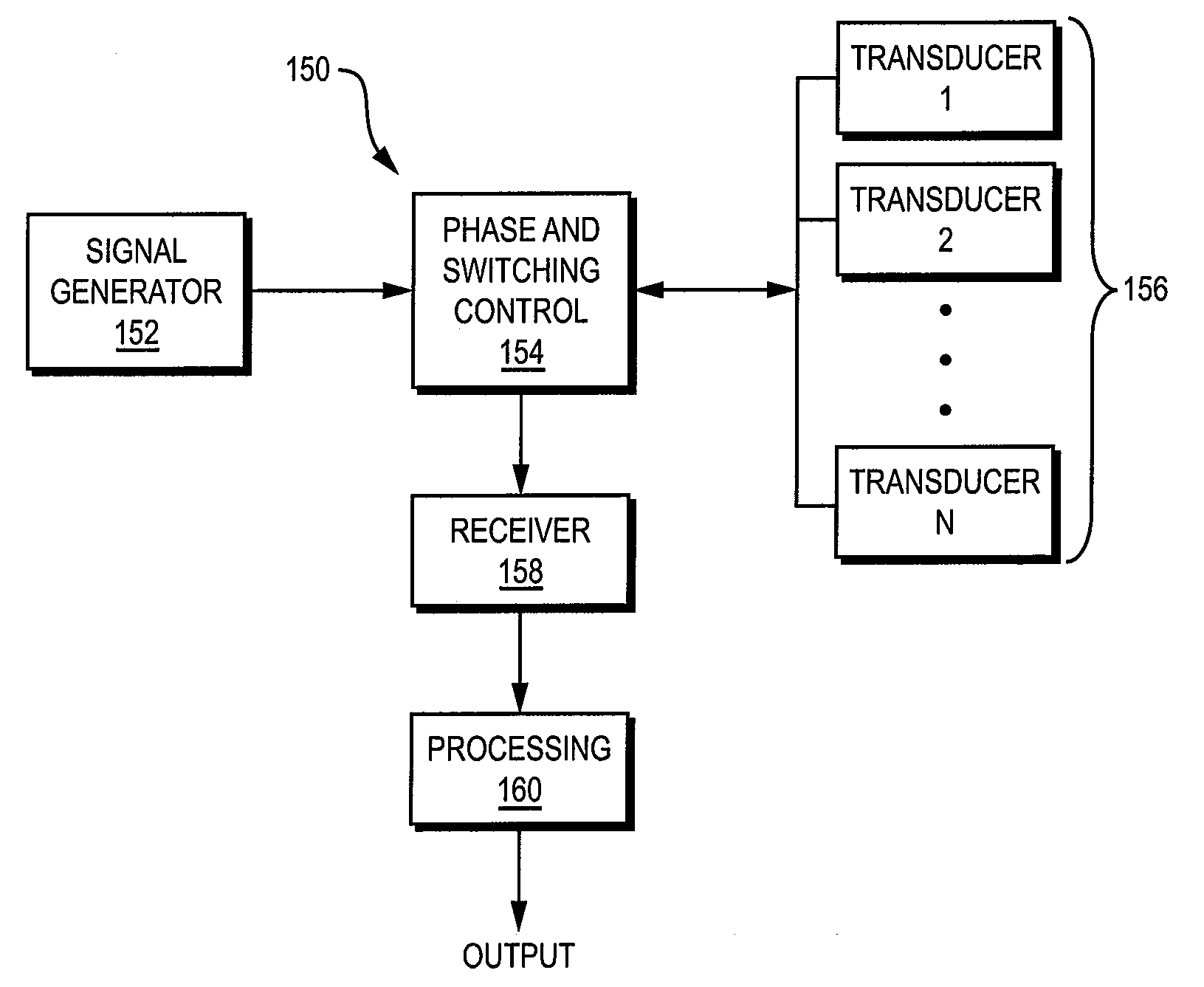

A monostatic sodar system includes an array of essentially identical acoustic transducers. Each transducer includes a cone transducer element which generates and receives sound and a horn which guides the sound to and from the cone to a circular or hexagonal active region from which sound is emitted during a sound emission and into which sound is received during a reception of emitted sound that has been reflected by the atmosphere. Each transducer defines a generally hexagonal perimeter shape and occupying a generally hexagonal area of the array. The system includes a signal generator that generates signals that are used to drive the transducers, a phase and switching control, a receiver that receives signals from the transducers, a processor, an open-top enclosure, and a sound reflector within the enclosure.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G01S Class
- 2.71 % this patent is cited more than
- 13 Age
