Barrel drive mechanism for pallets
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 19, 2012
Grant Date -
Mar 4, 2010
app pub date -
Aug 27, 2008
filing date -
Aug 27, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

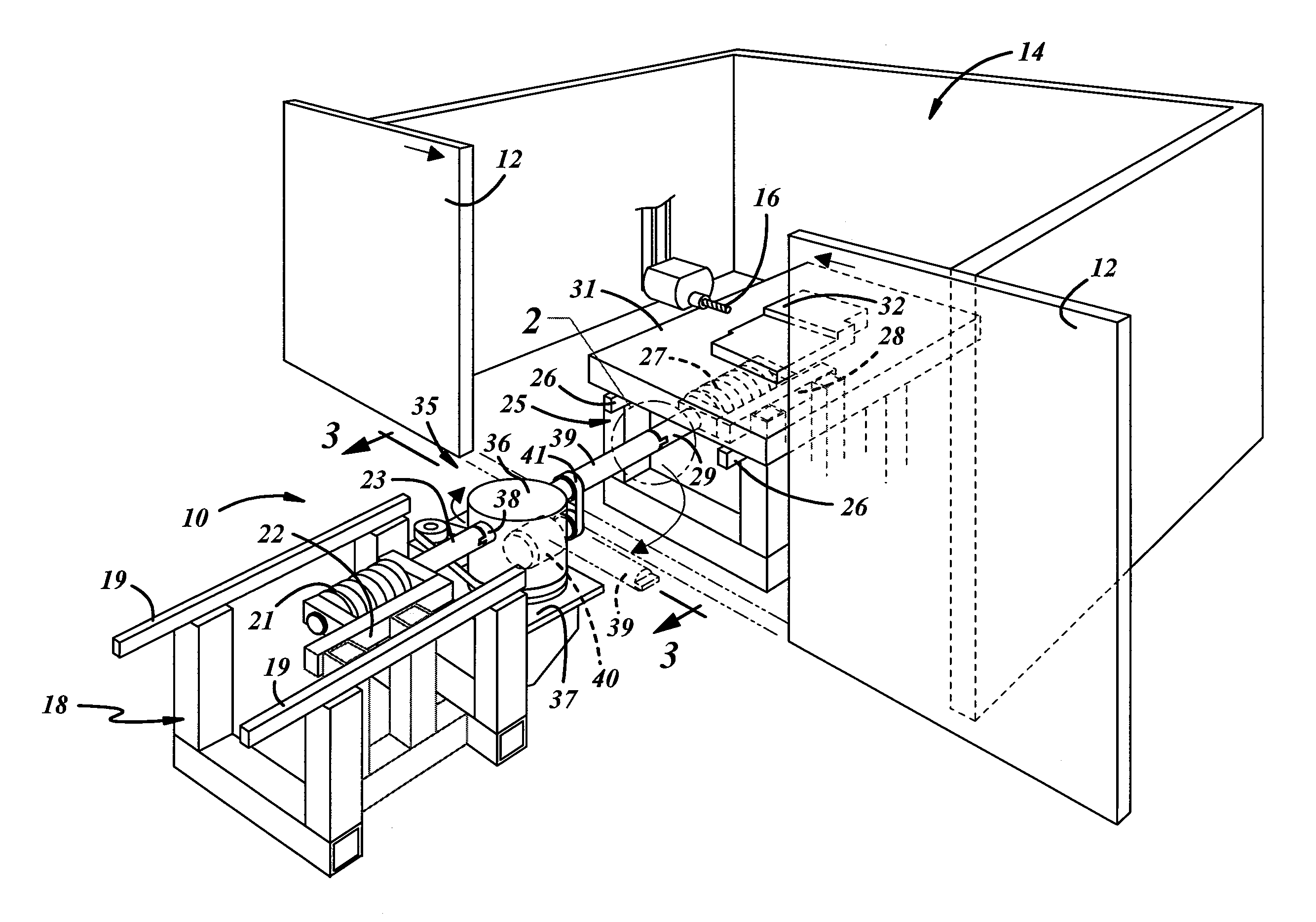

A rotary drive mechanism is used to insert a pallet into the workzone of a machine tool past the plane the guard doors. Cam barrels are mounted one each on the opposite ends of a pair of opposed drive shafts that are driven by a pair of drive hubs. The cam barrels engage cam followers mounted on the underside of the pallet to drive the pallet into the workzone of the machine tool. The connection between the drive shafts and the drive hubs is separable, allowing the drive shafts to be uncoupled from the drive hubs when desired. The drive hubs are mounted on a hub carrier that is rotatable about a vertical axis to uncouple the drive hubs from the drive shafts and swing the drive hubs out of the plane of the guard doors, allowing the doors to close.
First Claim
Other Claims data not available
