System and method for side vision detection of obstacles for vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2012
Issued Date -
N/A
app pub date -
Dec 12, 2007
filing date -
Dec 12, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

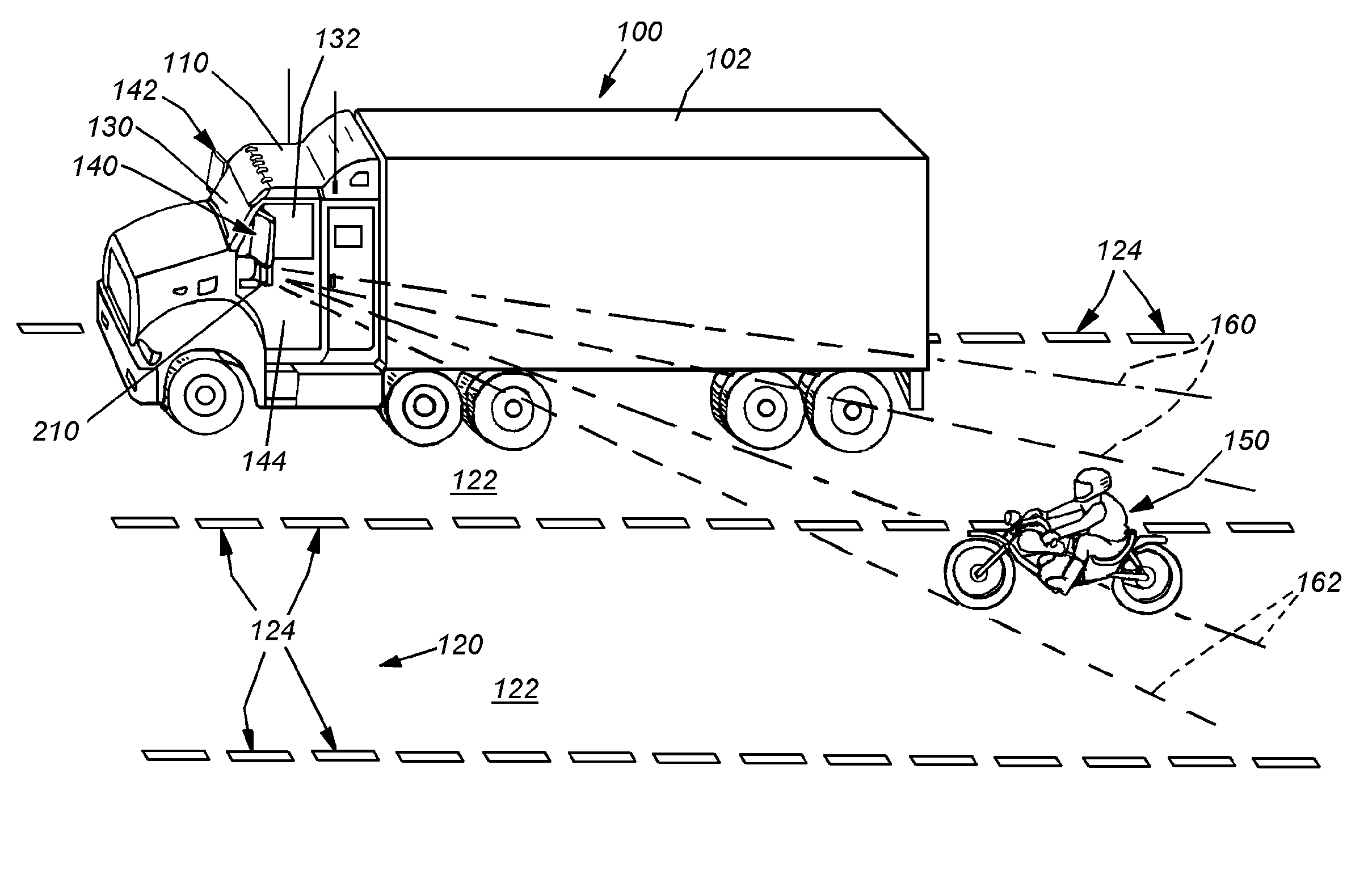

This invention provides a system and method for object detection and collision avoidance for objects and vehicles located behind the cab or front section of an elongated, and possibly tandem, vehicle. Through the use of narrow-baseline stereo vision that can be vertically oriented relative to the ground/road surface, the system and method can employ relatively inexpensive cameras, in a stereo relationship, on a low-profile mounting, to perform reliable detection with good range discrimination. The field of detection is sufficiently behind and aside the rear area to assure an adequate safety zone in most instances. Moreover, this system and method allows all equipment to be maintained on the cab of a tandem vehicle, rather than the interchangeable, and more-prone-to-damage cargo section and/or trailer. One or more cameras can be mounted on, or within, the mirror on each side, on aerodynamic fairings or other exposed locations of the vehicle. Image signals received from each camera can be conditioned before they are matched and compared for disparities viewed above the ground surface, and according to predetermined disparity criteria.
First Claim
Other Claims data not available
