Holographic recording system having a relay system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2012
Grant Date -
Dec 8, 2005
app pub date -
May 17, 2005
filing date -
Nov 22, 2002
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

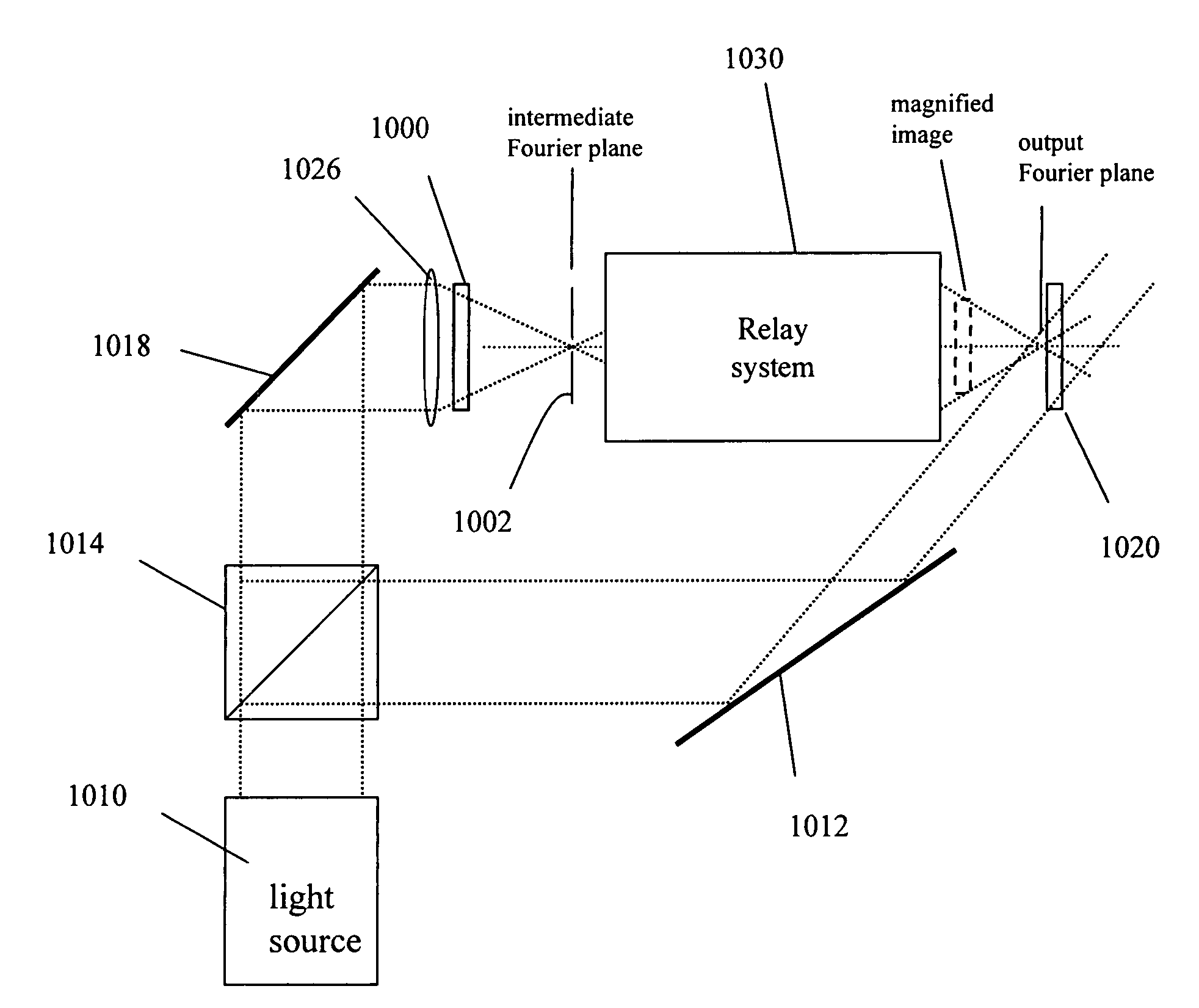

According to one aspect and example, a holographic recording system includes a light source, an object for modulating an object beam from the light source, and a relay system adapted to magnify (positive or negative) the modulated beam (e.g., an image of the object) to an output image. The object may include an SLM operable to modulate the object beam with an information layer comprising a plurality of data pages. The output image is directed to the holographic storage medium, where a reference beam is also directed, to record the resulting interference pattern. Additionally, the relay system converges the output image to an output Fourier plane, which may be disposed within the holographic storage medium. A filter may be placed at an intermediate Fourier plane located prior to the output Fourier plane, and a phase mask may be placed at the position of the output image.
First Claim
Other Claims data not available
