Proportional electromagnet actuator and control system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 12, 2012
Grant Date -
Sep 23, 2010
app pub date -
Jun 4, 2010
filing date -
Oct 1, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

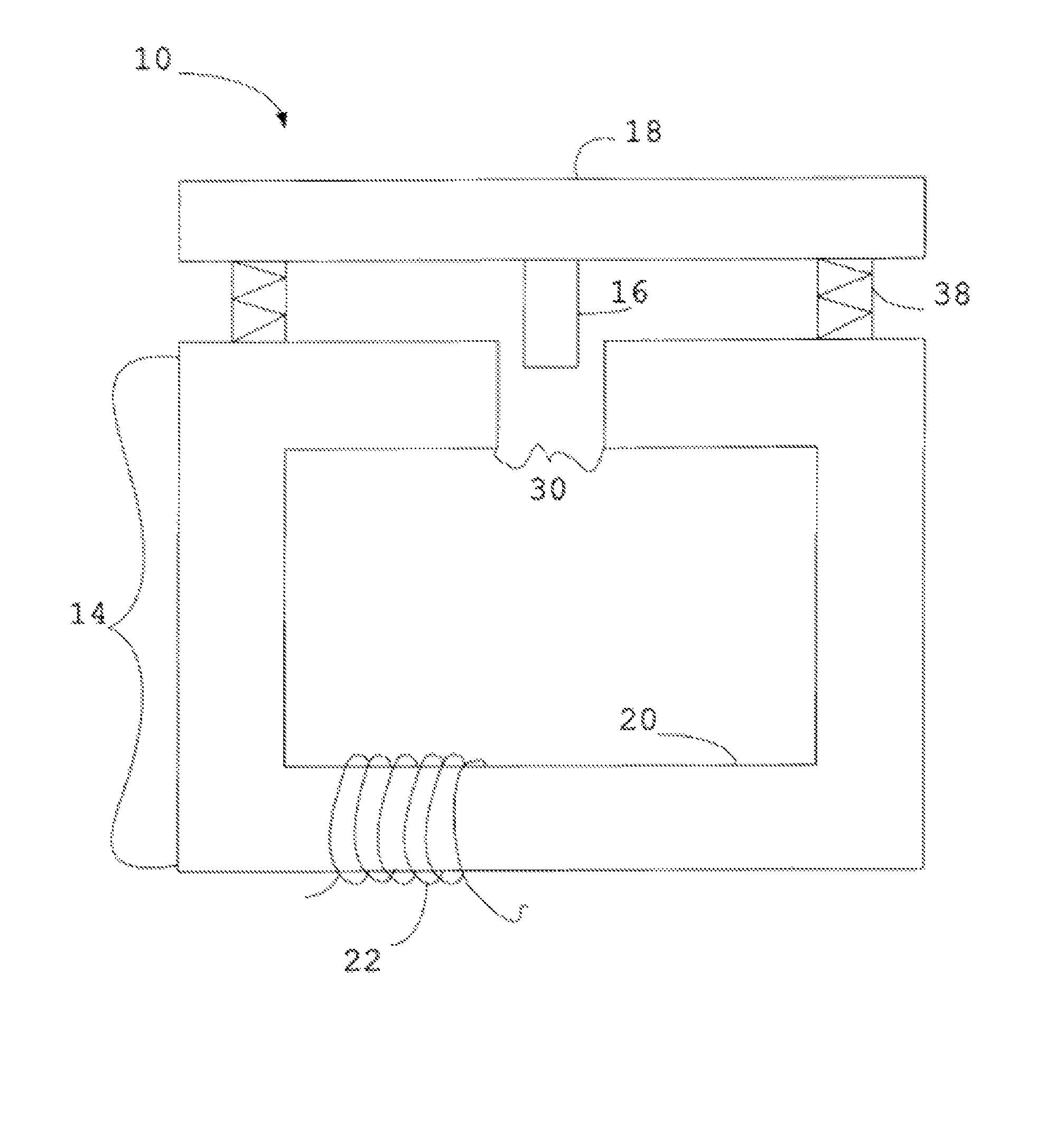

The invention provides an actuator for actuating a pallet of a pipe organ under the command of a key of an organ. The actuator comprises a movable member, adapted to be connected to the pallet of the organ pipe and a magnetic plunger, mounted on the movable member. It also comprises an electromagnet having a gap within which the magnetic plunger can be inserted and moved, wherein the electromagnet when energized moves the member to thereby actuate the pallet. A controller unit controls a current in the electromagnet to provide a controlled actuation of the pallet that is proportional to a key dip of the key. It also provides for a system based on a digital serial link for controlling an assembly of organ pallets that are actuated by electromagnets.
First Claim
Other Claims data not available
