Papermaking belt
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2012
Grant Date -
Apr 15, 2010
app pub date -
Dec 12, 2007
filing date -
Dec 22, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

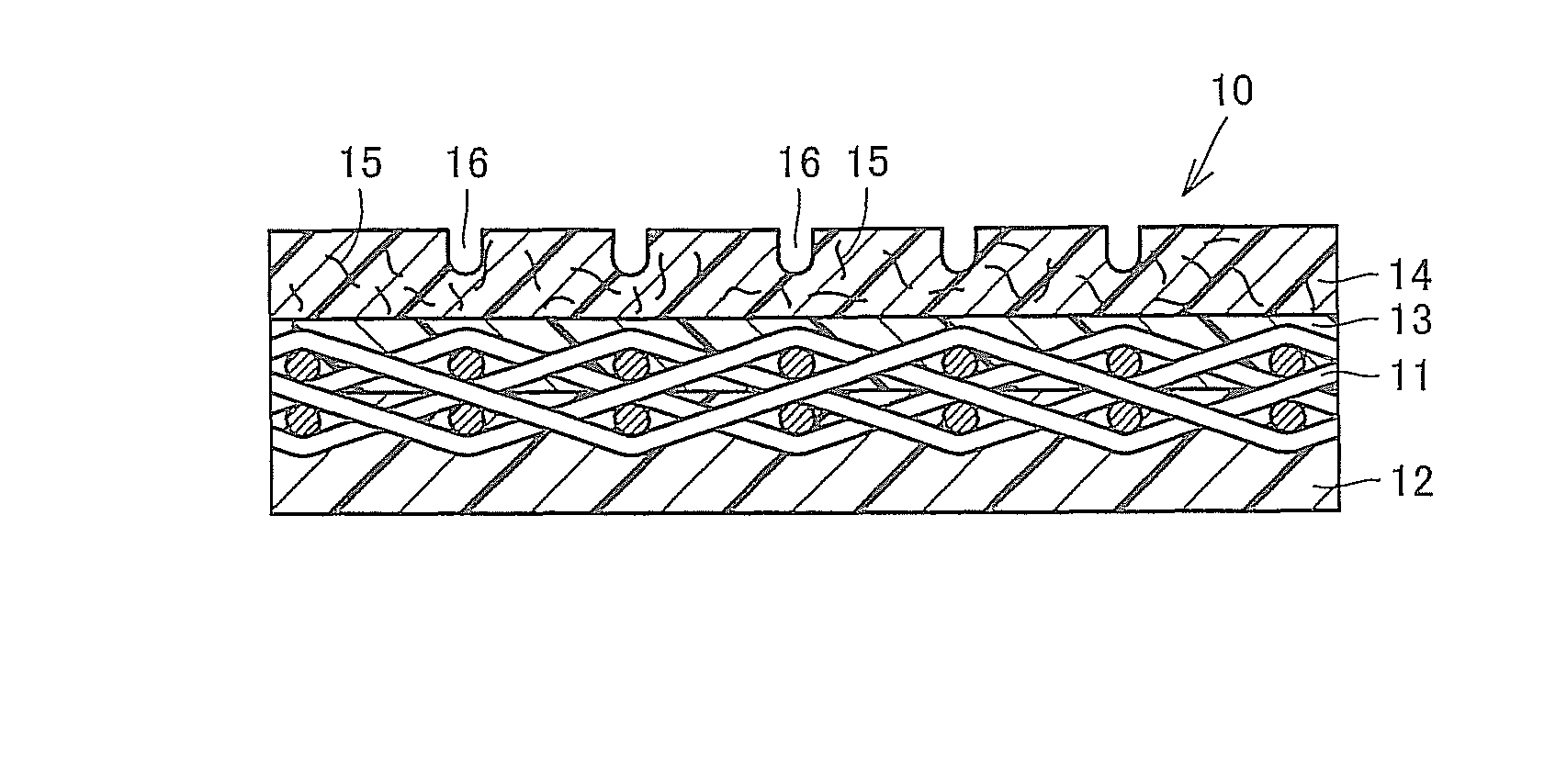

A papermaking belt 10 includes: a base material layer 11 including longitudinal and lateral yarns; a back-surface-side resin layer 12 which is provided on a back surface side of the base material layer, and at least a part of which has impregnated into the base material layer from the back surface side of the base material layer; a first resin layer 13 which has a relatively low viscosity, and has impregnated into the base material layer 11 from a front surface side of the base material layer 11; and a second resin layer 14 which contains chopped fibers 15 in a dispersed state, has a higher viscosity than that of the first resin layer 13, and is provided on a front surface side of the first resin layer 13.
First Claim
Other Claims data not available
