Bypass gas lift system for producing a well
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2012
Grant Date -
Feb 11, 2010
app pub date -
Aug 11, 2009
filing date -
Oct 12, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

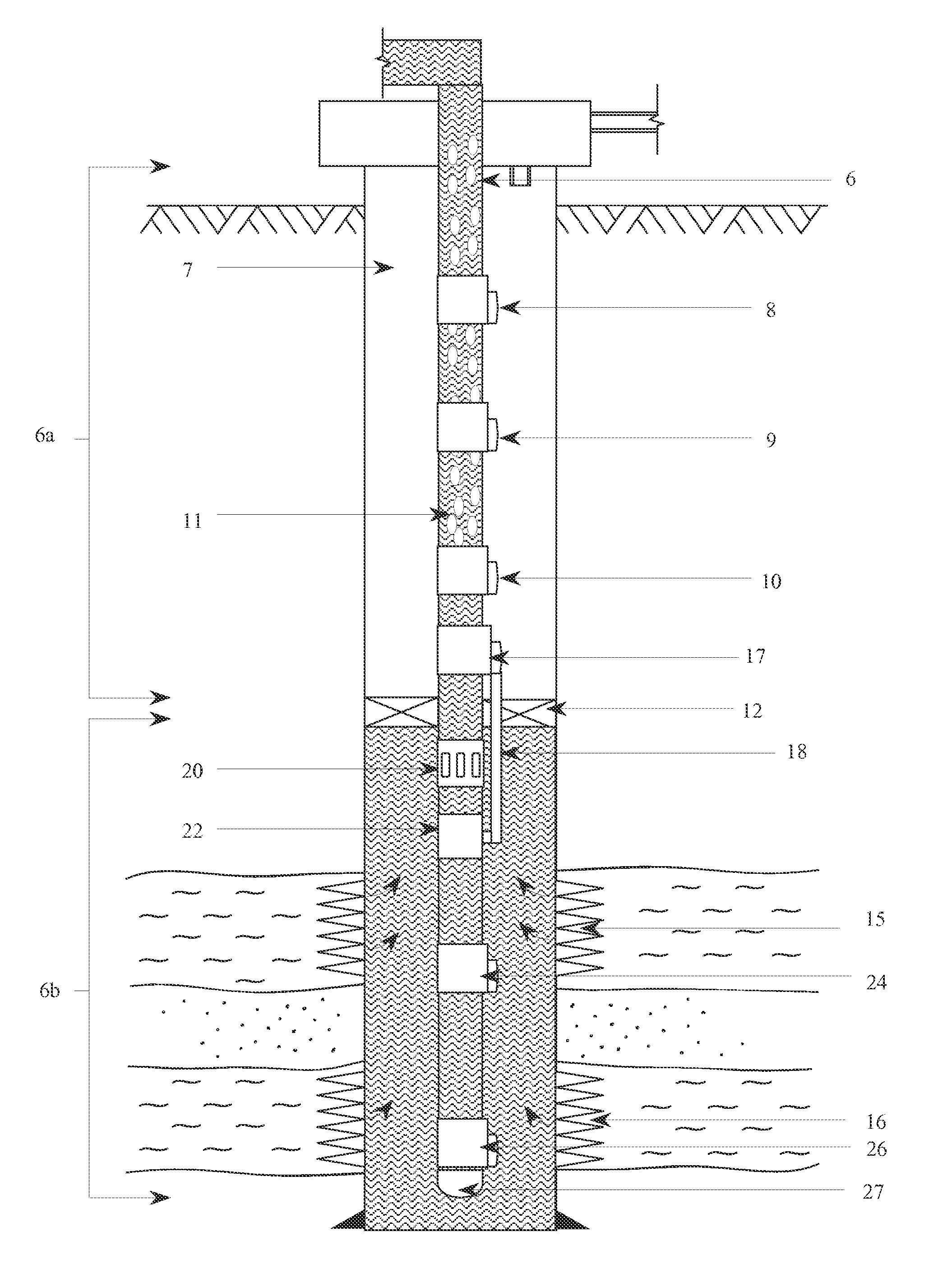

A completion system delivers lifting gas supplied from the surface via a casing annulus through the packer for injecting to the wellbore at bottom hole. So, lifting gas maximizes hydrocarbon producing from a subterranean well while maintaining integrity and serviceability as a typical gas lift well. More specifically, a single completion system uses the same tubing string for both producing the well and delivering lifting gas to the wellbore at downhole. The top section of the tubing is used for producing the well, while the bottom section of the tubing is used for delivering lifting gas for injecting at bottom hole. The lifting gas will be injected to the wellbore proximately at perforation intervals for helping unloading liquid and producing the well. The use of modified equipment named “TK Bypass Mandrel” and “JP Bypass Nipple Sub” allows delivering and controlling of the lifting gas for injecting at bottom hole via a single tubing string.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US7770637 | Oct 12, 2007 |
International Classification(s)
- 2009 Application Filing Year
- E21B Class
- 2047 Applications Filed
- 1662 Patents Issued To-Date
- 81.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E21B Class
- 0 % this patent is cited more than
- 13 Age
