Resistive frequency mixing apparatus and signal processing method using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2012
Grant Date -
Jul 16, 2009
app pub date -
Oct 27, 2008
filing date -
Jan 16, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

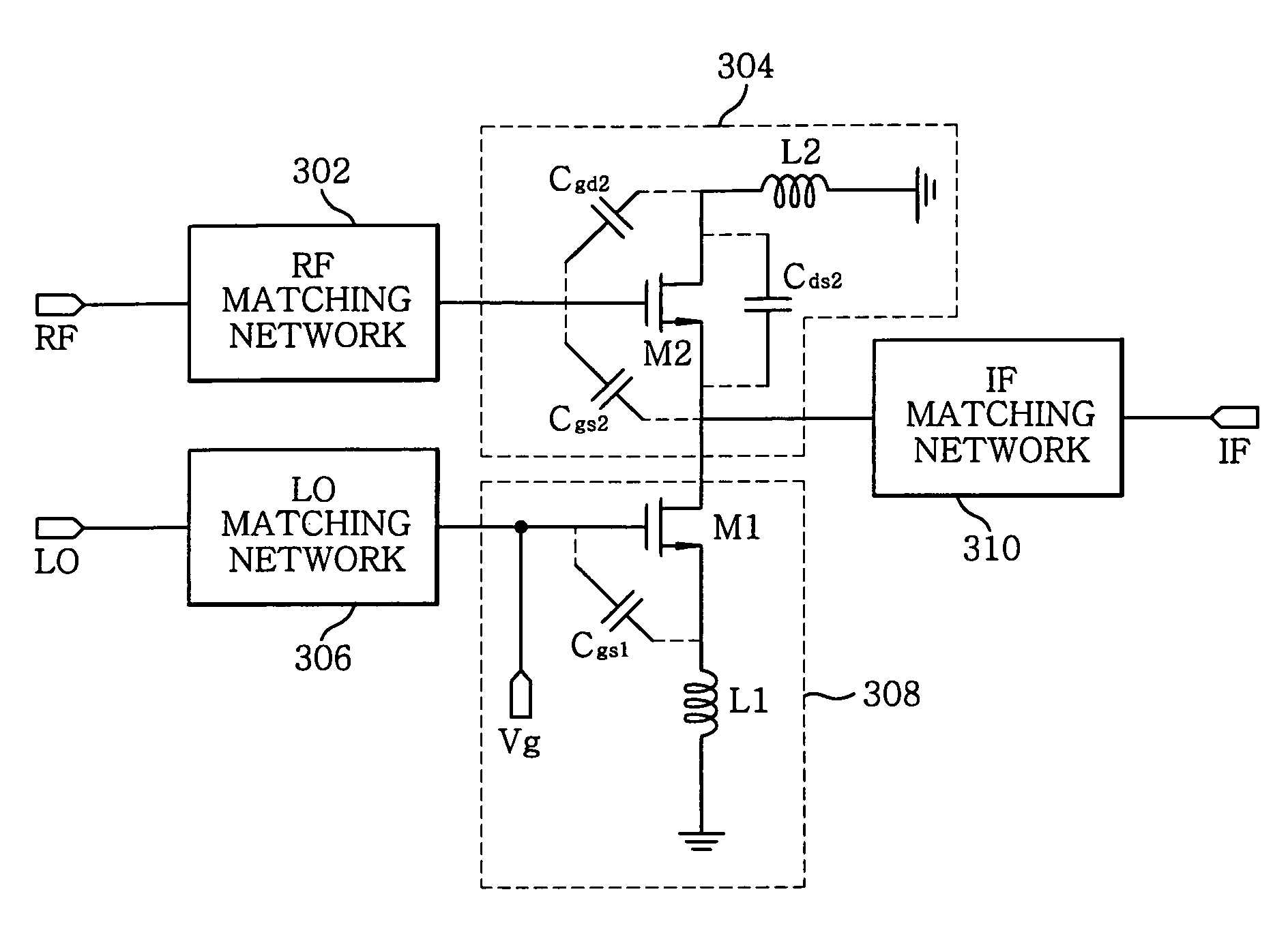

A resistive frequency mixing apparatus includes a first frequency mixer having a source follower FET, and a second frequency mixer having a common source FET. The resistive frequency mixing apparatus perform a frequency mixing of an RF depending on an LO signal to generate a down-converted IF signal when the RF signal is applied to the source follower FET and the LO signal is applied to the common source FET. Further, the resistive frequency mixing apparatus performs a frequency mixing of an IF signal depending on an LO signal through the use of the source follower FET to produce an up-converted RF signal when the IF signal is applied to the common source FET and the LO signal is applied to the common source FET.
