Carrier device for machine tools
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 22, 2012
Grant Date -
Sep 29, 2011
app pub date -
Jan 13, 2011
filing date -
Jul 25, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

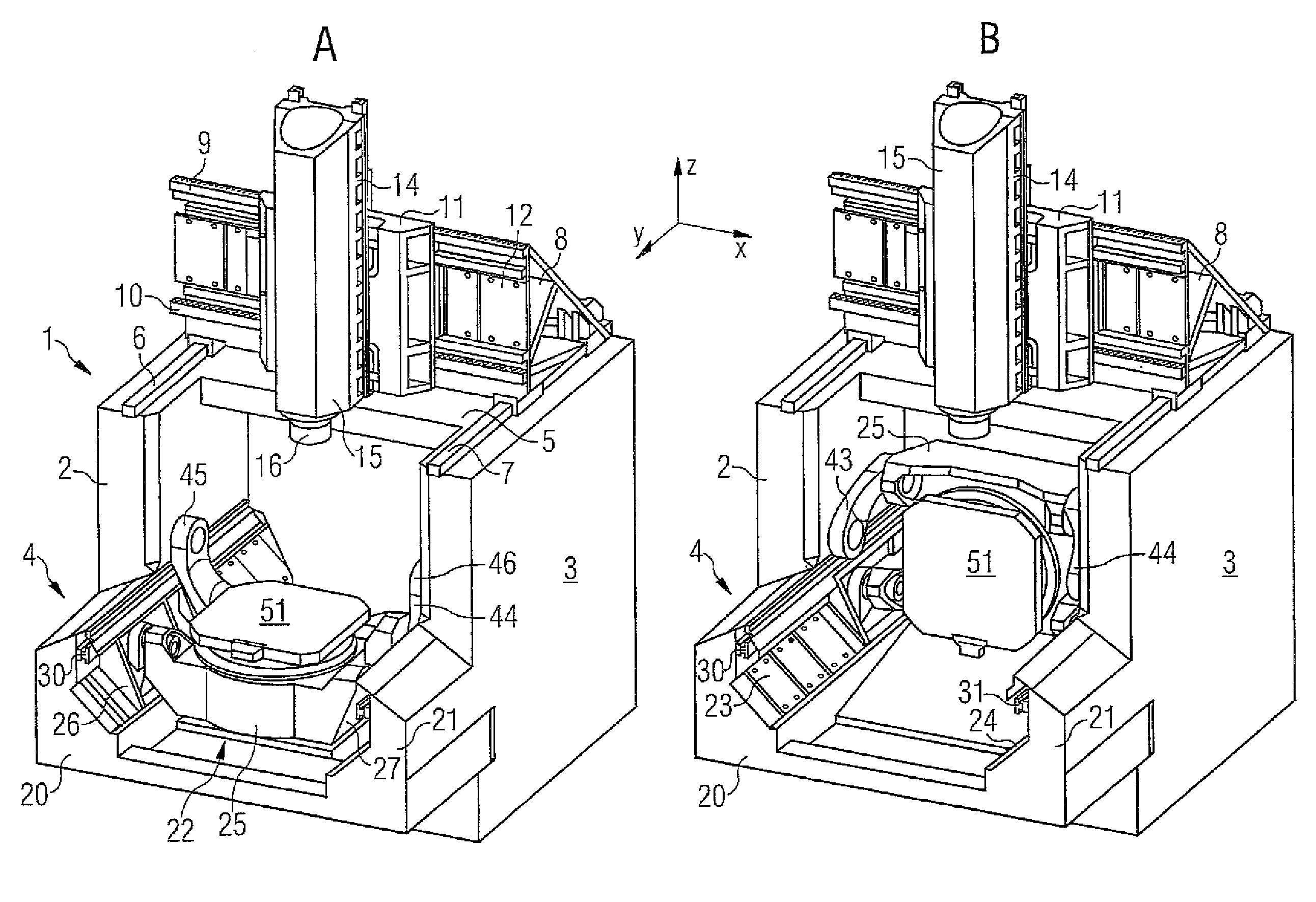

A machine tool having a carrier device for workpieces or tools or tool spindles. A console supports the carrier and can be pivoted about a first axis (X) from the horizontal into the vertical position and beyond. The console is pivotably housed on carriages guided in the machine body. The carrier for a workpiece, a tool, or a tool spindle is arranged on the console, and a drive device is provided for the synchronous displacement of the carriages on guide rails fixed on the machine tool. The console is hinged via two crank-like arms to the stationary machine body in addition to being supported on both carriages to form a kniematic coupling.
