Semiconductor device and manufacturing method therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2012
Grant Date -
Mar 10, 2011
app pub date -
Nov 17, 2010
filing date -
Dec 14, 2004
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

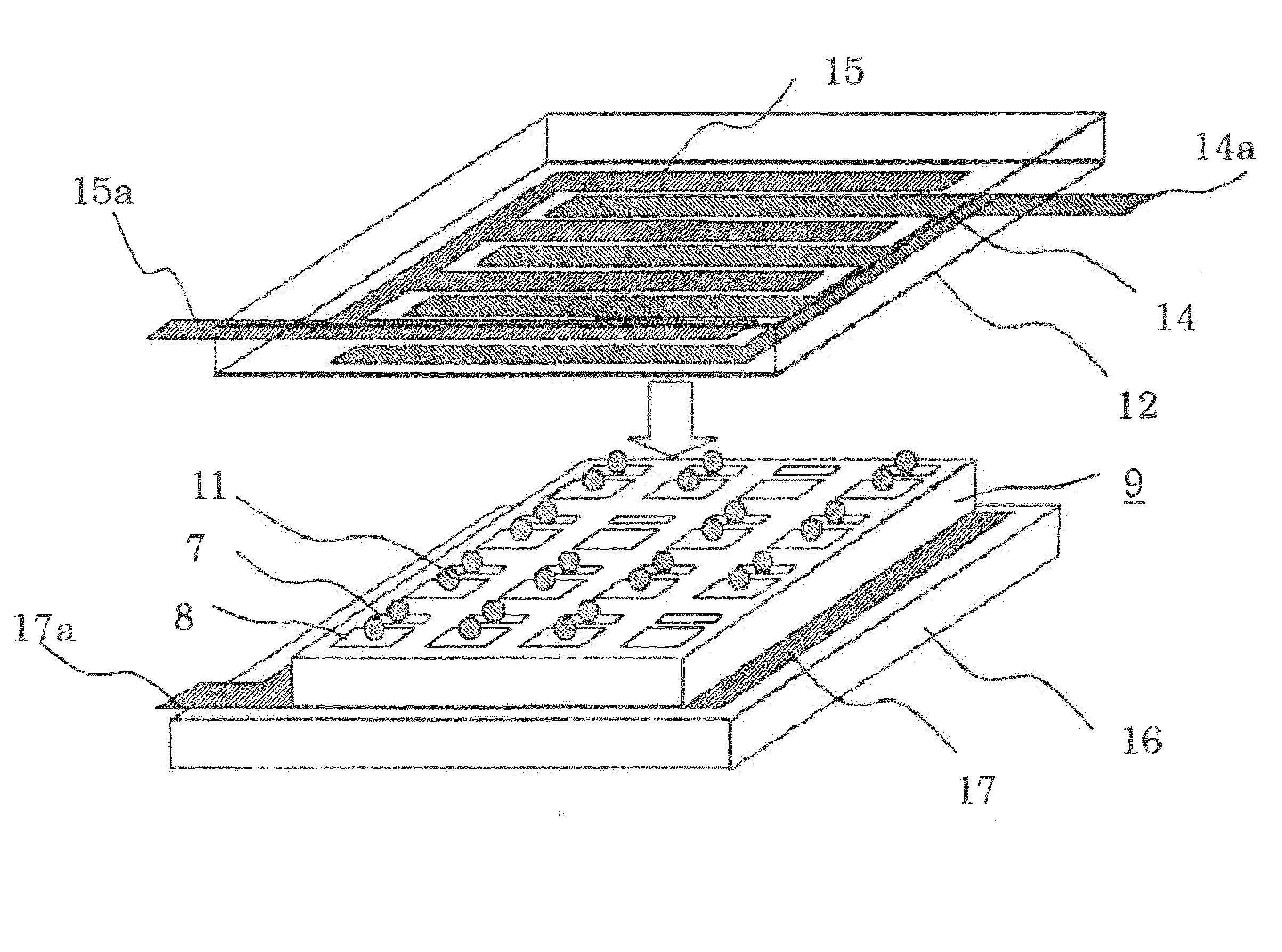

A semiconductor device is obtained, in which excellent characteristics are achieved, the reliability is improved, and an SiC wafer can also be used for the fabrication. A plurality of Schottky-barrier-diode units 10 is formed on an SiC chip 9, and each of the units 10 has an external output electrode 4 independently of each other. Bumps 11 (the diameter is from several tens to several hundreds of μm) are formed only on the external output electrodes 4 of non-defective units among the units 10 formed on the SiC chip 9, meanwhile bumps are not formed on the external output electrodes 4 of defective units in which the withstand voltage is too low, or the leakage current is too much. Because the bumps are not formed on the defective units, Schottky-barrier-side electrodes 3 are connected in parallel to the exterior of the device through the bumps 11, and a wiring layer 13 and an external lead 13a of a wiring substrate 12; thus, only the external output electrodes 4 of the non-defective units 10 are connected in parallel with each other.
