System to determine in near real-time product density in a continuous dispensing product flow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 8, 2012
Grant Date -
Aug 19, 2010
app pub date -
Feb 16, 2010
filing date -
Feb 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

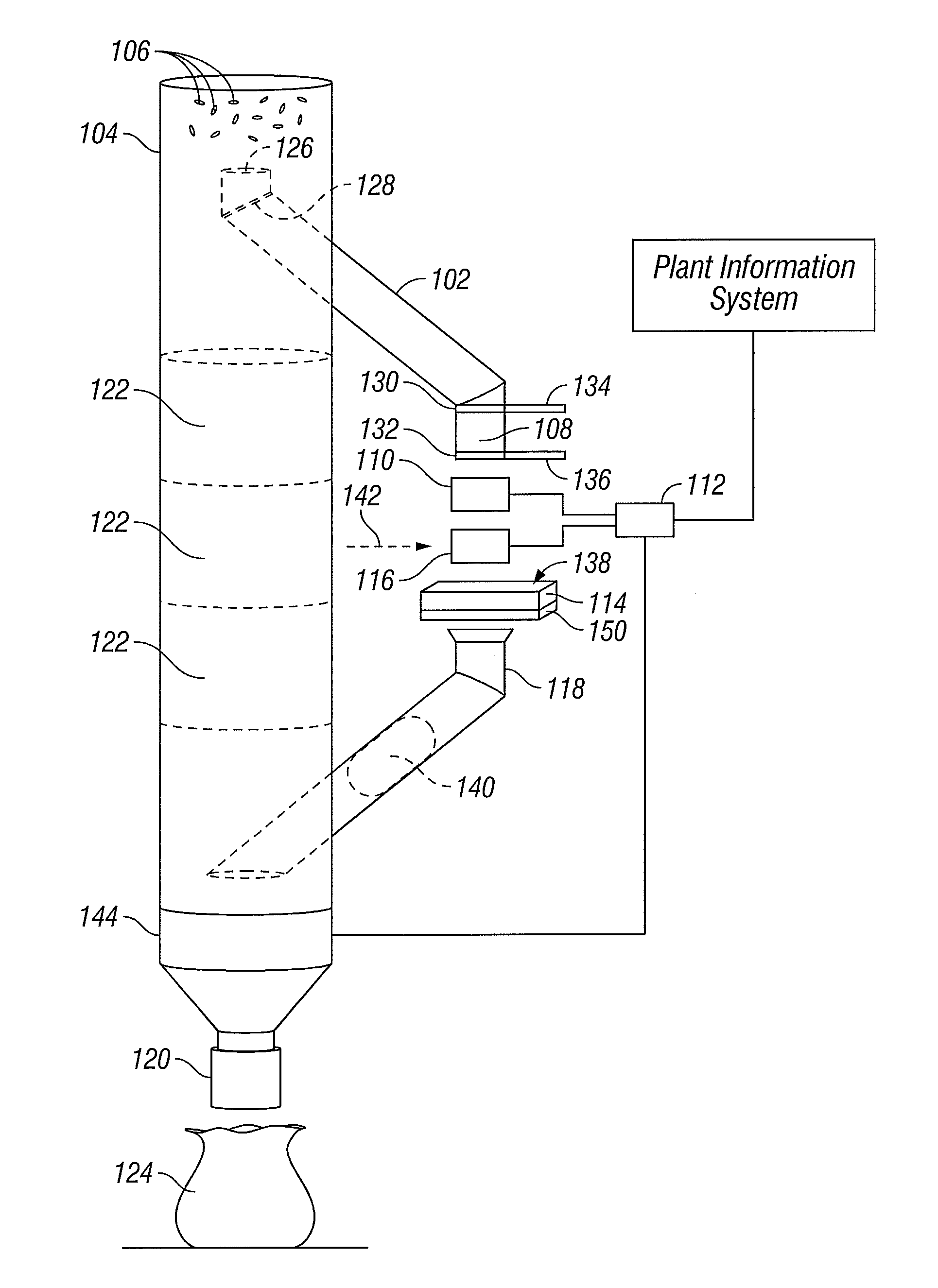

A system for determining in near real-time the product density value of a zone of preferable small fungible products within an acceptable size range in a flow of products includes a sample input piping from a bin or piping of products, a sampling volume for fixing the size of a sample, a scale, a processor, an imaging table and an associated camera. The system may include a sample output pipe, and may include or be associated with a bagger/scale. Operation of these components provides for successively sampling of each zone in the bin to determine the quantity of acceptable product per unit weight and to control the flow of those products. The system therefore can compensate for variations among supplying entities where product supplies are subsequently piled atop one another. The system makes the density calculation available to the plant information system and an automated packaging system, which may be via a 16 bit scaled analoge or a serial interface, among other systems. In addition the image information is stored for future analysis, audit support, and process improvement activities.
First Claim
Other Claims data not available
