Dual chamber orifice fitting plate support
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2012
Grant Date -
Sep 16, 2010
app pub date -
May 24, 2010
filing date -
May 19, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

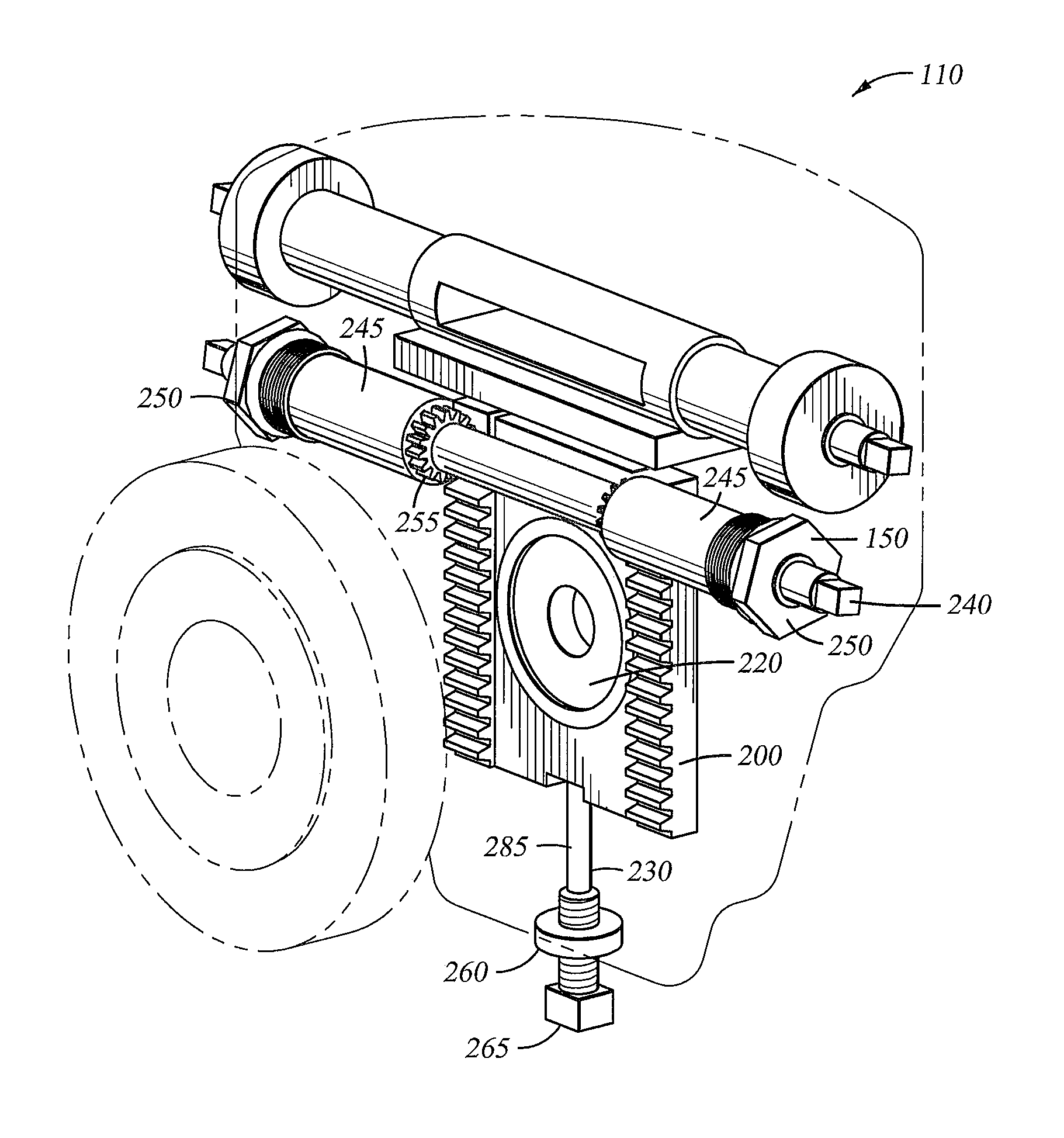

Methods and apparatus for positioning an orifice plate within a body having a straight flowbore. One embodiment includes a carrier supporting the orifice plate and a drive member operable to engage the carrier and move the carrier along a first axis perpendicular to the flowbore. The drive member is also operable to limit the movement of the carrier along a second axis perpendicular to the flowbore and perpendicular to the first axis. A pin is operable to engage the carrier so as to limit movement along the first axis.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 7.40 % this patent is cited more than
- 13 Age
