Apparatus and cartridge for storage of compressed hydrogen gas
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2012
Grant Date -
Sep 2, 2010
app pub date -
Jun 7, 2007
filing date -
Jun 12, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

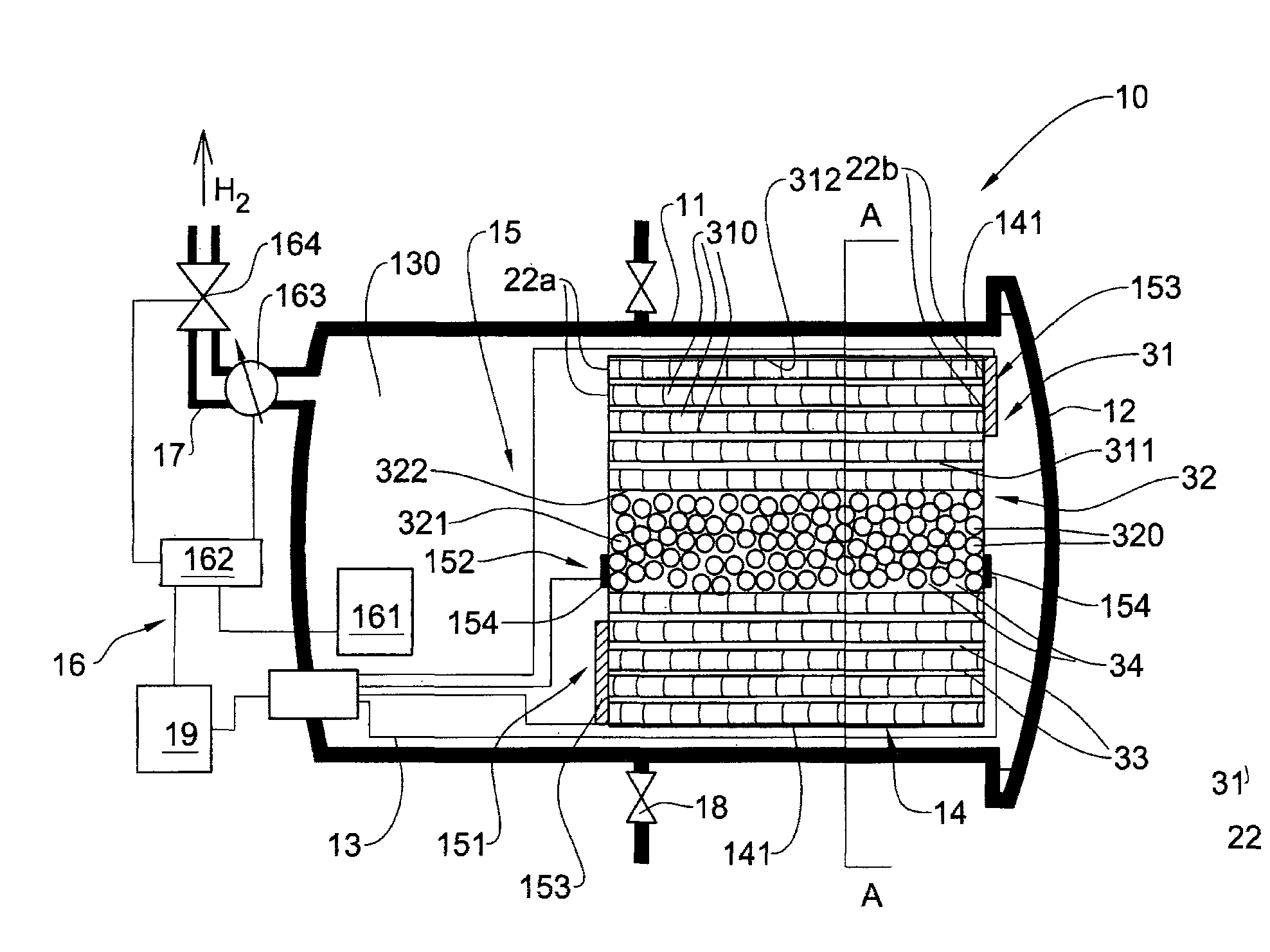

An apparatus for storage of compressed hydrogen gas is provided. The apparatus includes a sealed housing having an outlet pipe coupled to the housing and equipped with a controllable discharge valve. The sealed housing defines a chamber that includes a cartridge comprising an assembly of at least two different types of micro-containers configured for accumulating and storing said compressed hydrogen gas. The apparatus also includes a hydrogen liberating tool configured for controllable liberating the hydrogen gas from the cartridge into a volume of the chamber that is not occupied by the cartridge. The apparatus is controlled by a control system operatively coupled to the controllable discharge valve and the hydrogen liberating tool, and configured for controlling operation thereof.
First Claim
Other Claims data not available
