Wheeled work machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2012
Grant Date -
May 28, 2009
app pub date -
Sep 7, 2006
filing date -
Sep 29, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

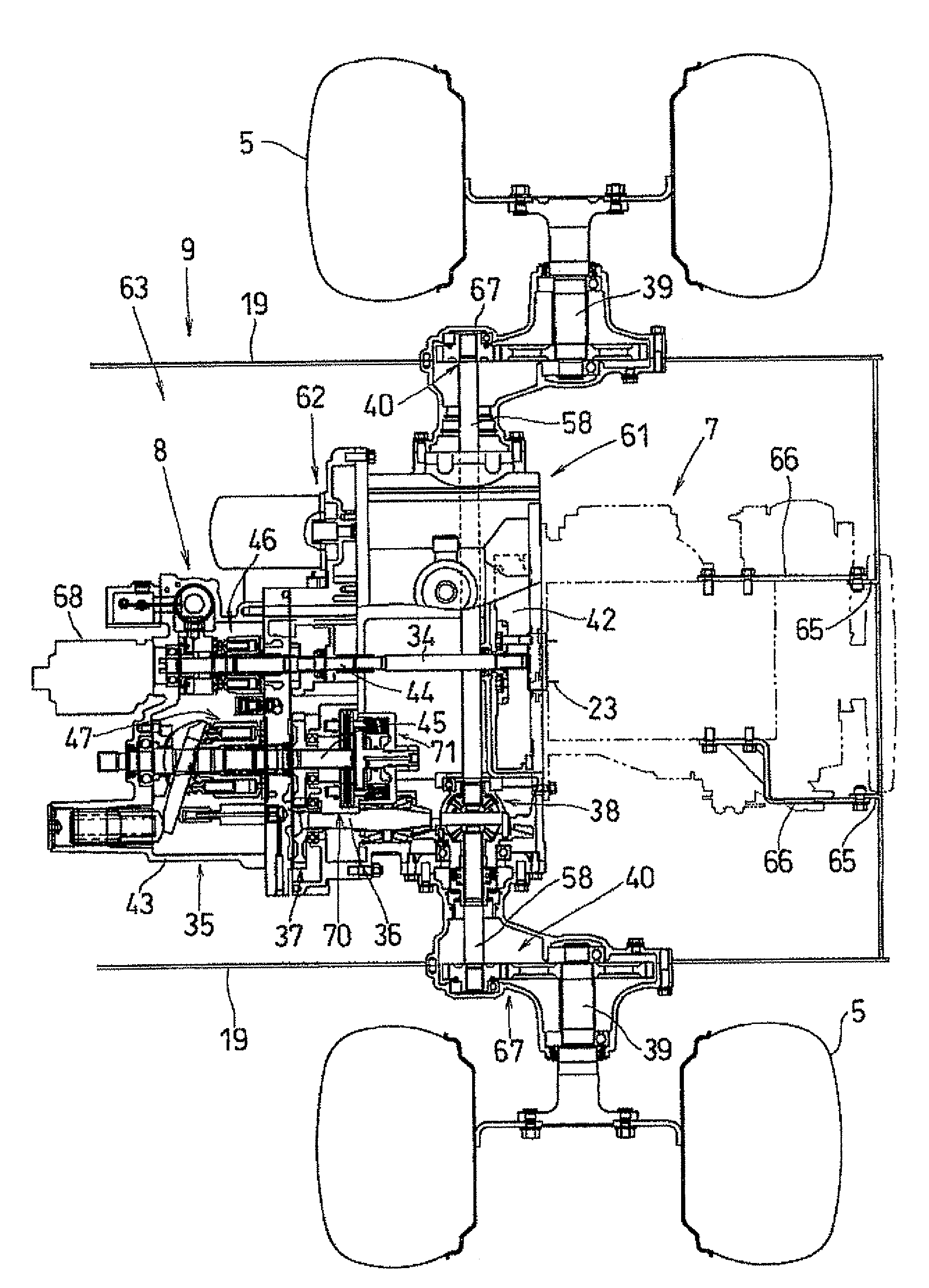

A wheel type work machine having improved ease of assembly and a compact-sized traveling system power transmission mechanism. The wheeled work machine comprises a traveling body (2) having an engine (7) mounted at the rear of a machine frame (6) supported by front and rear wheels (4, 5) and the traveling system power transmission mechanism (8) for transmitting power from the engine (7) to the rear wheels (5). The traveling system power transmission mechanism (8) comprises a rear wheel differential device (38) disposed on the front side of the engine (7), a hydrostatic transmission (35) disposed on the front side and the rear wheel differential device and receiving the power from the engine (7), and a mechanical transmission device (37) disposed between the hydrostatic transmission (35) and the rear wheel differential device (38) and transmitting the power from the hydrostatic transmission (35) to the rear wheel differential device (38). The rear wheel differential device (38), the mechanical transmission device (37), and the hydrostatic transmission (35) are formed integrally with the engine (7).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60K Class
- 3.08 % this patent is cited more than
- 13 Age
