Vibration severity monitor to control press operating shutheight and process operating conditions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2012
Grant Date -
Jun 30, 2011
app pub date -
Jul 17, 2007
filing date -
Jul 17, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

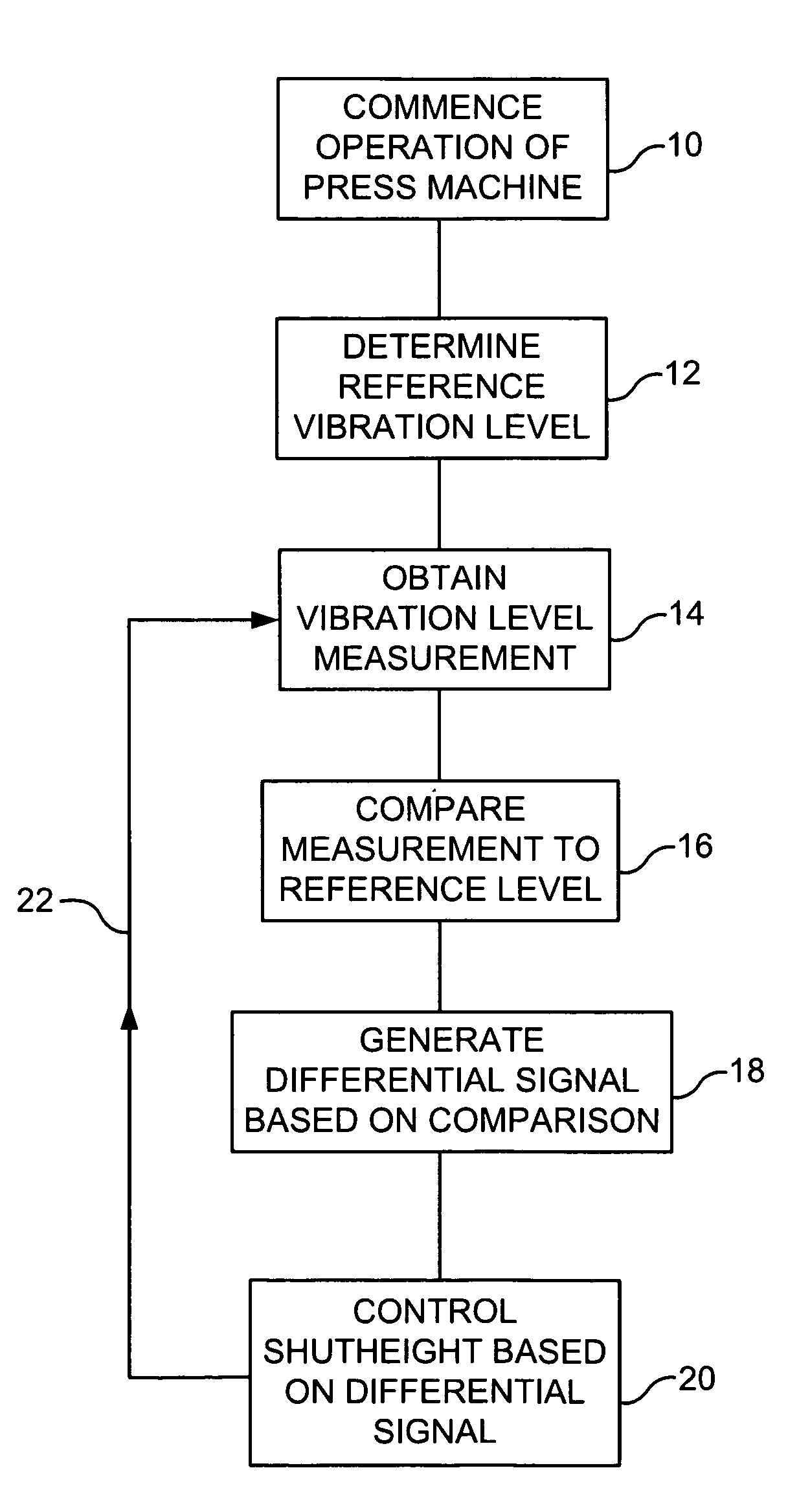

A system monitors vibration activity in a press machine environment and generates a signal indicative of vibration level severity. An accelerometer can provide measured peak acceleration data that serves as an indication of vibration level. The vibration measurement, is compared to a reference vibration level that corresponds to a run condition of desired operating parameters. A controller controls the press machine shutheight in accordance with the differential expressed in the comparison result. The consequent shutheight adjustment effects a change in the vibration activity that acts as a correction to the deviation in vibration behavior expressed by the differential.
First Claim
Other Claims data not available
