Apparatus and method for a pipe handler
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 17, 2012
Grant Date -
N/A
app pub date -
Jan 30, 2008
filing date -
Jan 30, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

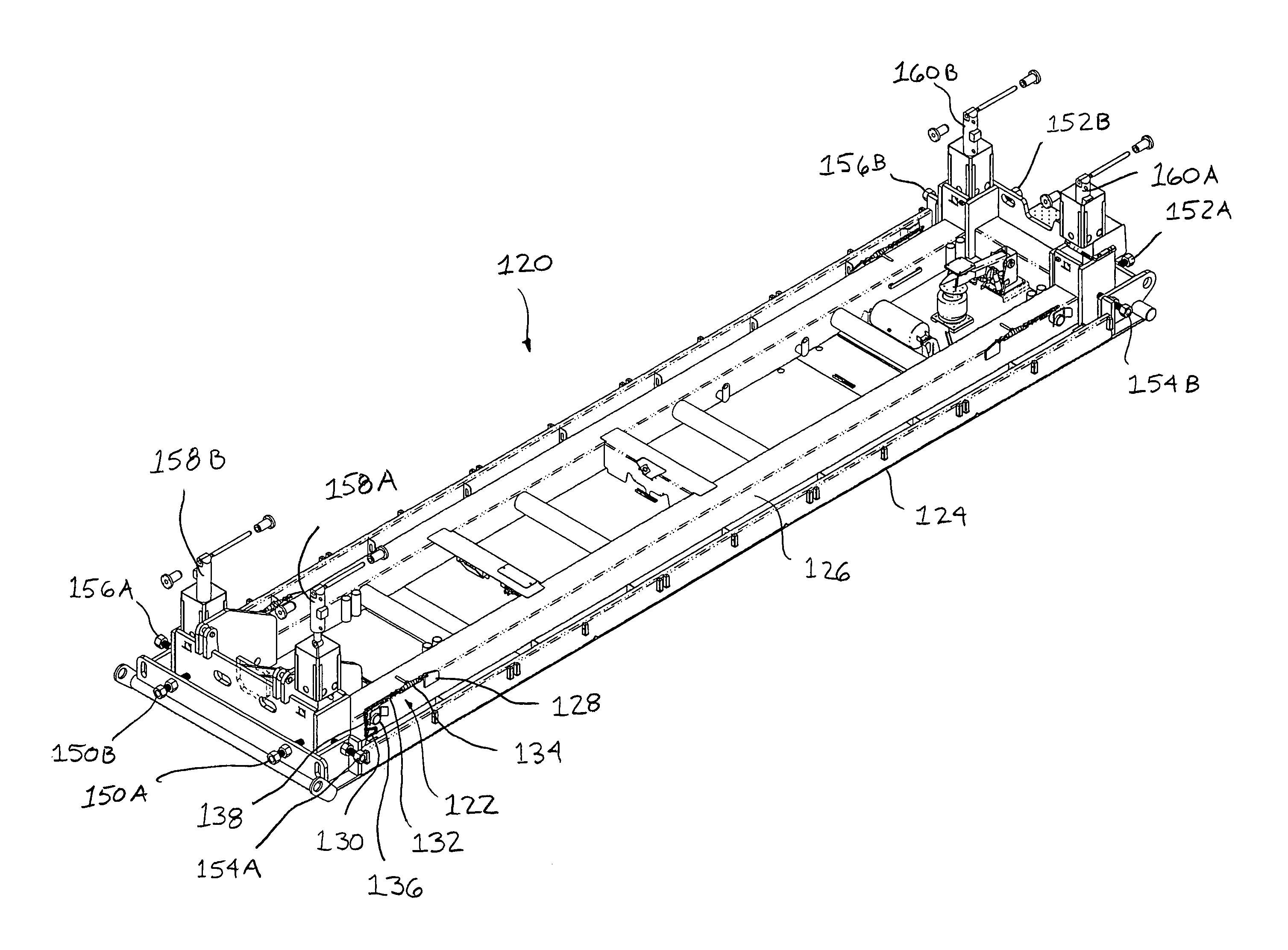

A pipe handler comprising a skid and a base having a base longitudinal axis. The base is adjustably mounted on the skid. The pipe handler comprises a means for adjusting the base, a boom, and a means for moving the boom between a position substantially parallel to the base longitudinal axis and a position substantially perpendicular to the base longitudinal axis. The pipe handler includes a pipe gripper that is pivotally attached to the boom. The base of the pipe handler is adapted to be adjusted in any direction relative to the skid when the boom is in any position from substantially parallel to the base longitudinal axis to substantially perpendicular to the base longitudinal axis. The method also includes engaging a pipe with a pipe gripper, moving the boom in a direction toward a pipe rotation mechanism, adjusting the base, and releasing the pipe from the pipe gripper.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- E21B Class
- 49.22 % this patent is cited more than
- 13 Age
