Projectile for use in a barrel with a plurality of stacked projectiles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 17, 2012
Grant Date -
Nov 17, 2011
app pub date -
Jul 25, 2011
filing date -
Feb 21, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

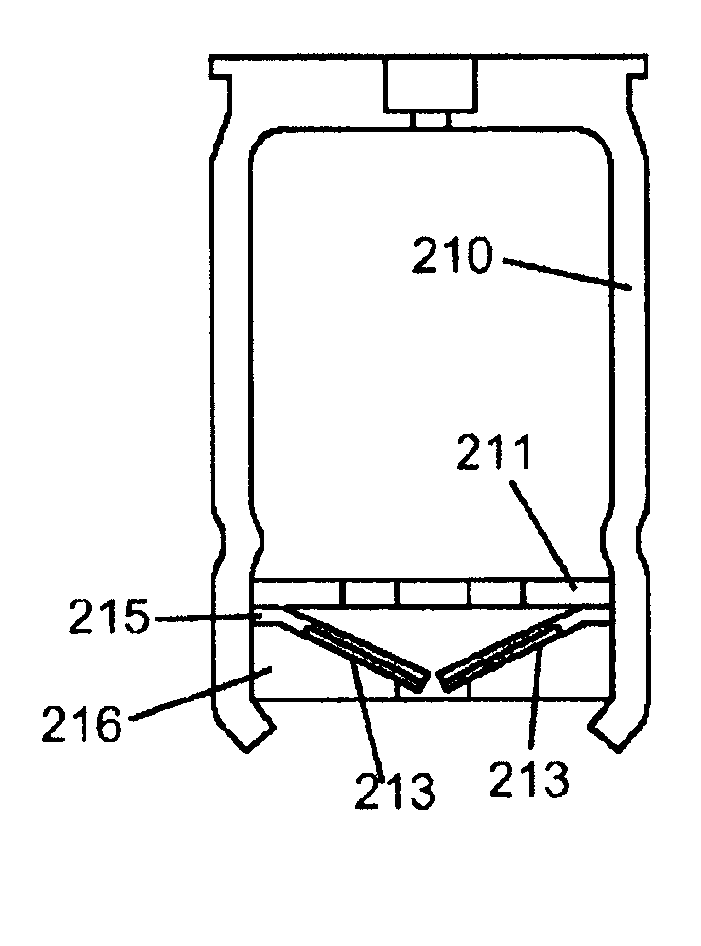

A projectile for use in a barrel with stacked projectiles, particularly for a weapon which can be reloaded by a user in the field. The projectile includes a chamber containing a propellant charge, with an exit from the chamber for release of propulsion gases into the barrel. A seal blocks the exit and is opened by ignition of the propellant within the chamber but is resistant to gases produced by ignition of propellant in other projectiles in the barrel. The exit and seal are provided in a range of different forms. The exit may be an aperture in a wall of the chamber with the seal as a moveable barrier, such as a valve-like structure, for example. The seal may also include a rupturable or deformable barrier across the aperture. Alternatively the seal is a thin barrier around the charge such as a wax coating and the exit involves a disintegrable character of the barrier. The seal may also be an inherent property of the geometry of the chamber.
First Claim
Other Claims data not available
