Powder based granules disintegrating and sizing device, and powder based granules disintegrating and sizing method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2012
Grant Date -
Apr 30, 2009
app pub date -
Dec 12, 2006
filing date -
Dec 14, 2005
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

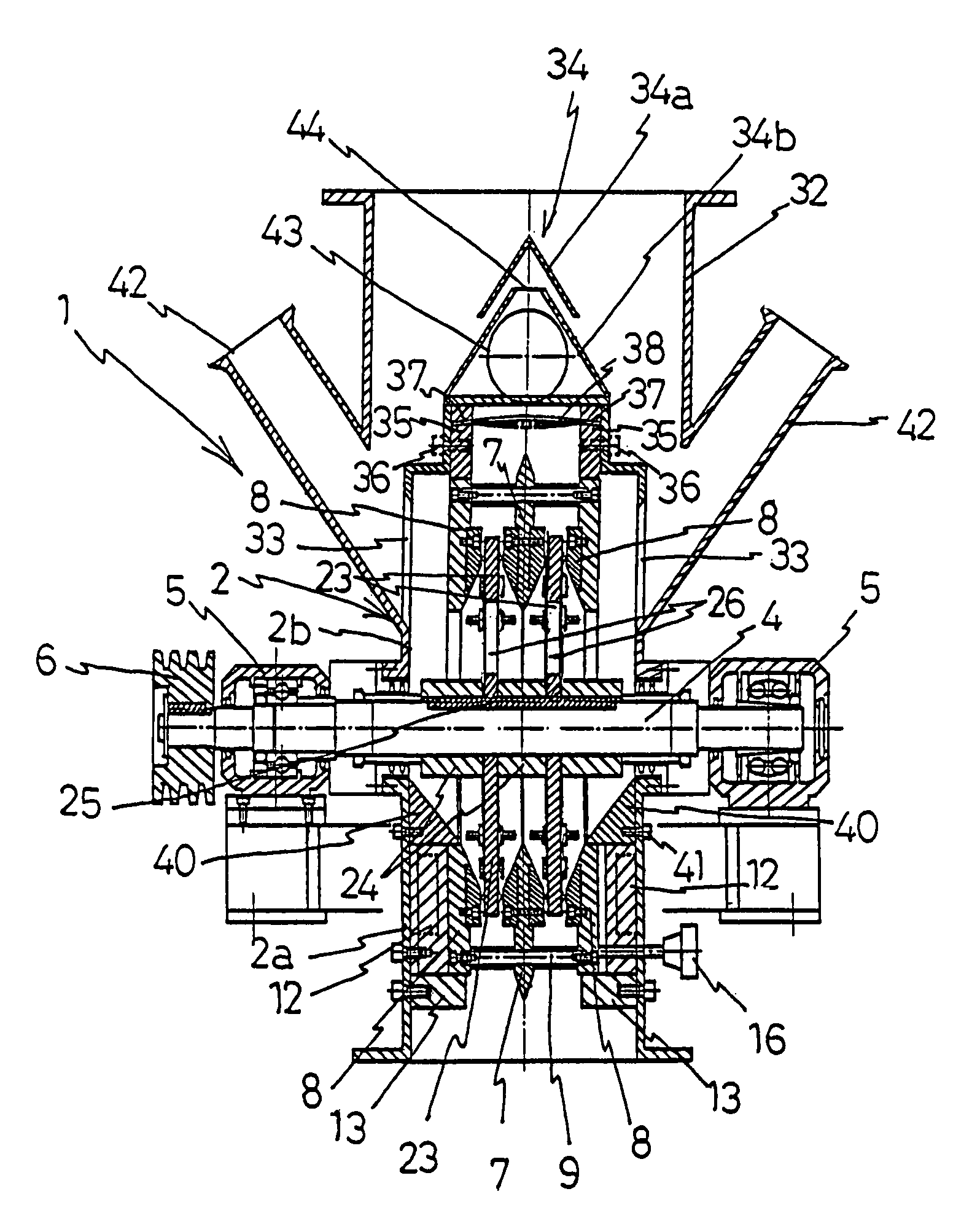

A powder based granules disintegrating and sizing device, includes: a drive shaft that is inserted horizontally in the casing main body; a plurality of circular plates that are fixedly supported at intervals by the drive shaft; and a stator, the plate surface of the circular plate and the inclined surface of the stator configuring a gap portion A where a powder based granules accumulates, and a narrowest gap portion between the circumferential edge of the circular plate and the stator configuring a disintegrating and sizing portion B. The stator stretches over the entire circumference of the circular plate, a raw material feeding port is provided on a side wall in the vicinity of the drive shaft of the casing main body, and a cutout portion through which a raw material passes is formed on the plate surface of the circular plate.
First Claim
Other Claims data not available
