Hair clipper
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2012
Grant Date -
Dec 20, 2007
app pub date -
Jun 13, 2007
filing date -
Jun 16, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

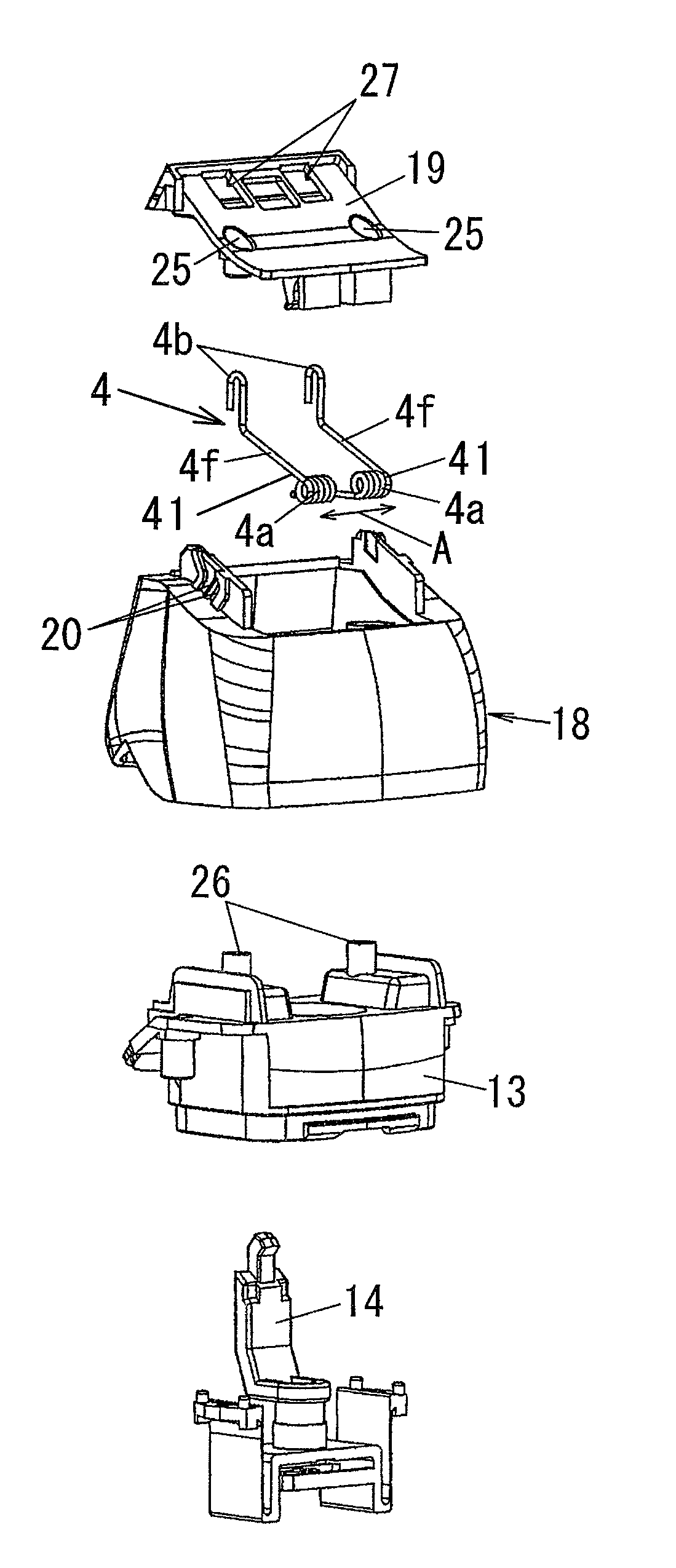

A hair clipper (1) comprises a replaceable blade block (3) having a comb-shaped stationary blade (5) and a comb-shaped moving blade (6) which is reciprocally movable in a widthwise direction of the hair clipper (1), a main body (2) having a motor (8) and a driving member (14) to transfer and to transmit a driving force of the motor (8) to reciprocal motion of the moving blade (6), and to which the blade block (3) is detachably attached, and a pressing mechanism (4) to press the moving blade (6) toward the stationary blade (5). The pressing mechanism (4) is provided on the main body (2) and has at least one contact portion (4b) which reciprocally moves in synchronism with a reciprocal motion of the moving blade (6).
First Claim
Other Claims data not available
