Gripper system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 2012
Grant Date -
Jul 1, 2010
app pub date -
Dec 29, 2008
filing date -
Dec 29, 2008
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

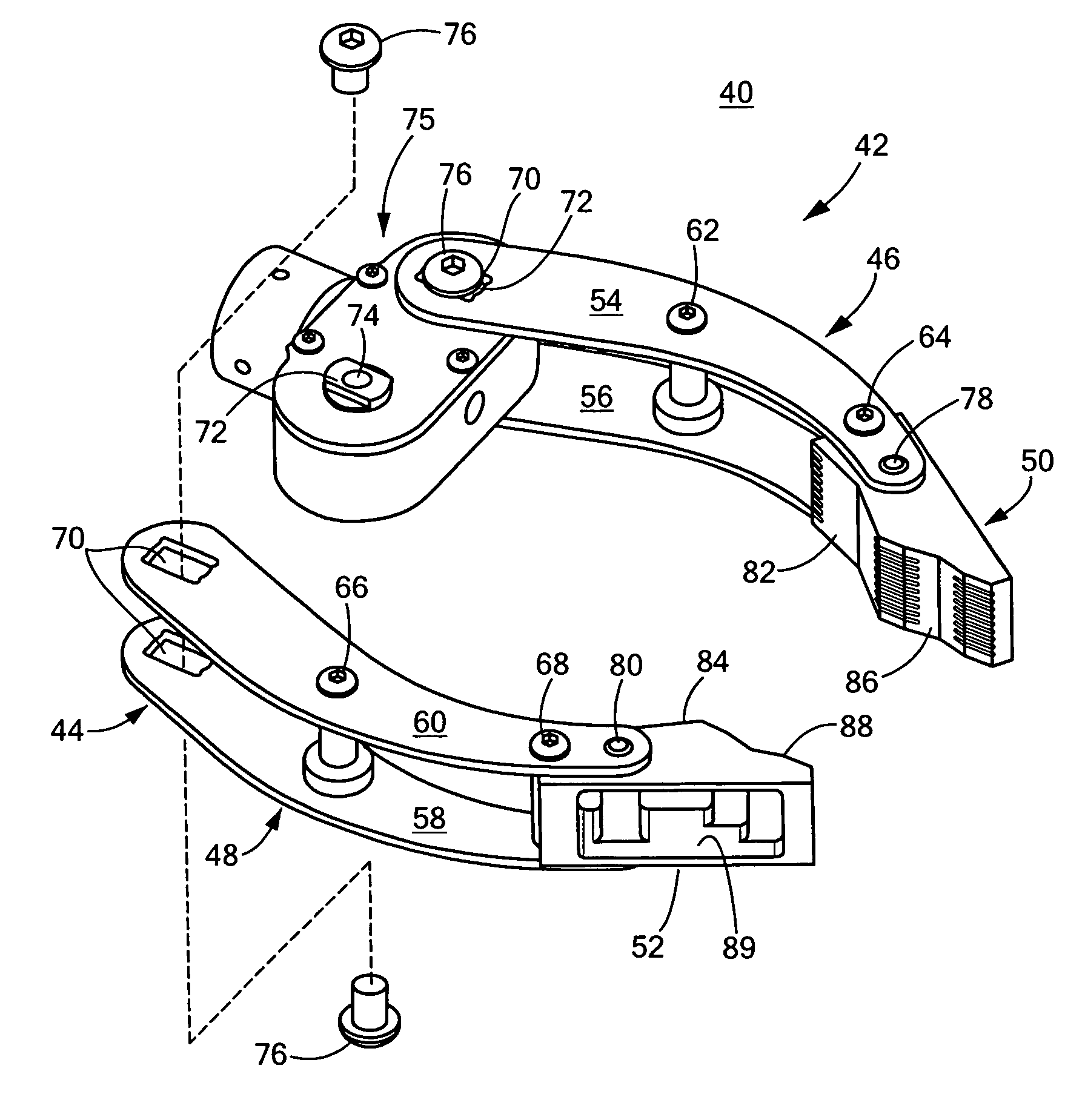

A gripper system having a pair of jaws operable in a first plane and having a central closure axis; each jaw including a finger member and finger tip member disposed on its distal end; and a gripper drive assembly for moving the jaws toward and away from each other; each finger member having a shaped inner contour for accommodating an object to be gripped; each finger tip member including an inner surface which generally aligns with the shaped inner contour for gripping a range of larger objects and an outer surface which generally aligns with the gripper central closure axis upon closure for gripping a range of smaller objects. Alternatively, each finger tip member may include a forcep element extending transversely to said plane.
First Claim
Other Claims data not available
