Hose clamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2012
Grant Date -
Feb 26, 2009
app pub date -
Oct 27, 2006
filing date -
Mar 17, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

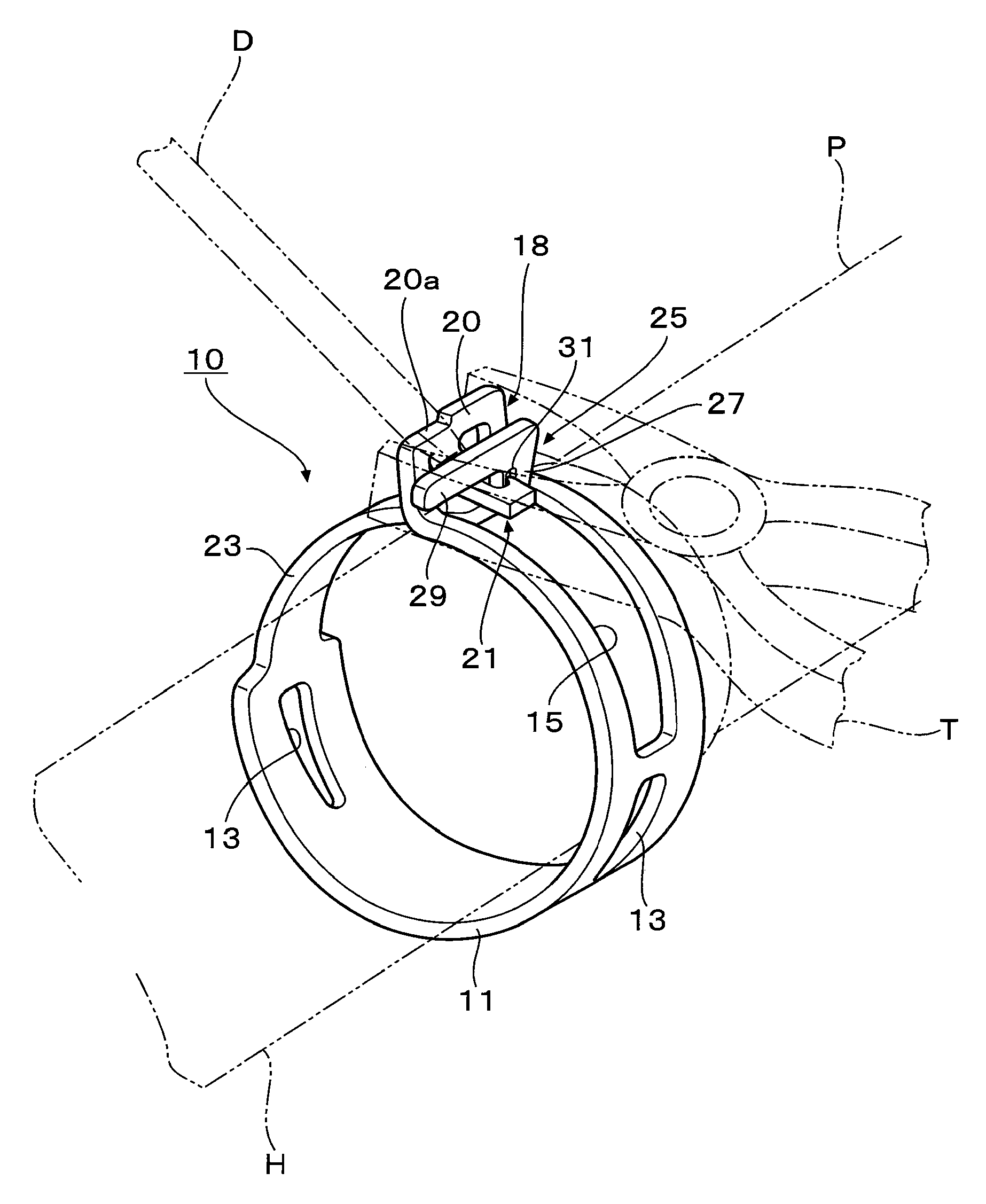

Provided is a hose clamp which is capable of reliably fastening and fixing a hose to a pipe without being affected by a layout of the hose to be fastened. The hose clamp (10) has an annular plate spring body (11), a slit (15) and a first tab (18) are formed at one end of the plate spring body (11), and an insertion section (23) and a second tab (25) are formed at another end. An engagement section (21) engaged with an opposite surface of the second tab (25) is formed at the first tab (18), and an operation section (29) extending in a width direction to be situated above the engagement section (21) is formed at the second tab (25). The engagement between the engagement section (21) and a groove (31) can be released by vertically moving the engagement section (21) and the operation section (29) away from each other by a flat head screwdriver (D) or by bringing the operation section (29) and the first tab (18) close to each other in the width direction by a plier (T).
First Claim
Other Claims data not available
