Charging device for a shaft furnace
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 28, 2012
Grant Date -
Jan 6, 2011
app pub date -
Dec 8, 2006
filing date -
Jan 20, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

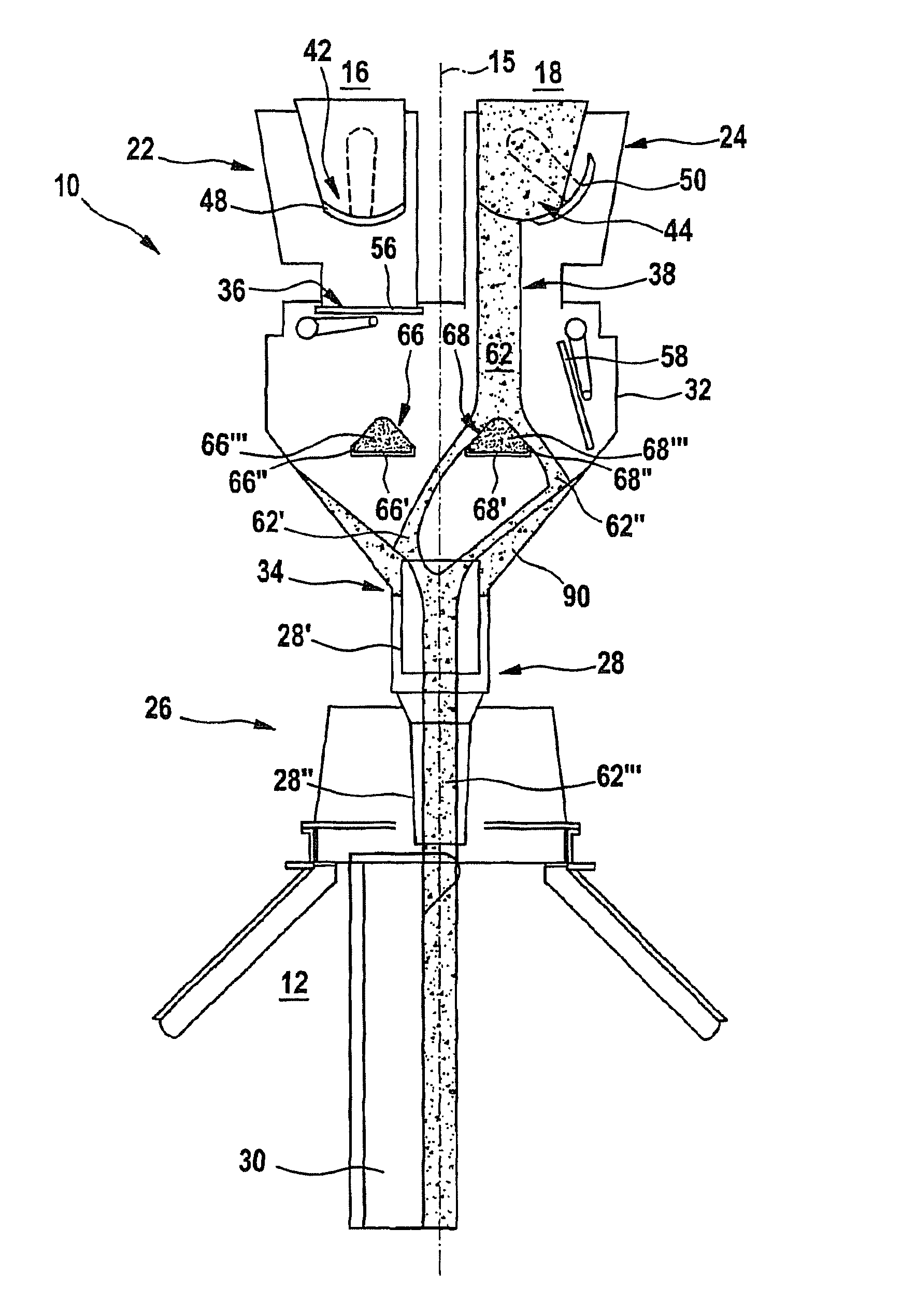

A charging device for a shaft furnace, which includes at least one charging hopper having a discharge orifice arranged in a position off-centre with respect to the central axis of the shaft furnace, and a material distribution device arranged below this hopper. The material distribution device includes a feed channel coaxial with the central axis of the furnace and a rotatable, pivotable chute, which is arranged below the feed channel for distributing a charge in the shaft furnace. The charging device also includes a connecting box in the shape of a funnel, arranged between the material distribution device and the charging hopper. The connecting box possesses a lower central outlet communicating with the charging hopper and at least one upper inlet which is arranged off-centre with respect to the central axis of the furnace and communicates with the discharge orifice of the hopper. According to the invention, the charging device includes at least one spreader situated upstream of the distribution device, on the trajectory of the material discharged from the discharge orifice. The spreader enables a flow of material to be dispersed to both sides of the feed channel.
First Claim
Other Claims data not available
