Method and apparatus for position-accurate triggering of a machine part
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 2012
Grant Date -
Jul 23, 2009
app pub date -
Oct 24, 2008
filing date -
Apr 27, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

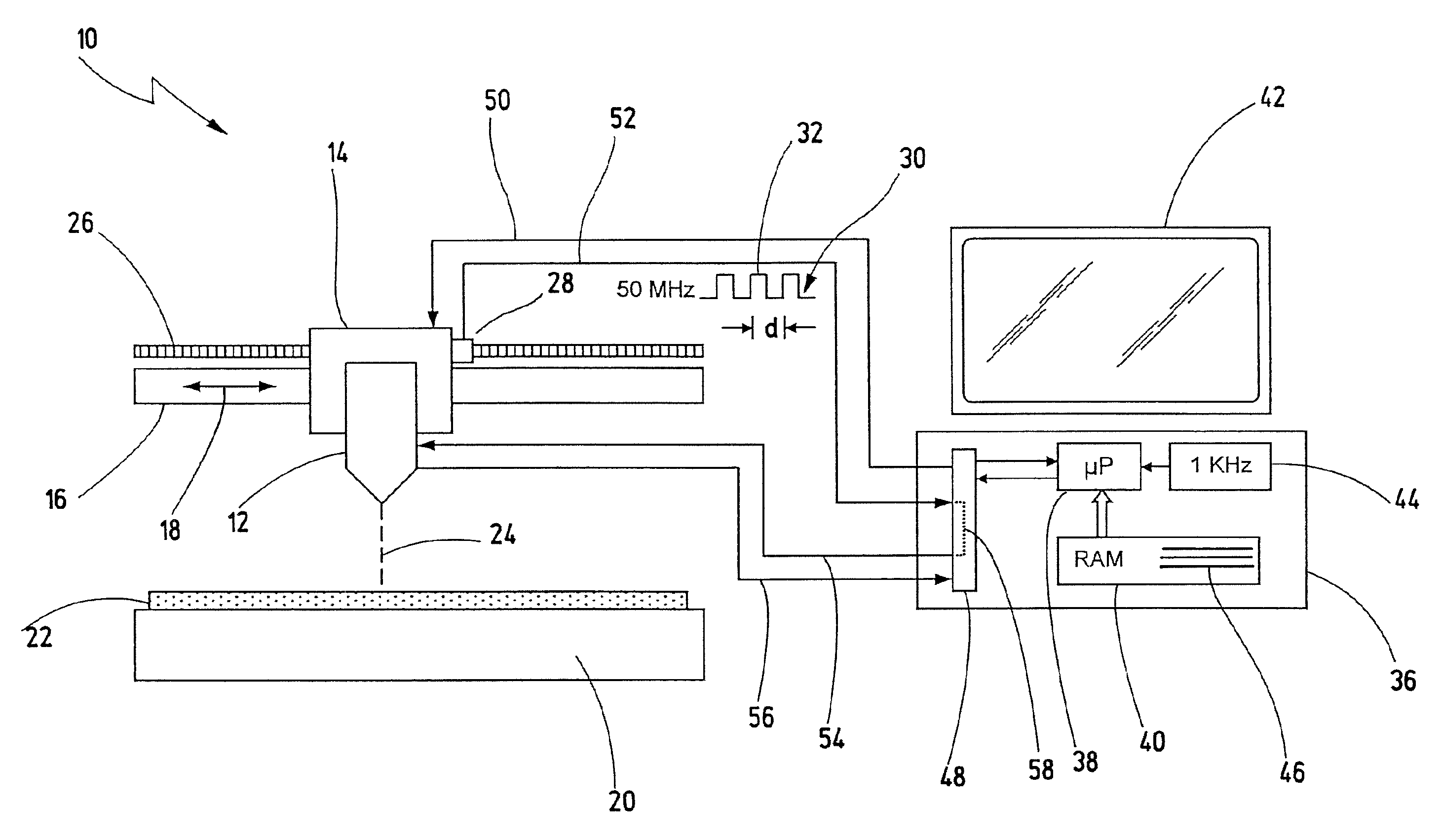

A machine part, such as a laser, is moved along at least one axis of movement relative to a workpiece. Position pulses are generated by means of an incremental encoder, with the number of position pulses in a position pulse train being representative of the movement position of the machine part. A trigger signal for the machine part is generated when the current number of position pulses corresponds to a predefined number of pulses. In a preferred embodiment, the current number of position pulses and the defined number of pulses are compared remote from a higher-level drive control circuit. It is particularly preferred if the current number of position pulses and the defined number of pulses are compared in a comparator which is arranged on an interface card of a computer unit, with the drive control circuit for controlling the movement of the machine part being implemented with a closed loop controller in the form of a controller program, which is cyclically executed by a central processor of the computer unit.
First Claim
Other Claims data not available
